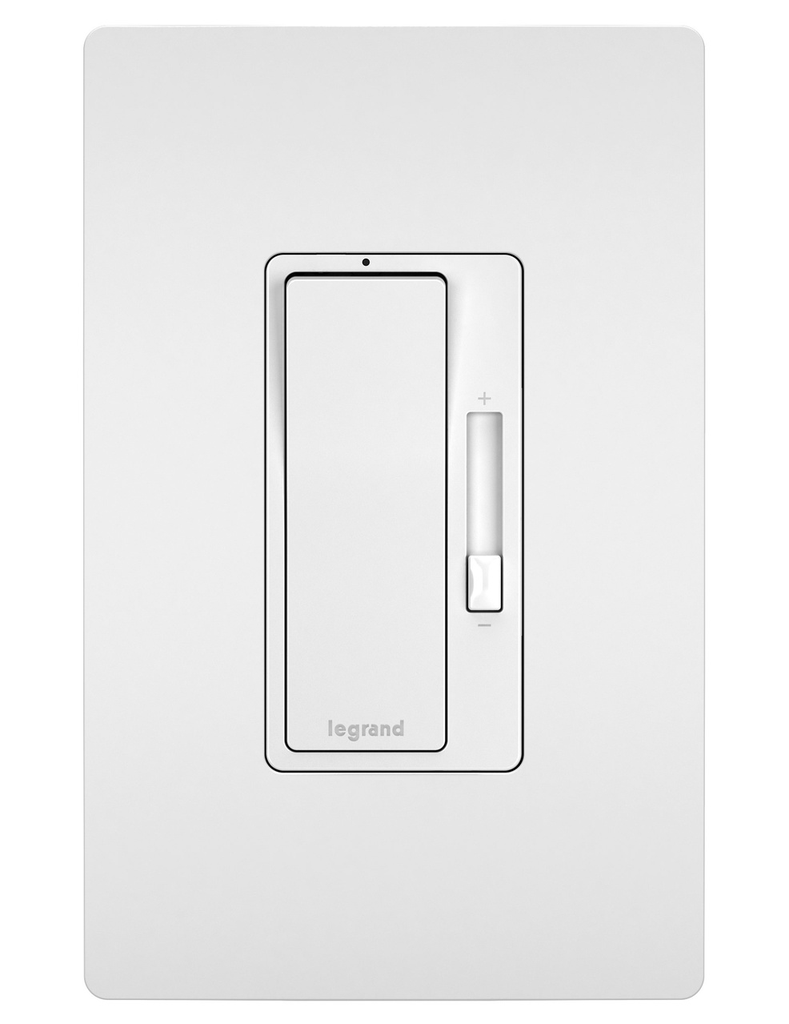

Upgrade your space with precise dimming control and exceptional style, with this dimmer designed for use with most compact fluorescent and LED dimmable bulbs (not for use with 0-10V options). Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

• Features
• Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. Rated for use with the following dimmable bulb types: 450W LED,CFL, 700W Incandescent, or 120VAC, 60Hz
• Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
• Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
• Constant memory features returns lights to their previous level after a power failure or outage.
• Adjustment dial allows users to adjust the bottom of the dimming range for a broad selection of CFL and LED bulbs.
• No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
• Features durable, high-impact resistant thermoplastic construction.
• More color options available to fit any style, including finishes to match current hardware and lighting trends.
• Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
• Certifications
• UL Listed
• cULus Listed

• Specifications
• Depth : 1.25 in
• Preset : Yes
• Height : 4.25 in
• Width : 1.75 in
• Type : Dimmer
• Country of Origin : China
• Load Type : CFL
• Load Type : LED
• Standard : cULus
• Voltage : 120 VAC
• Load Type : Halogen
• Standard : UL Listed
• Switch Type : Paddle
• Switch Type : Slider
• Standard : CSA Listed
• Indoor/Outdoor : Indoor
• Features : Locator Light
• Frequency Rating : 60 Hz
• Load Type : Incandescent
• Mounting Type : Wall Box
• Number of Switches : 1.0
• Wire Size : #14 - #10 AWG
• Compatible Add-Ons : RHKIT
• Requires Neutral Wire : No
• Features : Color Change Kit
• Load Rating : 120V 450W (CFL)
• Load Rating : 120V 450W (LED)
• Application Sector : Residential
• Load Rating : 120V 700W (Halogen)
• Features : Low-End Trim (Dim Range)
• Number of Poles : Single Pole 3-Way
• Jigsaw Channel Availability : Retail
• Special Features : The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation.
• Dimming Compatibility : Forward Phase
• Load Rating : 120V 700W (Incandescent)
• Wire Connection Type : Screw Terminals
• Warranty Type : Limited Lifetime Warranty
• Jigsaw Channel Availability : Distribution
• Maximum Humidity : 95% (relative humidity, non-condensing)
• Environmental Conditions : Humidity: Less than 95% non condensing
• Color : White
• Finish : Satin
• Material : Steel,Thermoplastic
• Product Line : Pass & Seymour
