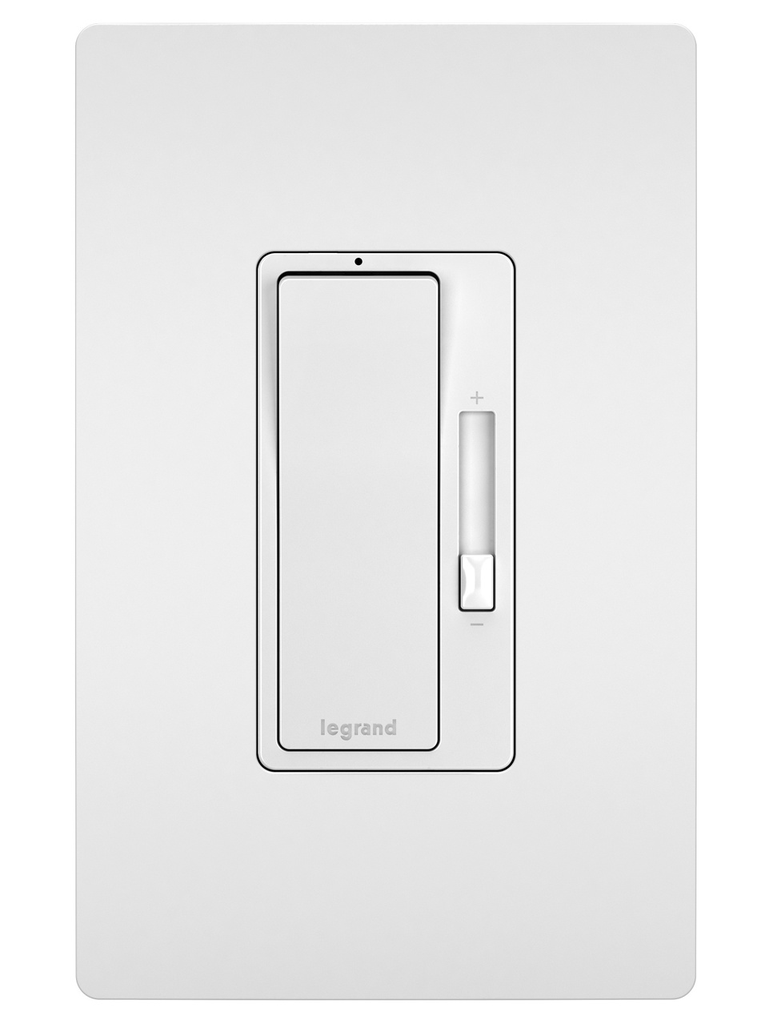

Upgrade your space with precise dimming control and exceptional style. The radiant® 0-10V Dimmer works with low-voltage fluorescent and LED fixtures, allowing you to set the perfect light level for your space with efficiency and ease. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

• Certifications
• UL Listed
• cULus Listed
• Features
• Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. For use with 0-10V, 4-wire, 120V 10A/277V 5A LED and fluorescent lighting.
• Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
• Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
• Constant memory features returns lights to their previous level after a power failure or outage.
• No derating* required for 2-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
• Features durable, high-impact resistant thermoplastic construction.
• More color options available to fit any style, including finishes to match current hardware and lighting trends.
• Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.

• Specifications
• Depth : 1.25 in
• Height : 4.25 in
• Preset : Yes
• Width : 1.75 in
• Type : Dimmer
• Country of Origin : China
• Load Type : LED
• Standard : cULus
• Standard : UL Listed
• Switch Type : Paddle
• Switch Type : Slider
• Standard : CSA Listed
• Voltage : 120/277 VAC
• Indoor/Outdoor : Indoor
• Load Type : Fluorescent
• Frequency Rating : 60 Hz
• Mounting Type : Wall Box
• Number of Switches : 1.0
• Wire Size : #14 - #10 AWG
• Compatible Add-Ons : RHKIT
• Requires Neutral Wire : No
• Features : Color Change Kit
• Load Rating : 277V 5A (LED)
• Load Rating : 120V 10A (LED)
• Dimming Compatibility : 0-10 V
• Application Sector : Commercial
• Application Sector : Hospitality
• Application Sector : Residential
• Features : Low-End Trim (Dim Range)
• Load Rating : 277V 5A (Fluorescent)
• Number of Poles : Single Pole 3-Way
• Wire Connection Type : Flying Leads
• Load Rating : 120V 10A (Fluorescent)
• Special Features : The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation.
• Warranty Type : Limited Lifetime Warranty
• Jigsaw Channel Availability : Distribution
• Maximum Humidity : 95% (relative humidity, non-condensing)
• Color : Ivory,Light Almond,White
• Finish : Matte
• Material : Steel,Thermoplastic
• Product Line : Pass & Seymour
• Environmental Conditions : Humidity: Less than 95% non condensing
