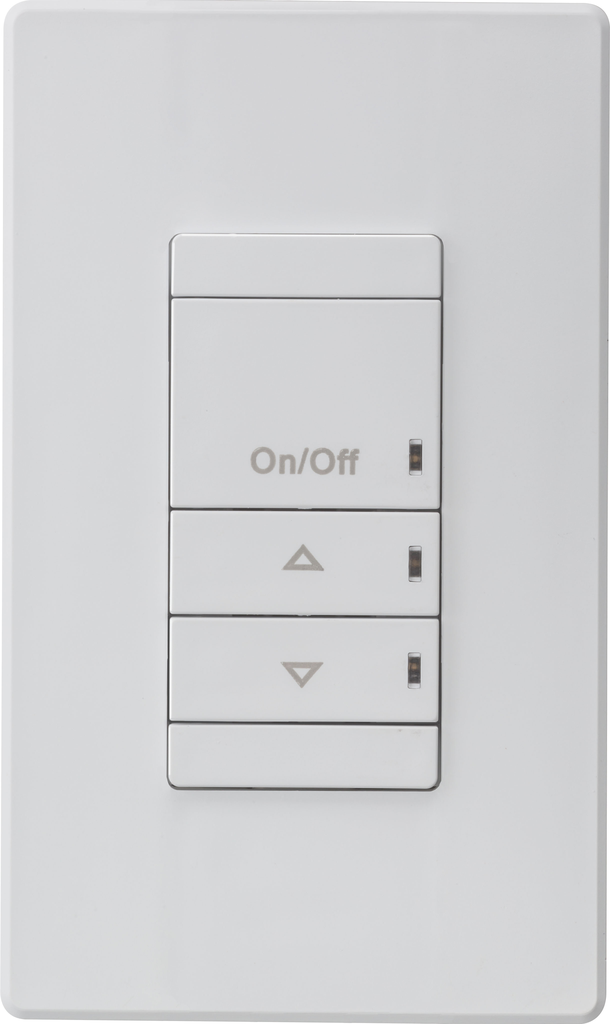

The push-button Dimming Series of wall stations are a cost-effective solution for commercial lighting applications. sPODMRA units come preconfigured for wiring without a neutral, however, if a connection to neutral is required by code, contractors can convert the unit in seconds.

• Features
• The push-button Dimming Series of wall stations are a cost-effective solution for commercial lighting applications. sPODMRA units come preconfigured for wiring without a neutral, however, if a connection to neutral is required by code, contractors can convert the unit in seconds.
• UNIQUE FEATURE: sPODMRA switches have a patent pending wiring method that enables them to function either with or without a neutral connection
• COMPATIBILITY: Compatible with 0-10V dimming luminaries
• CONTROLS: Each MWO device can switch and dim individually; Switching and Dimming will be performed simultaneously across the devices connected through the communication wire
• DESIGN: sPODMRA MWO can be used in conjunction with WSXA MW RoHS
• VOLTAGE: Low Voltage Leads and Line Voltage Leads 0-10VDC
• CONNECTIVITY: Connect up to 9 devices with neutral wiring or up to 2 devices without neutral wiring on a single traveler
• DESIGN LAYOUT: Wall switches can be spaced up to 250 feet apart
• WALLPLATE: Standard screw-less wall plate included in white
• WARRANTY: 5-year limited warranty

• Specifications
• Product Type : Switch
• Application : Education,Government,Healthcare,Hospitality,Offices & Banks,Retail
• Standard : cUL,C-UL-USCA Title 24
• Voltage Rating : 120-277,347
• Mounting : Surface
• Environmental Conditions : Indoor
• Material : Plastic
• Finish : Matte
• Average Life : Not Applicable
• Maximum Operating Temperature : 60
• Lamp Included : Not Applicable
• Warranty : 5 Year Limited
• Height : 2.74 in
• Length : 1.63 in
• Weight : 0.471 lbs
• Width : 1.68 in
• Country of Origin : Mexico
