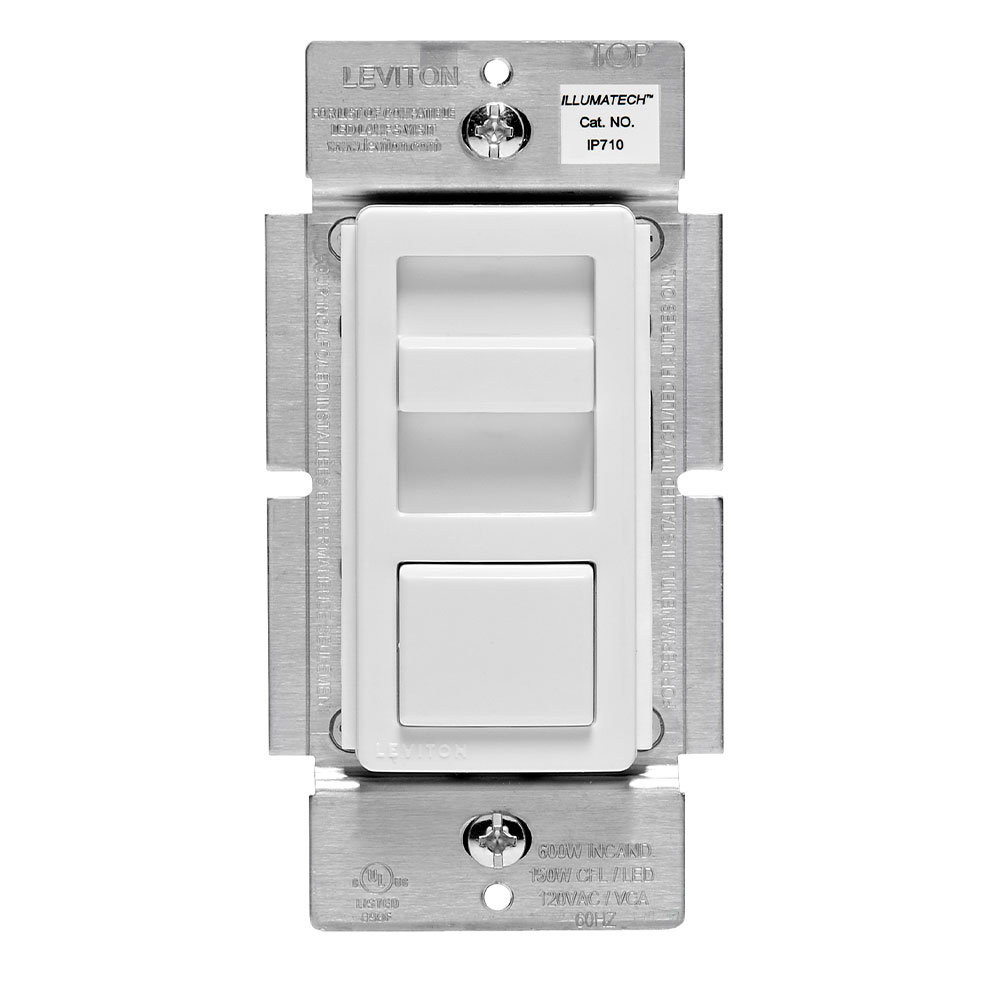

IllumaTech Dimmer Switch for 0-10V LED, Mark 7 Florescent Ballasts, USMCA Compliant

DIMMER LED 0-10V WHT IV LA

LEVIP710LFZ IP710-LFZ 78477620496
178.13 / EACH
http://schema.org/OutOfStock
Mayer-DDS-IllumaTech Dimmer Switch for 0-10V LED, Mark 7 Florescent Ballasts, USMCA Compliant-1
  • Country of Origin: Mexico
  • Frequency: 60 Hz
  • IsSustainable: Yes
  • Warranty Length: 5 yr
IllumaTech Slide Preset USMCA Compliant Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies, suitable for use with Class 1 or Class 2 wiring, 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White, Ivory & Light Almond
QTY
  • Product Description
  • Features
  • Specifications
IllumaTech Slide Preset USMCA Compliant Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies, suitable for use with Class 1 or Class 2 wiring, 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White, Ivory & Light Almond
  • Features
    • Designed specifically for use with LED fixtures using 0-10V power supplies and Mark 7® 0-10V fluorescent ballasts
    • Dual voltage 120V/277V; 50mAmps maximum sink current
    • No power pack required for switching
    • Provides single pole or 3-way lighting control when used with a 3-way switch
    • Compatible with Decora Plus™ screwless and Decora standard designer wallplates (sold separately)
    • Change the color using IPKIT-LN faceplates available in white, ivory, light almond, gray, black, brown and red
    • Fluid slide movement allows fine adjustment of light level with minimal effort
    • Captive wraparound slide bar remains securely attached
    • INNOVATIVE – Designed for use with LED fixtures using 0-10V power supplies for dimming lighting in commercial spaces such as hotels, restaurants, offices and other public spaces
    • ADVANCED – No power pack required for switching
    • EXCEPTIONAL – Superior quality and dimming performance
    • CONVENIENT – Separate on/off switch allows you to set and keep preferred dimming level
    • STYLISH - Easily change the color using IPKIT-LN faceplates available in white, ivory, light almond, gray, black, brown and red
  • Specifications
    • Country of Origin : Mexico
    • RoHS Compliant : False
  • Product Features
    • Action : Standard ON/OFF
    • Available Color Kits : Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
    • Color : White, Ivory, Light Almond
    • Color Change Kit : IPKIT Series
    • Frequency : 60 Hz
    • Load Rating : 1200VA
    • Load Type : Electronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply
    • Ordering Notes : Incl White, Ivory and Light Almond Color Kit
    • Preset : Preset
    • Protection : Radio/TV Filter
    • Standards and Certifications : cCSAus
    • Style Name : IllumaTech
    • Switch Type : Single-Pole & 3-Way
    • Type : Slide
    • USMCA Compliant : Yes
    • Voltage : 120/277 VAC
    • Wallplate : Order Separately
    • Warranty : 5-Year Limited
