LED Undercabinet

12IN LED UNDERCABINET WHITE

PRGP70000102830 P700001-028-30 785247219971
36.30 / EA
http://schema.org/OutOfStock
  • Amperage: 0.064 A
  • Color Rendering Index: 90 CRI
  • Color Temperature: 3000 K
  • Country of Origin: China
  • Finish: Powder Coat, White
  • Height: 1.16 in
  • IsSustainable: Yes
  • Lamp Wattage: 7.6 W
  • Length: 11.5 in
  • Material: Aluminum
  • Number of Lamps: 1
  • Power Source: Hardwired
  • Wattage: 7.6 W
  • Weight: 0.75 lb
  • Width: 1.370 in

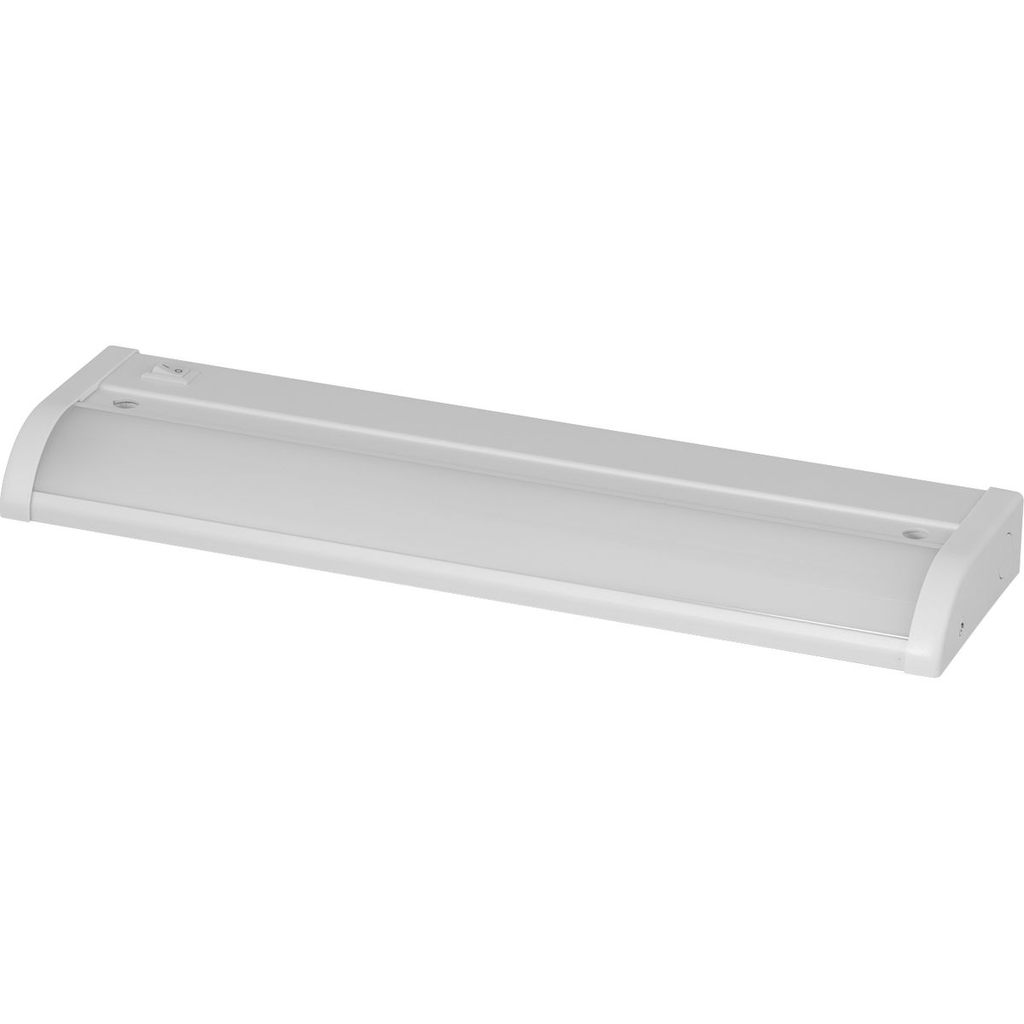

The HIDE-A-LITE V 12" linear undercabinet fixture provides the ideal solution for residential and light commercial applications. Extruded aluminum construction featuring a lens design to optimizes light distribution to ensure proper illumination. The HIDE-A-LITE V series utilizes a simple mounting method, and direct wiring, for a hassle free installation. Energy efficient and functional lighting, which can be dimmed down to 10 percent with many Forward Phase Triac and Electronic Low Voltage ELV dimmers. 9" linear undercabinet fixture. White powder coat finish.
QTY
  • Product Description
  • Features
  • Specifications
The HIDE-A-LITE V 12" linear undercabinet fixture provides the ideal solution for residential and light commercial applications. Extruded aluminum construction featuring a lens design to optimizes light distribution to ensure proper illumination. The HIDE-A-LITE V series utilizes a simple mounting method, and direct wiring, for a hassle free installation. Energy efficient and functional lighting, which can be dimmed down to 10 percent with many Forward Phase Triac and Electronic Low Voltage ELV dimmers. 9" linear undercabinet fixture. White powder coat finish.
  • Features
    • 12" linear undercabinet fixture
    • White powder coat finish
    • Extruded aluminum construction
    • Angled lens design to ensure proper illumination
    • Integral ON/OFF switch
    • Dimmable to 10% with many Forward Phase (Triac) or Electronic Low Voltage (ELV) dimmers
    • Damp location listed
    • Energy Star Qualified
    • Meets California T24 JA8-2016.
  • Specifications
    • Buy American Compliant : No
    • Category General : Undercabinet
    • Country of Origin : CN
    • Dimensions : 11.5 in x 3.27 in x 1.16 in
    • Width : 1.370 in
    • Each - Width : 1.370 in
    • Glass : White
    • Industry Standard(s) : FCC Title 47, Part 15, Class B
    • JA8 : 2016
    • Lamp Type Actual : LED
    • Operating Temperature Celcius Max : 30°C
    • Power Source : Hardwired
    • Power Source Required? : Yes
    • Price - Retail 2.2 : 59.95
    • Spacing : 0.94
    • Amperage Rating : 0.064 A
    • Color : White
    • Finish : Powder Coat
    • Frequency Rating : 60 Hz
    • Height : 1.16 in
    • Lamp Included : Yes
    • Lamp Type : LED
    • Length : 11.5 in
    • Material : Extruded Aluminum
    • Number Of Lamps : 1
    • Standard : FCC Title 47, Part 15, Class B
    • Sub Brand : Progress LED
    • Voltage Rating : 120 V
    • Wattage : 7.6 W
    • Wall Bracket : No
    • Warranty Length : 5-year Limited Warranty
    • Width Diameter Descriptor : Depth
    • Color Rendering Index (CRI) : 90 CRI
    • Color Temperature : 3000 K
    • Construction Material - Main : Extruded Aluminum
    • Construction Material -Main part : Construction
    • Dimmable : Yes
    • Finish Type : Powder Coat
    • Fixture Type : Undercabinet
    • Lamp Wattage : 7.6 W
    • Number of Lamps : 1
    • Power Factor : Greater than 0.90
    • Switch Type : On/Off
    • Weight : 0.75 lb.
    • Wire Length : 6 in
    • ARRA Compliant : No
    • Certification Agency : Proposition 65
    • Class Code : K66
    • Description - Invoice : Undercabinet LED Light
    • Freight Class Code : 10970011
    • Harmonization Code : 9405116010
    • Image Actual Or Representative : A
    • Returnable Indicator : Yes
    • Stock Indicator : S - Shelf Stock
    • Sub Class Code : K66K485
    • Americans with Disabilities Act : No
    • Can be mounted up or down : No
    • Collection Name : Hide-a-Lite V
    • Color Generic : White
    • Construction Material -Secondary : Plastic
    • Construction Material -Secondary part : Construction
    • Controls - Applications : ZONE LUMENS %FIXT;0-30 117 22.4;0-40 193 36.8;0-60 348 66.3;0-90 490 93.3;90-120 33 6.3;90-130 35 6.6;90-150 35 6.7;90-180 35 6.7;0-180 525 100.0
    • Convertible fixture includes both mounts : No
    • DarkSky : No
    • Dimming Protocol : Triac/Forward Phase;ELV/Reverse Phase
    • Dimming Range : 10%
    • Dusk to Dawn : No
    • Energy Efficient : Yes
    • ENERGY STAR Certified : Yes
    • Finish Name : White
    • Lumens Per Watt : 69 Lum/Watt
    • Mount location : Undercabinet
    • Mounting for outlet box included : No
    • New Products : No
    • Other Heavy Metal Content Indicator : No
    • Room Type : Kitchen;Bathroom
    • Starting Temperature - Minimum : -30 °C
    • Title 20 : Yes
    • Title 22 : No
    • Title 24 : Yes
    • TM-21 : 50000
    • Indoor/Outdoor : Indoor
    • Lamp Shape : LED
    • Number of Lamps Total : 1
    • Proposition 65 Warning Required : Yes
    • Base Unit of Measure : EA
    • BOX SIZE : 5.710x13.230x3.580 (in)
    • Carton - Gross Weight per Pack : 4.7 lb.
    • Carton - Number of Sub Packs : 4
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00785247219971
    • Carton - Total Units : 4
    • Each - Number of Sub Packs : 1
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Master Pack - Total Units : 4 EA
    • Master Pack Height : 5.710 in
    • Master Pack Length : 13.230 in
    • Master Pack Weight : 4.070 lb.
    • Master Pack Width : 3.580 in
    • Pallet Height : 57.100 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 1056.000 lb.
    • Pallet Width : 48.000 in
  • Certifications
    • Certified Listed : cETLus
    • Certified Listed Location : Damp Location Listed
