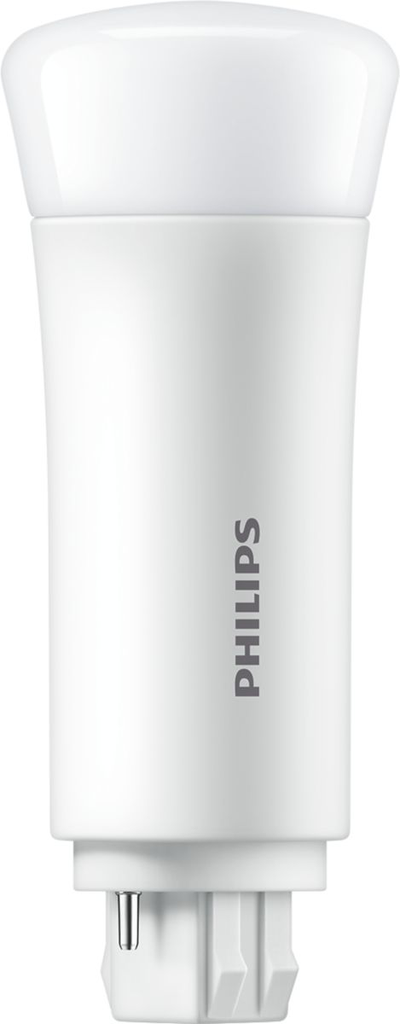

Philips PLED 4-pin & 2-pin lamps are an affordable LED solution to replace compact flourescent lamps. The product provides a natural lighting effect for use in many lighting applications, and provides instant energy savings, making them an environmentally-friendly solution. Available as replacements for 13W, 26W and 32W compact fluorescent lamps.

• Features
• Excellent energy efficency
• Horizontal lamps rotate to ensure the best possible lighting effect
• Easy installation. Plug-and-play replacement of existing CFL-ni lamps
• Conventional form factor fits into existing luminaires
• Benefits
• Reduced lighting costs
• Excellent lighting uniformity and lumen maintenance
• Unmatched compatiblity with existing ballasts
• Applications
• Retail & hospitality
• Residential
• Healthcare

• Operating and Electrical
• Input Frequency : 50 to 60 Hz
• Power (Rated) (Nom) : 5 W
• Lamp Current (Max) : 50 mA
• Lamp Current (Min) : 15 mA
• Starting Time (Nom) : 0.5 s
• Warm Up Time to 60% Light (Nom) : 0.5 s
• UL Type : Type A - works on ballast
• Power Factor (Nom) : 0.9
• Voltage (Nom) : 120-277 V
• Mechanical and Housing
• Product Length : 4 in
• Light Technical
• Color Code : 835 [ CCT of 3500K]
• Beam Angle (Nom) : 150 °
• Initial lumen (Nom) : 550 lm
• Color Designation : White (WH)
• Correlated Color Temperature (Nom) : 3500 K
• Luminous Efficacy (rated) (Nom) : 110.00 lm/W
• Color Consistency : <6
• Color Rendering Index (Nom) : 82
• LLMF At End Of Nominal Lifetime (Nom) : 70 %
• Approval and Application
• Energy Saving Product : Yes
• Controls and Dimming
• Dimmable : No
• Temperature
• T-Ambient (Max) : 45 °C
• T-Ambient (Min) : -20 °C
• T-Storage (Max) : 65 °C
• T-Storage (Min) : -40 °C
• T-Case Maximum (Nom) : 70 °C
• General Information
• Base : GX23-2 [ GX23-2]
• EU RoHS compliant : Yes
• Nominal Lifetime (Nom) : 50000 h
• Switching Cycle : 50000X
