MH1000/U/BT37 6PK

MH1000/U/BT37

SFY321505 321505 46677321505
104.38 / EA
http://schema.org/OutOfStock
Mayer-DDS-MH1000/U/BT37 6PK-1
  • Color Rendering Index: 65 CRI
  • Correlated Color Temperature: 4000 K
  • Efficacy: 110 LPW
  • Lumens: 110000 lm, 71500 lm
  • Voltage: 263 V
  • Weight: 0.001 kg

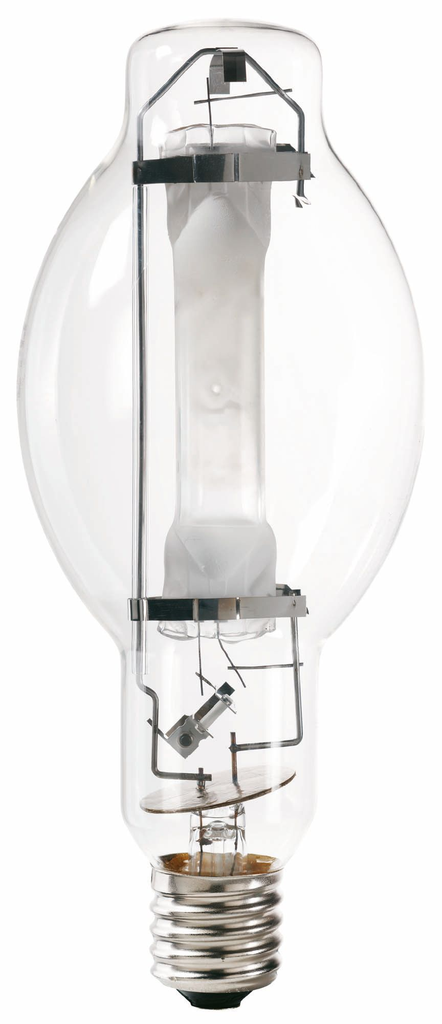

Switch Start Metal Halide Standard High performance, Long life and Superior light qualityA compact, energy efficient metal halide lamp that provides crisp, sparkling light wih long life and high efficiency.
QTY
  • Specifications
  • Product Data
    • Order product name : MH1000/U/BT37 6PK
    • EAN/UPC - Product : 046677321505
    • Order code : 928601179701
    • Numerator - Quantity Per Pack : 1
    • Numerator - Packs per outer box : 6
    • Material Nr. (12NC) : 928601179701
    • Net Weight (Piece) : 0.001 kg
  • Operating and Electrical
    • Lamp Current (Nom) : 4.1 A
    • Ignition Supply Voltage (Min) : 440 V
    • Re-Ignition Time (Min) (Max) : 15 min
    • Ignition Time (Max) : 120 s
    • Voltage (Nom) : 263 V
  • Mechanical and Housing
    • Bulb Finish : Clear
    • Cap-Base Information : Nickel/Brass
    • Bulb Material : Hard Glass
  • Light Technical
    • Color Code : 640  [ CCT of 4000K]
    • Luminous Flux (Rated) (Nom) : 110000 lm
    • Color Designation : Cool White (CW)
    • Lumen Maintenance - 40% Life : 65 %
    • Design Mean Lumens : 71500 lm
    • Chromaticity Coordinate X (Nom) : 0.385
    • Chromaticity Coordinate Y (Nom) : 0.390
    • Correlated Color Temperature (Nom) : 4000 K
    • Luminous Efficacy (Rated) (Nom) : 110 lm/W
    • Color Rendering Index (Nom) : 65
  • Approval and Application
    • Energy Saving Product : Not Applicable
    • Picogram Per Lumen Hour : 176 pg/lm.h
    • Mercury (Hg) Content (Nom) : 151.0 mg
  • UV
    • Pet (Niosh) (Nom) : 164 h/500lx
    • Damage Factor D/fc (Nom) : 0.53
  • Luminaire Design Requirements
    • Bulb Temperature (Max) : 450 °C
    • Cap-Base Temperature (Max) : 250 °C
  • General Information
    • Cap-Base : E39  [ Single Contact Mogul Screw]
    • Operating Position : UNIVERSAL  [ Any or Universal (U)]
    • Main Application : General Lighting (G)
    • Life to 50% Failures (Nom) : 12000 h
    • ANSI Code HID : M47/E
    • Footnotes HID 1 : Electrically insulated support for bulb may be required, especially in horizontal and nearly horizontal operating positions. (359)
    • Footnotes HID 2 : Requires a ballast specified or approved for Philips metal halide lamps, or one that is designed to operate all popular brands of metal halide lamps. 1000W types will operate from H36 conventional lag type ballast for Mercury Vapor lamps at ambient temperatures of 50 degrees F or higher. 1000W types must not be operated at 1500W. (377)
    • Footnotes HID 3 : Rated life: Vertical +/- 15 degrees. Other positions 75% of vertical life. (385)
    • Footnotes HID 4 : Vertical lumens. Horizontal lumens 6%–10% lower. (393)
