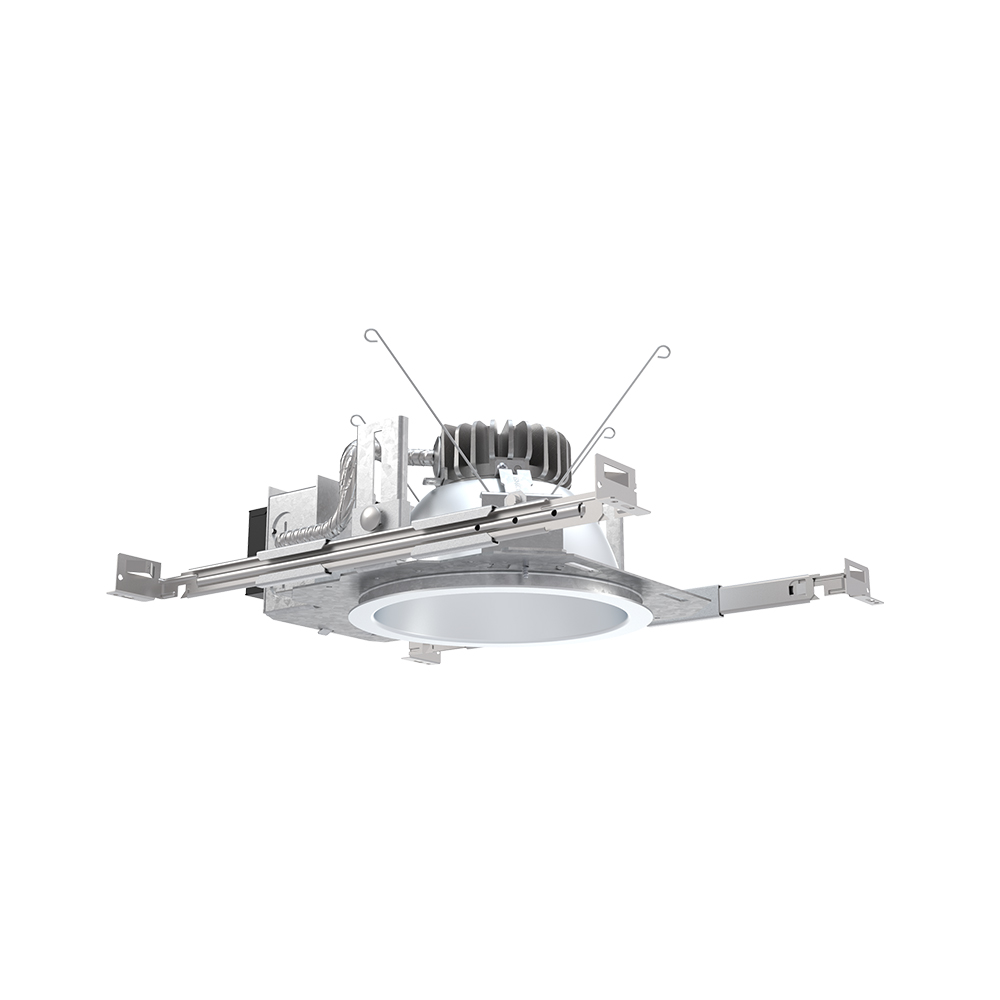

LDN 6IN Round New Construction Housing, Switchable lumens – 1000LM, 1500LM, and 2000LM, Switchable CCT – 3000K, 3500K, 4000K, and 5000K, Multi-Volt, Universal Dimming to 10% 0-10V, Housing

LDN6 6" LED HOUSING

LITLDN6ALO2SWW1MVOLTUGZHS LDN6ALO2SWW1MVOLTUGZHS 194994869917
168.12 / EA
http://schema.org/OutOfStock
Mayer-DDS-LDN 6IN Round New Construction Housing, Switchable lumens – 1000LM, 1500LM, and 2000LM, Switchable CCT – 3000K, 3500K, 4000K, and 5000K, Multi-Volt, Universal Dimming to 10% 0-10V, Housing-1
  • Aperture Size: 6 in
  • Applications: Bridges & Tunnels, Education, Government, Healthcare, Hospitality, Offices & Banks, Retail, Roadways
  • Average Rated Life: 50,000 hr
  • Country of Origin: Mexico
  • Dimmable (Y/N): Yes
  • Environmental Conditions: Indoor
  • Height: 7.5 in
  • Lamp Type: LED - Static
  • Length: 11.5 in
  • Lens Color: Clear
  • Lens Material: Polycarbonate
  • Material: Steel
  • Mounting Type: Recessed
  • Number of Lamps: 1
  • Product Type: Housing
  • Shape: Round
  • Standard: CULLow UGR
  • Warranty Length: 5 yr
  • Weight: 4.208 lb
  • Width: 11.25 in
LDN Switchable offers the incredible versatility you need in new construction downlighting for commercial-grade applications with new driver capabilities including switchable CCTs, lumens, and dimming options. Choose the LDN Switchable for the best value in commercial downlighting.
QTY
  • Product Description
  • Features
  • Specifications
LDN Switchable offers the incredible versatility you need in new construction downlighting for commercial-grade applications with new driver capabilities including switchable CCTs, lumens, and dimming options. Choose the LDN Switchable for the best value in commercial downlighting.
  • Features
    • LDN Switchable offers the incredible versatility you need in new construction downlighting for commercial-grade applications with new driver capabilities including switchable CCTs, lumens, and dimming options. Choose the LDN Switchable for the best value in commercial downlighting.
    • TECHNOLOGY: LDN Switchable offers switchable CCTs (3000K-3500K-4000K-5000K) and switchable lumens (ranging from 1000-2000LM) as well as a combo driver capable of handling phase dimming (120V) and 0-10V (MVOLT).
    • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life, and up to 114 LPW
    • DIMMING: MVOLT 120-277V, 0-10V and phase dimming in an all-in one driver for 10% dimming
    • RATINGS: Energy Star, Wet Location, Damp Location, Title 20
    • VOLTAGE: MVOLT 120-277V, 0-10V and phase dimming (120V)
    • HOURS OF LIFE: L80 at 60,000 hours
    • INSTALLATION: Traditional mounting frame allows for a quick installation for new construction applications
    • BATTERY: Emergency battery pack not included, available for purchase separately. Refer to spec sheet for field installed battery pack options.
    • WARRANTY: 5-year limited warranty
  • Specifications
    • Product Type : Housing
    • Application : Education,Government,Healthcare,Hospitality,Offices & Banks,Retail,Roadways, Bridges & Tunnels
    • Standard : cULLow UGR
    • Voltage Rating : 120-277
    • Lumens : 1000 LM,1500 LM,2000 LM,Switchable
    • Lamp Type : LED - Static
    • Number of Lamps : 1
    • Shape : Round
    • Mounting : Recessed
    • Environmental Conditions : Indoor
    • Color Temperature : Variable
    • Wattage : 25.6
    • Material : Steel
    • Color Rendering Index (CRI) : 80
    • Dimmable : Yes
    • Average Life : 50,000 hrs
    • Aperture Size : 6 IN
    • Maximum Operating Temperature : 25
    • Lamp Included : Yes
    • Lens Material : Polycarbonate
    • Lens Color : Clear
    • Warranty : 5 Year Limited
    • Lens : Yes
    • Height : 7.5 in
    • Length : 11.5 in
    • Weight : 4.208 lbs
    • Width : 11.25 in
    • Country of Origin : Mexico
