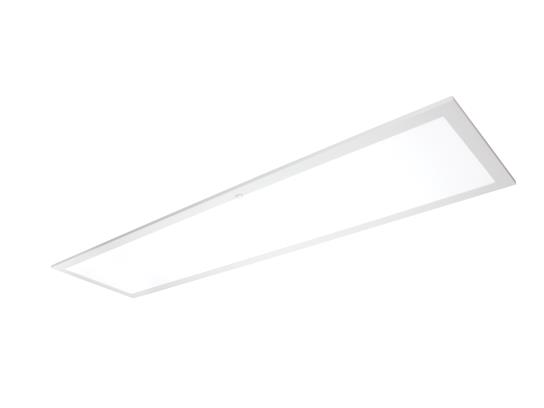

FLATMAX LED FLAT PANEL 1X4 GEN 4 WATT SELECT - 20W, 25W, 30W WATT AND COLOR SELECT - 3500K, 4000K, 5000K - CONTROL READY

FLATMAX LED FLAT PANEL

MXLMLFP14G420WCSCR MLFP14G420WCSCR MXLMLFP14G420WCSCR
0.00 / EA
http://schema.org/OutOfStock
  • Ambient Temperature: 104 °F, -4 °F
  • Carton Height: 14.06 in
  • Carton Weight: 7.94 lb
  • Carton Width: 3.5 in
  • Color Temperature: 3500 K, 4000 K, 5000 K
  • Efficacy: 115 LPW
  • Finish: White
  • Height: 2.23 in
  • Length: 47.75 in
  • Lumens: 2500 lm, 2900 lm, 3450 lm
  • Power Factor: 0.9
  • Warranty Length: 10 yr
  • Weight: 5.9 lb
  • Width: 11.9 in
A seamless replacement for 1'x4', 2'x2' and 2'x4' fluorescent fixtures, MaxLite's next-generation LED Flat Panels are designed to lay in drop ceilings in offices, schools, and healthcare applications. The panels produce highly efficient, uniform illumination, and offer the versatility of field-selectable color temperatures and wattages to suit various application needs. The panels are fully dimmable, and may be combined with motion sensors for further energy savings. MaxLite panels deliver all the benefits of LED technology, including a long life with high lumen maintenance, reduced energy consumption and lower maintenance costs.
QTY
  • Product Description
  • Features
  • Specifications
A seamless replacement for 1'x4', 2'x2' and 2'x4' fluorescent fixtures, MaxLite's next-generation LED Flat Panels are designed to lay in drop ceilings in offices, schools, and healthcare applications. The panels produce highly efficient, uniform illumination, and offer the versatility of field-selectable color temperatures and wattages to suit various application needs. The panels are fully dimmable, and may be combined with motion sensors for further energy savings. MaxLite panels deliver all the benefits of LED technology, including a long life with high lumen maintenance, reduced energy consumption and lower maintenance costs.
  • Features
    • Field Wattage and CCT Selectable
    • Controls Ready ? can be paired with the new cMax controls nodes
    • Fixed Wattage units also available
    • 0-10V Dimmable
    • Voltage: 120-277V
    • L70 Lumen Maintenance ≥100,000 at 40°C (104°F)
    • On EM mode, the fixture output a minimum of 700 lumens for 90 minutes
  • Certification
    • ETL : ETL Listed
  • Longevity
    • L70 Life (Hours) : 100000
    • Warranty (Years) : 10
  • Dimming Control
    • Min Dimming Level (%) : 10
  • Product Weight
    • Product Weight (lbs) : 5.9
  • Package Specification
    • Box Weight (lb) : 7.94
    • Box Height (inch) : 14.06
    • Box Width (inch) : 3.5
    • Box Depth (inch) : 49.7
  • Dimension
    • Product Height (Inches) : 2.23
    • Product Width/Dia. (Inches) : 11.9
    • Product Length (Inches) : 47.75
  • Finish
    • Finish : WHITE
  • Qualification
    • DLC : Standard
  • Operating Temperature
    • Min Ambient Temp (+/- F) : -4
    • Max Ambient Temp (F) : 104
  • Performance
    • Beam Angle (Degree) : 120
    • Delivered Lumens (LM) : 2500/2900/3450
    • Efficacy (LM/W) : 115
    • CRI : >=80
    • Color Temperature (CCT) : 3500/4000/5000
    • Power Factor (0.00 - 1.00) : 0.9
    • Life Cycle : LC4
