CPANL, 2FT x 4FT, Switchable lumens – 4000LM, 5000LM, and 6000LM, Switchable CCT – 3500K, 4000K, and 5000K

FLAT PANEL

LITCPANL2X4ALO6SWW7M2 CPANL2X4ALO6SWW7M2 194995124916
0.00 / EA
http://schema.org/OutOfStock

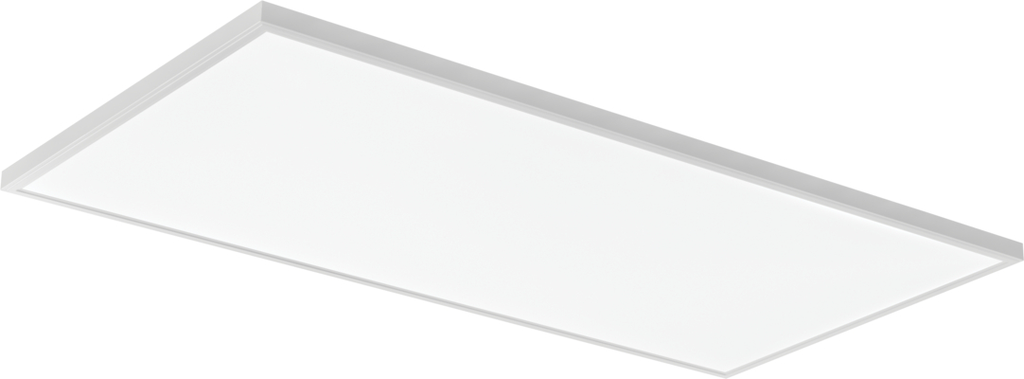

Mayer-DDS-CPANL, 2FT x 4FT, Switchable lumens – 4000LM, 5000LM, and 6000LM, Switchable CCT – 3500K, 4000K, and 5000K-1
  • Applications: Education, Government, Healthcare, Hospitality, House Of Worship, Offices & Banks
  • Color Rendering Index: 80
  • Color Temperature: 3500 K, 4000 K, 5000 K
  • Country of Origin: China
  • Dimmable (Y/N): Yes
  • Environmental Conditions: Indoor
  • Finish: Semi-Gloss
  • Height: 1.26 in
  • IsSustainable: Yes
  • Lamp Type: LED - Dynamic
  • Length: 47.81 in
  • Lens Color: White
  • Lens Material: Acrylic
  • Material: Steel
  • Product Type: Flat Panel
  • Shape: Rectangular
  • Standard: CSA
  • Warranty Length: 5 yr
  • Width: 23.79 in
The CPANL™ LED Fully Switchable Flat Panel features an integrated driver that allows CPANL to be suspended, direct surfaced mounted or integrated into a t-grid ceiling. The adjustable lumen output (ALO) feature adds flexibility by allowing you to choose between three-lumen options with a simple switch. And now, CPANL also features switchable color temperature (SWW) which allows you to select either warm, medium or cool temperatures. Direct ceiling surface mount kit (DCMK 224) sold separately.
QTY
  • Product Description
  • Features
  • Specifications
The CPANL™ LED Fully Switchable Flat Panel features an integrated driver that allows CPANL to be suspended, direct surfaced mounted or integrated into a t-grid ceiling. The adjustable lumen output (ALO) feature adds flexibility by allowing you to choose between three-lumen options with a simple switch. And now, CPANL also features switchable color temperature (SWW) which allows you to select either warm, medium or cool temperatures. Direct ceiling surface mount kit (DCMK 224) sold separately.
  • Features
    • The CPANL™ LED Fully Switchable Flat Panel features an integrated driver that allows CPANL to be suspended, direct surfaced mounted or integrated into a t-grid ceiling. The adjustable lumen output (ALO) feature adds flexibility by allowing you to choose between three-lumen options with a simple switch. And now, CPANL also features switchable color temperature (SWW) which allows you to select either warm, medium or cool temperatures. Direct ceiling surface mount kit (DCMK 224) sold separately.
    • TECHNOLOGY: Features adjustable lumen output (ALO) and switchable color technology (SWW) allowing for more flexibility and customization for your space
    • ENERGY SAVINGS: Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
    • DIMMING: 0-10 volts driver for dimming down to 10 percent
    • RATINGS: Certified for damp locations, CSA certified, IC certified, DLC certified
    • VOLTAGE: Standard MVOLT for 120-277 volts
    • HOURS OF LIFE: Greater than 70 percent LED lumen maintenance at 60,000 hours (L70>60,000)
    • INSTALLATION: Can be installed directly to the ceiling; If a mounting kit is needed, Direct ceiling surface mount kit (DCMK 224) is sold separately
    • BATTERY: Field-installable LED emergency driver sold separately
    • WARRANTY: 5-year limited warranty
  • Specifications
    • Product Type : Flat Panel
    • Application : Education,Government,Healthcare,Hospitality,House of Worship,Offices & Banks
    • Standard : CSA
    • Voltage Rating : 120-277
    • Lumens : 4000 LM,5000 LM,6000 LM,Switchable
    • Color : White
    • Lamp Type : LED - Dynamic
    • Shape : Rectangular
    • Mounting : Recessed,Surface
    • Environmental Conditions : Indoor
    • Color Temperature : 3500 K,4000 K,5000 K,Variable
    • Material : Steel
    • Color Rendering Index (CRI) : 80
    • Dimmable : Yes
    • Finish : Semi-Gloss
    • Aperture Size : 2x4
    • Maximum Operating Temperature : 25
    • Lamp Included : Yes
    • Lens Material : Acrylic
    • Lens Color : White
    • Warranty : 5 Year Limited
    • Lens : Yes
    • Height : 1.26 in
    • Length : 47.81 in
    • Weight : 17.05 lbs
    • Width : 23.79 in
    • Country of Origin : China
