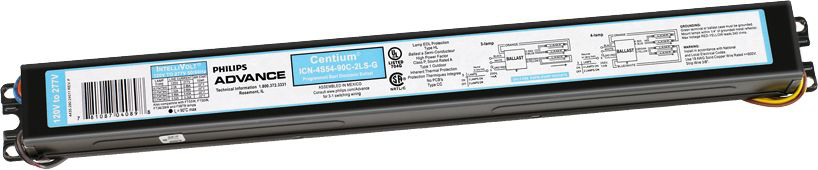

ELE BALLAST (4) F54T5HO 120-277V

ELE BALLAST (4) F54T5HO 120-27

ADVICN4S5490C2LSG35M ICN4S5490C2LSG35M 781087047835
92.48 / EA
http://schema.org/OutOfStock
Mayer-DDS-ELE BALLAST (4) F54T5HO 120-277V-1
  • Amperage: 0.86 A, 2.00 A
  • Country of Origin: USA
  • Dimmable (Y/N): No
  • Height: 1.179 in
  • Length: 16.700 in
  • Voltage: 120 V, 277 V
  • Wattage: 234 W
  • Weight: 2.738 lb
  • Width: 1.700 in
No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90° C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.
QTY
  • Product Description
  • Features
  • Specifications
No matter what the conditions require, operating at a variety of line voltages between 120V to 480V, whether located in high ambient temperature environments (requiring a 90° C rating) or not, our family of Philips Advance Centium ballasts are ideal for a wide variety of applications.
  • Certifications and Standards
    • EU RoHS
    • ARRA
    • BAA
  • Features
    • IntelliVolt 120-277V, Series Lamp Operation
  • Application
    • Commercial
  • Specifications
    • Country of Origin : USA
    • Weight : 2.738 Lbs
    • Height : 1.1799 IN
    • Width : 1.7000 IN
    • Length : 16.7000 IN
    • Amperage Rating : 2.00-0.86 A
    • Ballast Factor : 1
    • Color : Black
    • Dimmable : Non Dimmable
    • Frequency Rating : 50to60 Hz
    • Lamp Type : Fluorescent
    • Minimum Starting Temperature : -20
    • Mounting : 16.34
    • Number Of Lamps : 4
    • Power Factor : 0.98
    • Standard : CSA certificate;UL certificate;CEC Listing;NOM certificate;RoHS Compliant
    • Start Type : Programmed
    • Thermal Protection : Class P
    • Total Harmonic Distortion : <=10
    • Type : Electronic
    • Voltage Rating : 120-277 V
    • Wattage : 240-234 W
