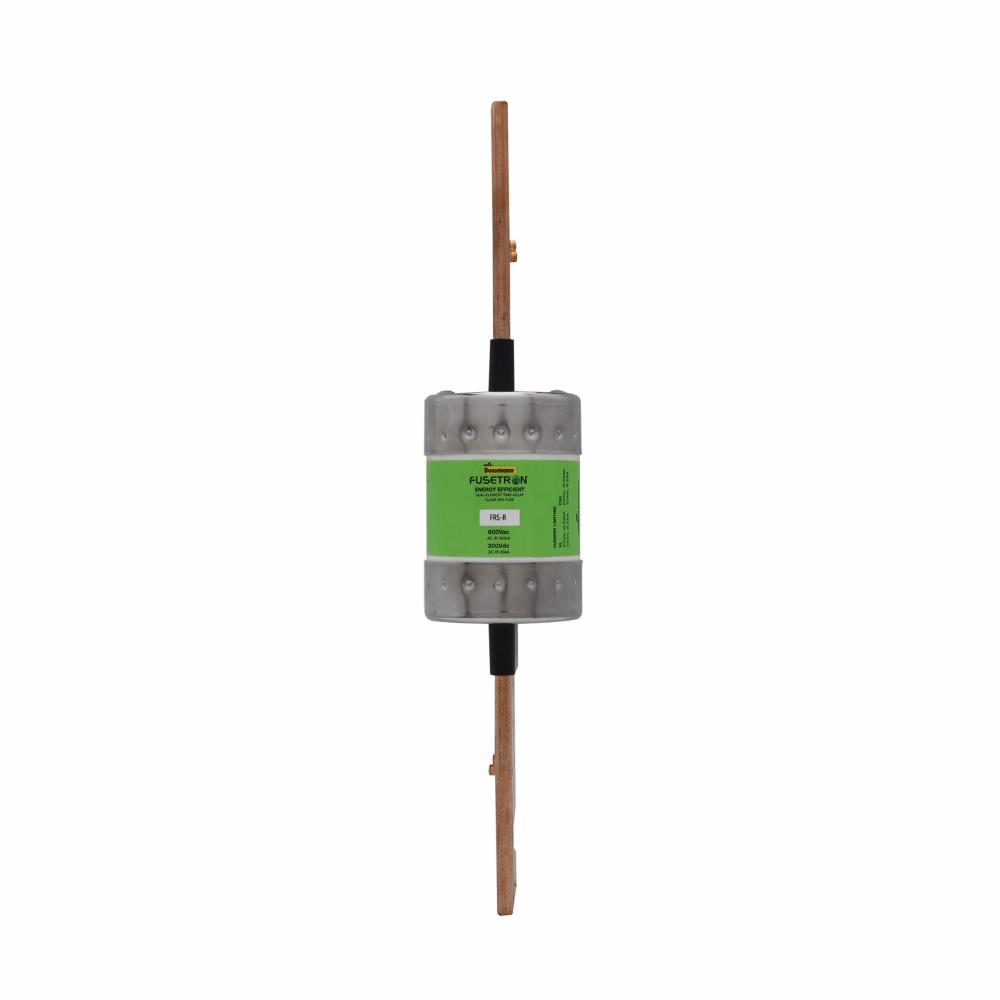

Eaton Bussmann series FRS-R fuse, 400 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc

FUSE 400A 600V TD

BUSFRSR400 FRS-R-400 051712508537
0.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Eaton Bussmann series FRS-R fuse, 400 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc-1
  • Amperage: 400 A
  • Class: Class RK5
  • Connection Type: Blade
  • End Type: Blade
  • Height: 1.06 in
  • Length: 5.5 in
  • Voltage: 300 V, 600 V
  • Weight: 3 lb
QTY
  • Specifications
  • Electrical Rating
    • Amperage Rating : 400 A
    • Interrupt rating : 200 kAIC at 600 Vac
    • Response time : 10 sec at 500%
    • Voltage rating : 600 Vac, 300 Vdc
  • General
    • UPC : 051712508537
    • Product Length/Depth : 5.5 in
    • Product Height : 1.06 in
    • Product Width : 1.06 in
    • Product Weight : 3 lb
    • Warranty : Not Applicable
    • Compliances : CE Marked
  • Physical Details
    • Number of elements : Dual
    • Packaging type : Standard
  • General Information
    • Class : Class RK5
    • Connection : Blade end x blade end
    • Fuse indicator : Non-indicating
