SQUARE D

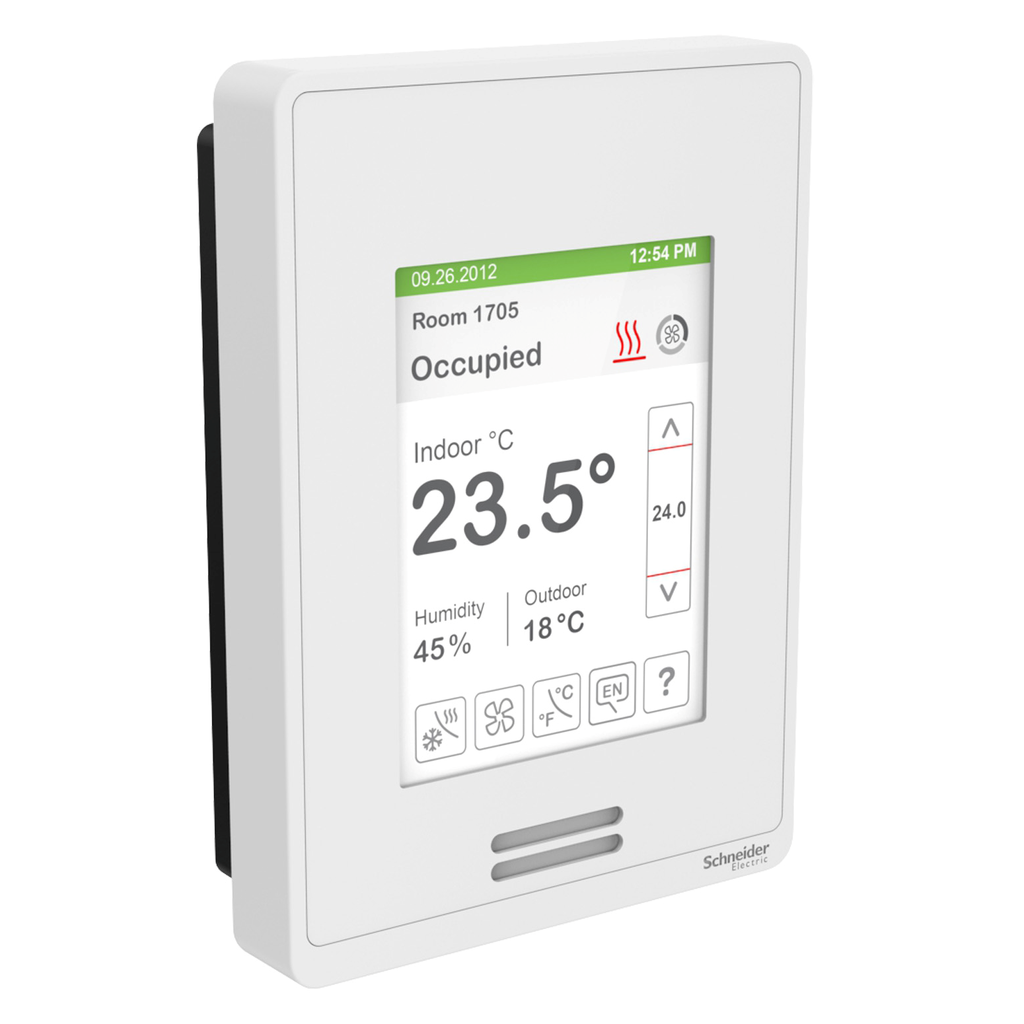

Roof Top Unit, Heat Pump & Indoor Air Quality Ctrl: BACnet MS/TP, RH sensor & control, PIR motion sensor, White Case/Fascia

ROOF TOP UNIT, HEAT PUMP & IND

SQDSE8650U5B11 SE8650U5B11 3606481204998
782.68 / EA
http://schema.org/OutOfStock
Mayer-DDS-Roof Top Unit, Heat Pump & Indoor Air Quality Ctrl: BACnet MS/TP, RH sensor & control, PIR motion sensor, White Case/Fascia-1
  • Depth: 25 mm
  • Height: 120 mm
  • Input Voltage: ...10 V
  • Net Weight: 340 g
  • Output Voltage: ...10 V, 24 V
  • Standard: EN/IEC 60730-1, ETSI EN 300 328, ETSI EN 301 489-1:v1.9.2, ETSI EN 301 489-17:v2.2.1, 2012, FCC Part 15 Subpart B, FCC Part 15 Subpart C, ICES-003, UL 60730-2-9
  • Storage Temperature: -30-50 °C
  • Width: 86 mm
QTY
  • Specifications
  • Specifications
    • Housing Colour : white
    • Ambient Air Temperature For Operation : 0-50 °C
    • Height : 120 mm
    • Calibration Certificate : 1 Pt
    • Standards : EN/IEC 60730-1 || FCC part 15 Subpart B || ICES-003 || ETSI EN 300 328 || ETSI EN 301 489-1:v1.9.2 || FCC part 15 Subpart C || UL 60730-2-9 || ETSI EN 301 489-17:v2.2.1, 2012
    • Output Voltage : 24 V AC/DC relay output || 0...10 V AC/DC voltage output
    • Targeted Region : North America.
    • Product Or Component Type : roof top unit
    • Output Type : 5 xrelay output || 4 xuniversal
    • Humidity Measurement Drift : Less Than 1 % Yearly
    • Product Name : SE8000 Series
    • Net Weight : 340 g
    • Range : EcoStruxure Building Expert
    • Input Type : dry contact 2 || analog 5
    • Communication Port Protocol : BACnet MS/TP || Modbus RTU || Zigbee Pro
    • Directives : 2014/30/EU - electromagnetic compatibility || 2014/35/EU - low voltage directive || 2014/53/EU - radio equipment directive
    • Awg Gauge : AWG 22...AWG 18
    • Ambient Air Temperature For Storage : -30-50 °C
    • Output Current : 1 A relay output || 3 A relay output inrush) || 0.3 A universal output || 1.5 A universal output inrush)
    • Input Voltage : 0...10 V
    • Sensor Type : 10 kOhm T2 NTC thermistor Temperature || space RH sensor Humidity || bulk polymer Humidity
    • Relative Humidity : 0-75 %
    • Temperature Setting Range : 12-37.5 °C cooling || 4.5-32 °C heating
    • Width : 86 mm
    • Humidity Setting Range : 30-95 %
    • Market Segment : Lodging/Hotel || small commercial || buildings || healthcare || non-critical buildings || office || residential || school
    • Temperature Resolution : 0.1 °C
    • Depth : 25 mm
    • Device Application : staging equipment (RTU/HP)
    • Device Short Name : SE8600
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Eu Rohs Directive : Compliant with Exemptions
  • Complementary
    • Surface Finish : Matte
    • Surface Treatment : untreated
