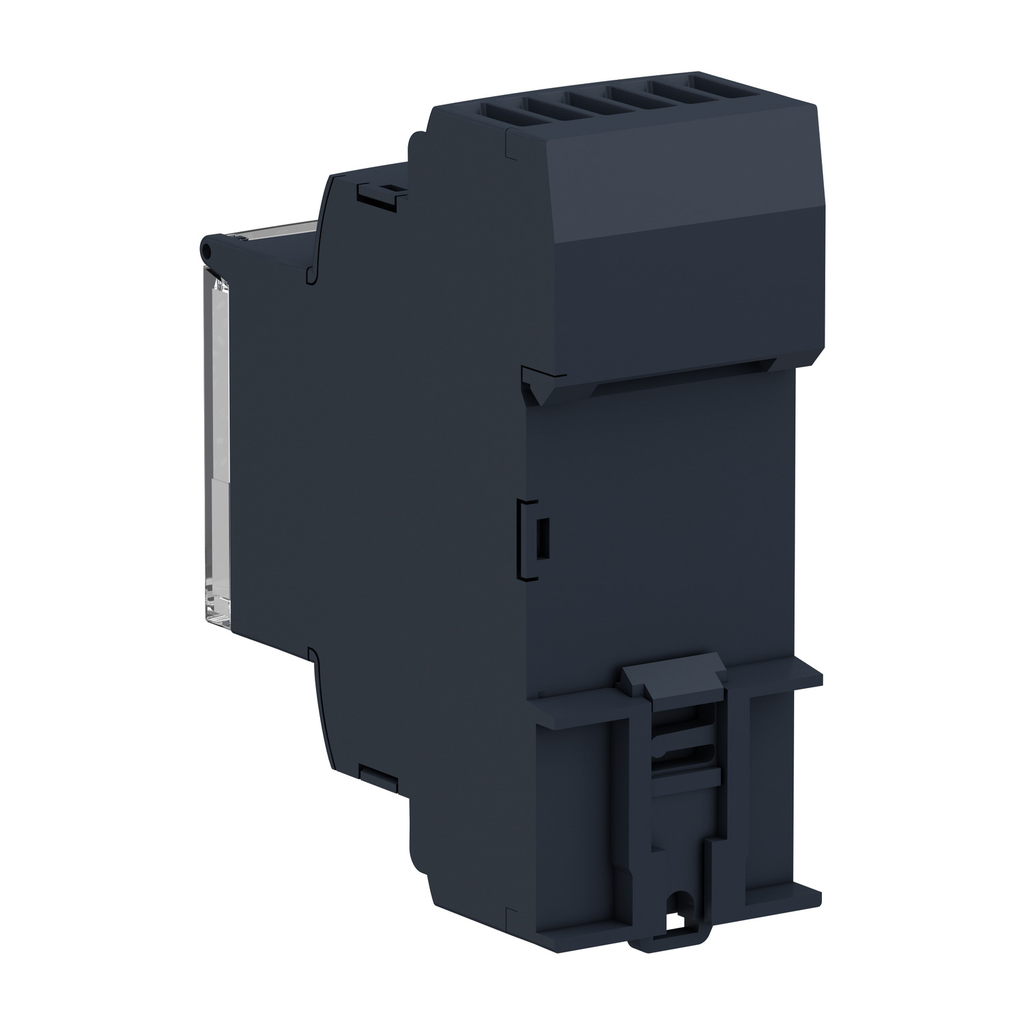

This Harmony RM35-LV relay allows monitoring of level control in 3-phase networks. "This modular multi function 3-phase liquid level control relay is ideal for monitoring of electrical values in industrial and building control panels." "It applies to a w

• Insulation Resistance
• > 500 MOhm 500 V DC between supply and relay output IEC 60255-5
• > 500 MOhm 500 V DC between supply and relay output IEC 60255-
• Safety Reliability Data
• B10d = 170000
• MTTFd = 182.6 years
• Connections Terminals
• screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end
• screw terminals, 1 x
• Overvoltage Category
• III conforming to IEC 60664-1
• Mounting Support
• 35 mm symmetrical DIN rail conforming to IEC 60715
• Uimp Rated Impulse Withstand Voltage
• 4 kV IEC 60255-5
• 4 kV IEC 60664-1
• 4 kV IEC 61000-4-5
• Supply Voltage Limits
• 20.4-264 V AC/DC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.043154399360093076
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.2 kg CO2 eq.
• 0.24968448225712625
• Ui Rated Insulation Voltage
• 250 V IEC 60664-1
• Operating Position
• any position without derating
• Maximum Switching Voltage
• 250 V AC/DC
• Ip Degree Of Protection
• IP20 IEC 60529 terminals)
• IP30 IEC 60529 casing)
• Dielectric Test Voltage
• 2 kV AC 50 Hz, 1 min IEC 60255-5
• 2 kV AC 50 Hz, 1 min IEC 60664-1
• 2 kV AC 50 Hz, 1 min IE
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 9 kg CO2 eq.
• 8.955836242001162
• Maximum Switching Current
• 5 A AC/DC
• Marking
• CE : EMC 89/336/EEC
• CE : 73/23/EEC
• Immunity To Microbreaks
• 100 ms DC
• 90 ms AC
• Time Delay Type
• adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault
• Reset Time
• 1000 ms
• 4000 ms
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Measurement Error
• 0.5 %/°C with temperature variation
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 50 kg CO2 eq.
• 50.262
• Electromagnetic Compatibility
• emission standard for industrial environments conforming to IEC 61000-6-4
• emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-
• Relative Humidity
• 95-95 % 55-55 °C IEC 60068-2-30
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Us Rated Supply Voltage
• 24...240 V AC/DC 50/60 Hz, non self-powered
• Measurement Accuracy
• +/- 10 % of the full scale value
• +/- 20 % for the HS range
• Carbon Footprint Of The Distribution Phase A4
• 0.017391935718440953
• 0 kg CO2 eq.
• Tightening Torque
• 0.6-1 N.m IEC 60947-1
• Minimum Switching Current
• 10 mA 5 V DC
• Repeat Accuracy
• +/- 2 % time delay
• Maximum Power Consumption In Va
• 5 VA AC
• Utilisation Category
• AC-12 IEC 60947-5-1
• AC-13 IEC 60947-5-1
• AC-14 IEC 60947-5-1
• AC-15 IEC 60947-5-1
• DC-12 IEC 60947-5-1
• DC-13 IEC 60947-5-1
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Operating Rate
• <= 360 operations/hour full load
• Maximum Power Consumption In W
• 1.5 W DC
• Local Signalling
• LED (yellow) for relay ON
• LED (green) for power ON
• LED (yellow) for timer ON
• Product Certifications
• GOST
• CSA
• UL
• GL
• C-tick

• Conformance Attributes
• Standards : IEC 60255-6
• Complementary Attributes
• Control Circuit Voltage Limits : - 15 % + 10 % Un
• Line Rated Current : 5 A
• Maximum Supply Current For Sensors : 40 mA
• Uc Control Circuit Voltage : 24...240 V
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-07
• ETIM 10 : EC001447
• Manufacturing Carbon Footprint : 8.95583624200116
• Distribution Carbon Footprint : 1.7391935718441e-02
• Installation Carbon Footprint : 4.31543993600931e-02
• Use Carbon Footprint : 50.262
• End Of Life Carbon Footprint : 0.249684482257126
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1601004EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1918
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RM3
• Contacts Type And Composition : 2 C/O
• Control Type : without test button
• Electrical Durability : 100000 cycles
• Functionality : discrete sensor detection
• Housing Material : self-extinguishing plastic
• Mechanical Durability : 30000000 cycles
• Package Weight Lbs : 133 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : level control relay
• Range Of Product : Harmony Control Relays
• Relay Monitored Parameters : detection by discrete sensors
• Relay Name : RM35L
• Relay Type : level control relay
• Returnability : Yes
• Run Up Delay At Power Up : 0.5 s
• Sensitivity Adjustment : 5-100 %
• Sustainable Packaging : Yes
• Switching Capacity In Va : 1250 VA
• Total Lifecycle Carbon Footprint : 60 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 59.52806705933682
• General Attributes
• Product Or Component Type : level control relay
• Range Of Product : Harmony Control Relays
• Output Attributes
• Nominal Output Current : 5 A
• Output Contacts : 1 C/O
• Environment Attributes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=648366&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 59.5280670593368
• Ambient Air Temperature For Operation : -20-50 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI1601004EN
• Environmental Disclosure : ENVPEP1601004EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
• Width : 1.38 in
