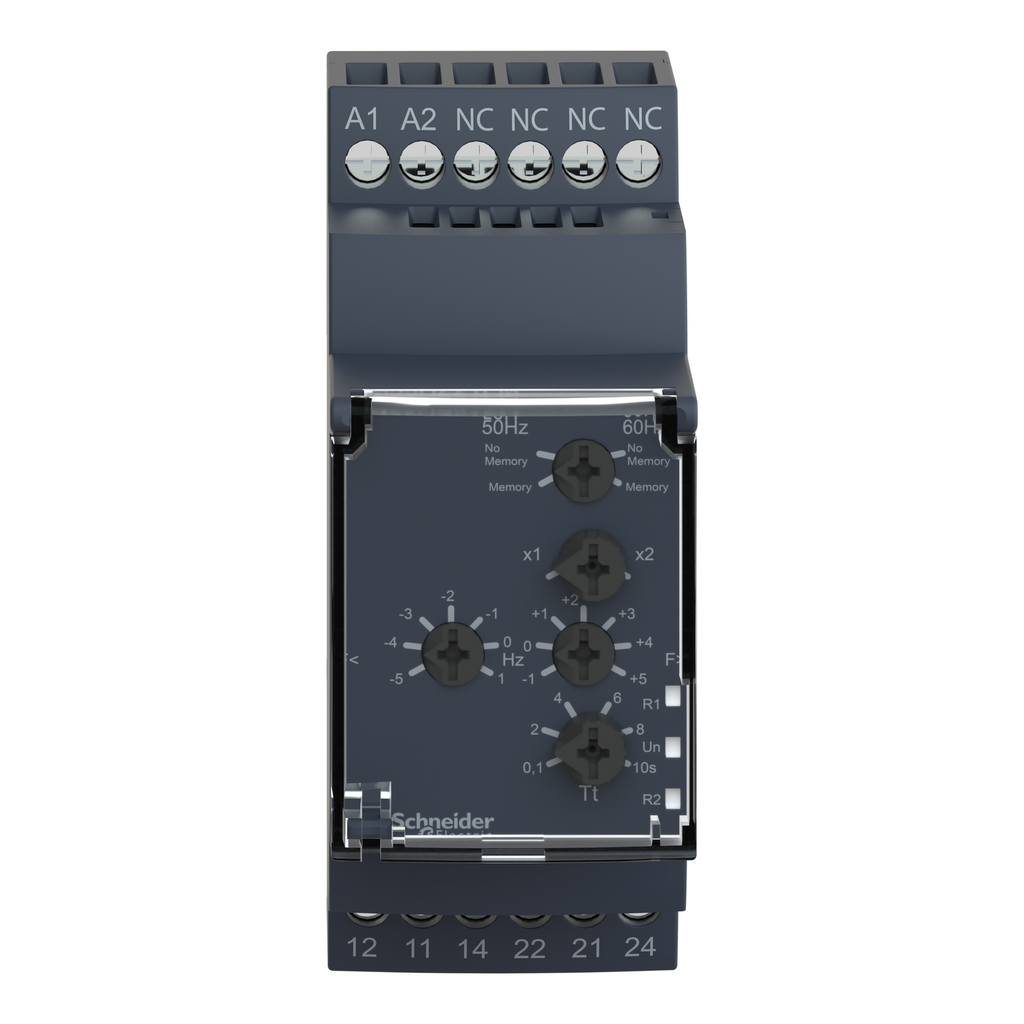

This Harmony RM35-HZ control relay allows monitoring of frequency control. This modular control relay is ideal for monitoring of frequency variations in electrical power sources such as wind turbine and micro-power stations. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides an automatic detection of abnormal electrical values before they incur serious damage to machinery thus reducing your maintenance and downtime costs. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0

• Environment
• Product Certifications : GL || UL || CSA || C-tick || GOST
• Ambient Air Temperature For Operation : -20-50 °C
• Standards : IEC 60255-6 || NF EN 60255-6
• Immunity To Microbreaks : 10 ms
• Dielectric Test Voltage : 2 kV AC 50 Hz
• Electromagnetic Compatibility : emission standard for industrial environments IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
• Shock Resistance : 15 gn 11 ms IEC 60255-21-1
• Vibration Resistance : 0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
• Ip Degree Of Protection : IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
• Pollution Degree : 3 IEC 60664-1
• Ambient Air Temperature For Storage : -40-70 °C
• Relative Humidity : 95-95 % 55-55 °C IEC 60068-2-30
• Non-Dissipating Shock Wave : 4 kV
• Contractual warranty
• Warranty : 18 months
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1504008EN
• Sustainable Offer Status : Green Premium product
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation : X
• Circularity Profile : ENVEOLI1504008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Complementary
• Maximum Measuring Cycle : 200 ms measurement cycle as true rms value
• Hysteresis : 0.3-0.3 % fixed
• Insulation Resistance : > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
• Measurement Error : +/- 0.05 %/°C with temperature variation || < +/- 1 % over the whole range with voltage variation
• [Us] Rated Supply Voltage : AC non self-powered
• Operating Rate : <= 360 operations/hour full load
• Status Led : 1 LED Green power ON || 1 LED Yellow correct frequency (high R1) || 1 LED Yellow correct frequency (low R2)
• Output Contacts : 1 C/O + 1 C/O
• Contacts Material : cadmium free
• Marking : CE : 73/23/EEC || CE : EMC 89/336/EEC
• Operating Position : any position without derating
• Threshold Setting : -2...10 Hz || -10...2 Hz
• Maximum Switching Voltage : 250 V AC/DC
• Control Type : without test button
• Reset Time : 2000 ms time delay
• Connections - Terminals : screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
• [Ui] Rated Insulation Voltage : 400 V IEC 60664-1
• Overvoltage Category : III IEC 60664-1
• Insulation : no galvanic insulation between supply and measurement
• Supply Voltage Limits : 102-308 V AC
• Mounting Support : 35 mm symmetrical DIN rail conforming to IEC 60715
• Nominal Output Current : 5 A
• Mechanical Durability : 30000000 cycles
• Input Frequency : 70 Hz
• Housing Material : self-extinguishing plastic
• Control Circuit Voltage Limits : 15 % + 10 % Un
• Control Circuit Frequency : 40...70 Hz
• Measurement Accuracy : +/- 10 % of the full scale value in input || +/- 10 % of the full scale value in time delay
• Width : 35 mm
• Tightening Torque : 0.6-1 N.m IEC 60947-1
• Electrical Durability : 100000 cycles
• [Us] Rated Supply Voltage : 120...277 V AC
• Run-Up Delay At Power-Up : 0.5 s
• Repeat Accuracy : +/- 0.5 % input and measurement circuit || +/- 0.5 % time delay
• Supply Frequency : 50/60 Hz +/- 10 %
• Specifications
• Minimum Switching Current : 10 mA 5 V DC
• Range Of Product : Harmony Control Relays
• Measurement Range : 40...70 Hz frequency
• Switching Capacity In Va : 1250 VA
• Product Or Component Type : frequency control relay
• Utilisation Category : AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
• Relay Name : RM35HZ21FM
• Relay Type : frequency control relays
• Time Delay Type : adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault
• Relay Monitored Parameters : overfrequency and underfrequency 50 or 60 Hz
• Maximum Power Consumption In Va : 6 VA AC
