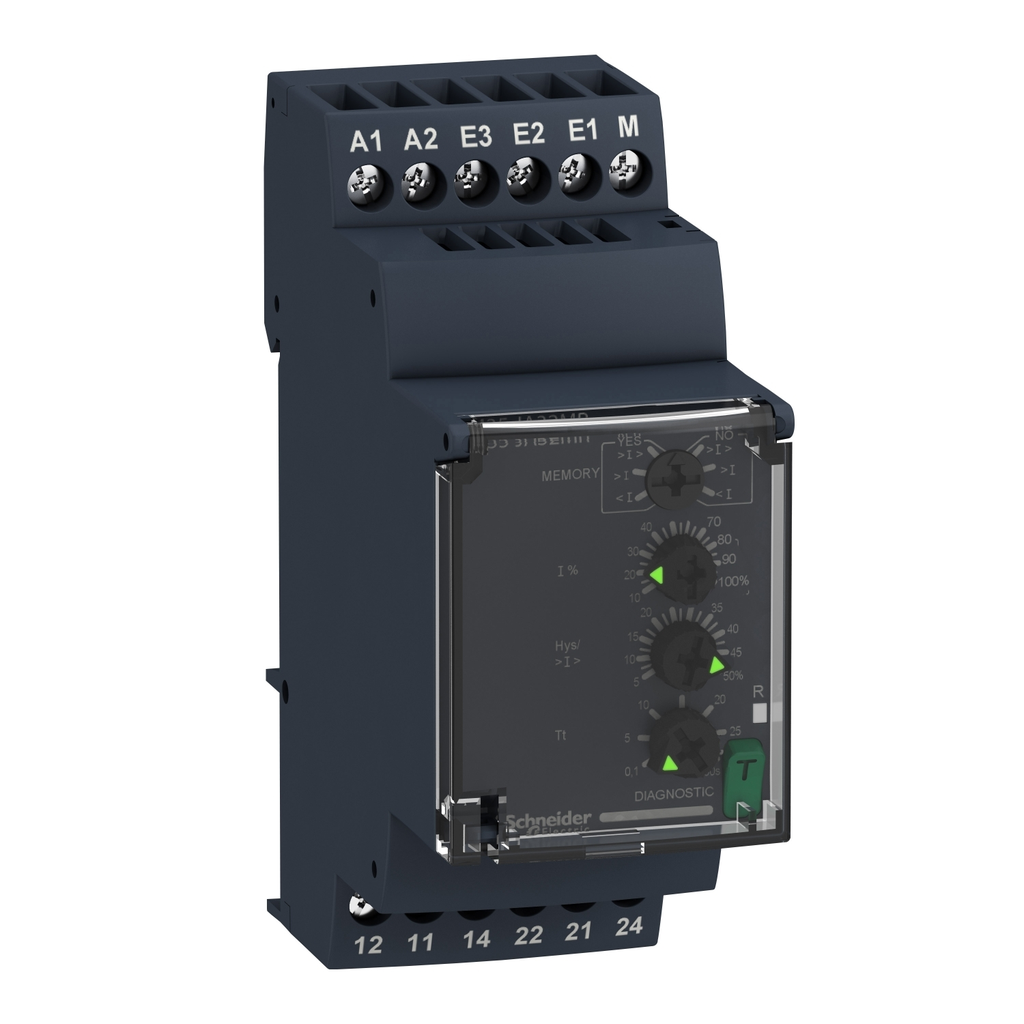

This Harmony RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to

• Insulation Resistance
• > 100 MOhm 500 V DC IEC 60255-27
• Safety Reliability Data
• MTTFd = 296.8 years
• B10d = 270000
• Connections Terminals
• screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end
• screw terminal
• Overvoltage Category
• III conforming to IEC 60664-1
• III conforming to UL 508
• Mounting Support
• 35 mm DIN rail conforming to IEC 60715
• Supply Voltage Limits
• 20.4-264 V AC/DC
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Response Time
• <= 500 ms (on crossing the threshold)
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.0005987018
• Switching Threshold Drift
• <= 0.05 % per degree centigrade depending permissible ambient air temperature
• <= 1 % within the supply voltage range
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.0697287273
• 0.1 kg CO2 eq.
• Maximum Switching Voltage
• 250 V AC
• Ip Degree Of Protection
• IP20 IEC 60529 terminals)
• IP50 IEC 60529 front panel)
• IP30 IEC 60529 housing)
• Dielectric Test Voltage
• 2.5 kV AC 50 Hz, 1 min IEC 60255-27
• Maximum Measuring Cycle
• 100 ms measurement cycle as true rms value
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 2 kg CO2 eq.
• 2.4665454545
• Maximum Switching Current
• 8 A AC
• Time Delay Drift
• <= 0.05 % per degree centigrade depending permissible ambient air temperature
• <= 1 % within the supply voltage range
• Time Delay Type
• adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault
• adjustab
• Measurement Range
• 150 mA...15 A AC/DC
• Reset Time
• 1500 ms at maximum voltage
• Vibration Resistance
• 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6
• 1 gn 10-58.1 Hz) not in operation IEC 60068-2-
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Measurement Error
• < 1 % over the whole range with voltage variation
• 0.05 %/°C with temperature variation
• Environmental Characteristic
• 3K3 C
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 41 kg CO2 eq.
• 41.20256
• Electromagnetic Compatibility
• immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1
• immunity for industrial environments conforming to IEC 6
• Hysteresis
• 5-50 % adjustable threshold setting
• 3-3 % fixed full scale for window mode
• Relative Humidity
• 93-97 % 25-55 °C IEC 60068-2-30
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Us Rated Supply Voltage
• 24...240 V AC/DC 50/60 Hz, non self-powered
• Relay Monitored Parameters
• overcurrent or undercurrent in window mode
• overcurrent or undercurrent detection
• Carbon Footprint Of The Distribution Phase A4
• 0.0154821818
• 0 kg CO2 eq.
• Tightening Torque
• 0.6-1 N.m IEC 60947-1
• Minimum Switching Current
• 10 mA 5 V DC
• Repeat Accuracy
• +/- 0.5 % input and measurement circuit
• +/- 2 % time delay
• Utilisation Category
• AC-15 IEC 60947-5-1
• DC-13 IEC 60947-5-1
• AC-1 IEC 60947-4-1
• DC-1 IEC 60947-4-1
• Resistance Across Terminals
• 0.005 Ohm E3-M terminals
• 0.015 Ohm E2-M terminals
• 0.05 Ohm E1-M terminals
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 15 gn 11 ms) not in operation IEC 60068-2-27
• 5 gn 11 ms) in operation IEC 60068-2-27
• 5 gn 11 ms) in operation IEC 60068
• Maximum Power Consumption In W
• 1.5 W DC
• Local Signalling
• LED (yellow) for relay ON
• LED (green) for power ON
• Ambient Air Temperature For Operation
• -20-50 °C 60 Hz
• -20-60 °C 50 Hz
• Internal Input Resistance
• 0.015 Ohm
• 0.005 Ohm
• 0.05 Ohm
• Product Certifications
• CE
• GL
• CCC
• EAC
• RCM
• UL
• CSA

• Conformance Attributes
• Standards : IEC 60255-1
• Complementary Attributes
• Control Circuit Voltage Limits : - 15 % + 10 % Un
• Line Rated Current : 8 A
• Maximum Power Consumption In Va : 3.5 VA
• Uc Control Circuit Voltage : 24...240 V
• Important Information Attributes
• Country Id : US
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-07
• ETIM 10 : EC001440
• Html Descr : Current Control RelayNominal Output Current: 8ASupply Voltage Limits: 20.4-264V AC/DCMounting Position: Any
• Manufacturer : Schneider Electric
• Manufacturing Carbon Footprint : 2.4665454545
• Distribution Carbon Footprint : 0.0154821818
• Installation Carbon Footprint : 0.0005987018
• Use Carbon Footprint : 41.20256
• End Of Life Carbon Footprint : 0.0697287273
• Legacy WEEE Scope : Out
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1601004EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1918
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Compatibility Code : RM3
• Contacts Material : cadmium free
• Contacts Type And Composition : 2 C/O
• Control Type : with test button
• Electrical Durability : 100000 cycles
• Functionality : overcurrent or undercurrent detection
• Housing Material : self-extinguishing plastic
• Immunity To Microbreaks : 50 ms
• Insulation : between supply and measurement
• Mechanical Durability : 10000000 cycles
• Package Weight Lbs : 140.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : current control relay
• Range Of Product : Harmony Control Relays
• Relay Name : RM35JA
• Relay Type : current control relay
• Returnability : Yes
• Run Up Delay At Power Up : 0.3 s
• Setting Accuracy Of The Switching Threshold : +/- 10 % of the full scale
• Setting Accuracy Of Time Delay : 10 P
• Sustainable Packaging : Yes
• Switching Capacity In Va : 2000 VA
• Threshold Setting : 10...100 %
• Total Lifecycle Carbon Footprint : 44 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 43.7549150655
• Relationshiptype : cross-selling relationship
• General Attributes
• Product Or Component Type : current control relay
• Range Of Product : Harmony Control Relays
• Output Attributes
• Nominal Output Current : 8 A
• Output Contacts : 2 C/O
• Environment Attributes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=421889565&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 43.7549150655
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI1601004EN
• Environmental Disclosure : ENVPEP1601004EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Indonesia
• Width : 1.38 in
