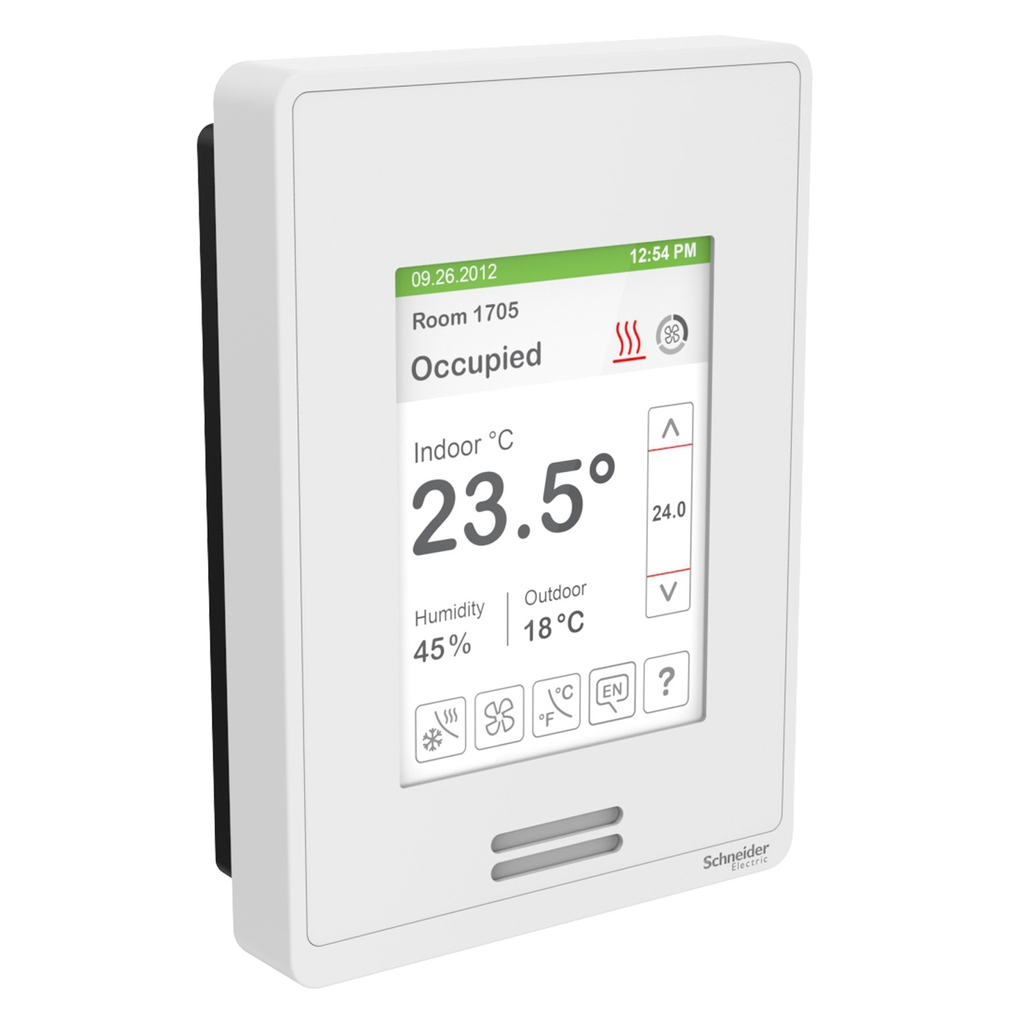

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, PIR motion sensor, White Case/Fascia [TAA]

Line voltage fan coil Controll

SQDSER8350A5B11 SER8350A5B11 3606480772207
565.92 / EA
http://schema.org/OutOfStock
Mayer-DDS-Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, PIR motion sensor, White Case/Fascia [TAA]-2
  • Depth: 25 mm
  • Input Voltage: ...10 V
  • Output Voltage: ...10 V, 24 V
  • Surface Finish: Matte
  • Weight: 163 g
SER8300 Series room controllers are used for Line Voltage Fan Coil Unit control with SC3000 Relay Packs. The room controllers rated supply voltage is 7V DC at 2.4watts or 24V AC 50/60Hz Class 2, 4VA. The room controller is colored white and is equiped with a communication port that uses BACnet MS/TP protocol and a PIR sensor. Its Room and Outdoor Air Temperature Display Range is between -40 and 50 oC. The measurement accuracy is +/- 0.5%. The temperature setting range is 12 to 37.5oC for cooling and 4.5 to 32 oC for heating. The room controller is equiped with 2 digital inputs, 5 analog inputs (5 to 10V), 4 analog outputs, and 5 digital outputs. The analog output voltage is 0 to 10V DC at 2 kOhm resistance. The digital output rating is 28V AC 50 or 60 Hz, 0.3A, 1.5A inrush current. The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B, ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2. The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive. The ambient air temperature for operation is between 0 and 50oC. The relative humidity for operating or storage is between 0 and 75% non condensing. The humidity reading range is 10 to 90% RH non-condensing.
QTY
  • Product Description
  • Features
  • Specifications
SER8300 Series room controllers are used for Line Voltage Fan Coil Unit control with SC3000 Relay Packs. The room controllers rated supply voltage is 7V DC at 2.4watts or 24V AC 50/60Hz Class 2, 4VA. The room controller is colored white and is equiped with a communication port that uses BACnet MS/TP protocol and a PIR sensor. Its Room and Outdoor Air Temperature Display Range is between -40 and 50 oC. The measurement accuracy is +/- 0.5%. The temperature setting range is 12 to 37.5oC for cooling and 4.5 to 32 oC for heating. The room controller is equiped with 2 digital inputs, 5 analog inputs (5 to 10V), 4 analog outputs, and 5 digital outputs. The analog output voltage is 0 to 10V DC at 2 kOhm resistance. The digital output rating is 28V AC 50 or 60 Hz, 0.3A, 1.5A inrush current. The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B, ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2. The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive. The ambient air temperature for operation is between 0 and 50oC. The relative humidity for operating or storage is between 0 and 75% non condensing. The humidity reading range is 10 to 90% RH non-condensing.
  • Features
    • Elegant style combinations, designed to complement any decor
    • Colored Touch screen interface with multi language support
    • Reduce installation time, no complex software or tools required to customize functionality to meet your requirements
    • Different connectivity options by supporting Wired and wireless protocols
    • Ideal for retrofit sites with Remote relay pack connectivity using 3 wire cable
    • PIR motion sensor built-in to improve energy efficiency and automated setpoint
  • Prop 65
    • WARNING: This product can expose you to chemicals including: LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Communications & Management Attributes
    • Communication Port Protocol : BACnet MS/TP, Modbus RTU
  • Complementary Attributes
    • Line Rated Current : 4 A
  • Important Information Attributes
    • Market Segment : Lodging/Hotel, small commercial, buildings, healthcare, non-critical buildings, office, residential, school
    • Sensor Type : 10 kOhm T2 NTC thermistor Temperaturespace RH sensor Humidity, bulk polymer Humidity
    • Certificate Agency : EN/IEC 60730-1, FCC part 15 Subpart B, ICES-003, ETSI EN 300 328ETSI EN 301 489-1:v1.9.2, FCC part 15 Subpart C, UL 60730-2-9ETSI EN 301 489-17:v2.2.1, 2012
    • Carbon Footprint Of The Distribution Phase A4 : 0.3949218679679939, 0.4 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.4 kg CO2 eq., 0.39312326274084003
    • Carbon Footprint Of The Installation Phase A5 : 0.009271543473116126, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 12 kg CO2 eq., 11.939906257718295
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 159 kg CO2 eq., 158.71402126211765
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-10
    • Return Indicator : Y
    • Device Type : HVAC control devices - HVAC room controller
    • Serviceability : Yes
    • Traceability : Yes
    • Field Service Division : DBIBS
    • Average Life Duration : 15 year(s)
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2405011
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : Yes
    • Rohs Eur Status : Compliant By Exemption
    • Rohs Eur Conformity Date : 2047
    • Rohs Eur Full Compliance Status : Compliant By Exemption
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Awg Gauge : 24 AWG...18 AWG
    • Device Application : line voltage fan coil
    • Device Short Name : SER8300
    • Economizer : Yes
    • Energy Efficiency Optimized : False
    • Humidity Control : Yes
    • Pir Cover : Yes
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Name : SE8000 Series
    • Product Or Component Type : room controller
    • Range : SpaceLogic
    • Returnability : Yes
    • Scheduling : No
    • Software Version : v6.2.2
    • Surface Finish : Matte
    • Surface Treatment : untreated
    • Sustainable Packaging : No
    • Temperature Resolution : 0.1 °C
    • Temperature Setting Range : 12-37.5 °C cooling4.5-32 °C heating
    • Total Lifecycle Carbon Footprint : 171 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Housing Color : white
    • Database Version : 2024-04
    • Data Source : extrapolated product
    • Height Nominal : 120 mm
    • Width Nominal : 86 mm
    • Nbr. Of Units In Pkg. : 1
    • Customs Code : 9032100030
    • Warranty In Months : 18
    • Functional Unit Description : Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 285.9264
  • Environment Attributes Main
    • Ambient Air Temperature For Storage : -30-50 °C, -30-50 °C
    • Directives : 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 171.4512441940179
    • Ambient Air Temperature For Operation : 0-50 °C
    • Circularity Profile : ENVEOLI2405011
    • Environmental Disclosure : ENVPEP2405011EN
    • Eu Rohs Directive : Compliant By Exemption
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Relative Humidity : 0-95 %
    • Pep Code : ENVPEP2405011EN
    • Pep Verification Date : 2024-08-05
    • Pcr Version : PCR-4-ed4-EN-2021 09 06
    • Psr Version : PSR-0005-ed3.1-EN-2023 12 08
    • Type Of Verification For The Pep : Independent external review
  • General Attributes
    • Product Or Component Type : room controller
  • ETIM
    • ETIM 8 : EC001101
    • ETIM 9 : EC001101
    • ETIM 10 : EC001101
  • Output Attributes
    • Output Voltage : 24 V AC relay output, 0...10 V DC analog output
    • Output Current : 1 A relay output
    • Output Type : 5 xrelay output4 xuniversal
  • Input Attributes
    • Input Type : dry contact 2analog 5
    • Input Voltage : 0...10 V DC
  • Specifications
    • Country of Origin : Mexico, United States
    • Compliance : TAA Compliant
    • Weight : 163 g
    • Depth : 25 mm
