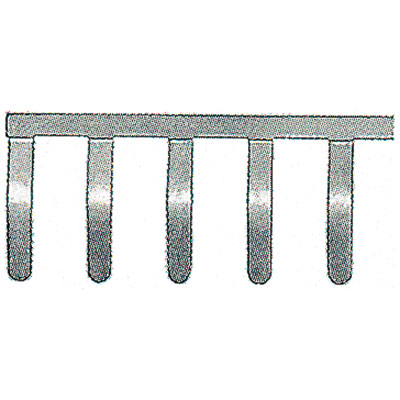

QB 58/8/15

TERM JUMPER 27A 58P

WEI0545400000 4008190028794
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-QB 58/8/15-1
  • Current: 27 A
  • Depth: 0.689 in, 17.5 mm
  • Height: 18.051 in, 458.5 mm
  • Material: Copper
  • Net Weight: 21.96 g
  • Pitch: 8 mm
  • Storage Temperature: 10 °C...40 °C
  • Width: 0.031 in, 0.8 mm
SAK Series, Cross-connector, for cross-connection link, Number of poles: 58
QTY
  • Product Description
  • Specifications
SAK Series, Cross-connector, for cross-connection link, Number of poles: 58
  • Approvals
    • Approvals : EAC
    • ROHS : Conform
  • Dimensions And Weights
    • Width : 0.8 mm
    • Width (inches) : 0.031 inch
    • Height : 458.5 mm
    • Height (inches) : 18.051 inch
    • Depth : 17.5 mm
    • Depth (inches) : 0.689 inch
    • Net weight : 21.96 g
  • Dimensions
    • Pitch in mm (P) : 8 mm
  • Additional Technical Data
    • Explosion-tested version : No
    • Installation advice : Direct mounting
    • Type of fixing : when screwed in
  • Material Data
    • Material : Copper
    • Colour : grey
  • Classifications
    • ETIM 6.0 : EC000489
    • ETIM 7.0 : EC000489
    • eClass 9.0 : 27-14-11-40
    • eClass 9.1 : 27-14-11-40
    • eClass 10.0 : 27-14-11-40
    • UNSPSC : 30-21-18-01
  • System Specifications
    • Version : for cross-connection link
  • Temperatures
    • Storage temperature, max. : 40 °C
    • Storage temperature, min. : 10 °C
    • Storage temperature : 10 °C...40 °C
  • Rating Data
    • Rated current : 27 A
