Current-measuring transducer, Limit value monitoring, Signal converter/isolator, Current monitoring, Analogue output, Screw connection, Input measurement range: configurable, 0…1/5/10 A AC (RMS) or DC

• General Data
• Accuracy : ≤ ±0.3 % @ 1 A ⁄ 5 A, ≤ ±0.6 % @ 10 A
• Configuration : DIP switch and potentiometer
• Galvanic isolation : 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
• Power consumption, max. : 2.2 W
• Rail : TS 35
• Step response time : ≤ 300 ms (RMS), ≤ 60 ms (AA)
• Temperature coefficient : ≤ ±100 ppm⁄K @ -25…+55 °C, ≤ ±200 ppm/K @ +55…+70 °C
• Voltage supply : 16,8 V…31,2 V
• Probability Of Failure
• MTTF : 130 Years
• Approvals
• Approvals : CULUS, DNV GL, EAC
• ROHS : Conform
• UL File Number Search : E141197
• Dimensions And Weights
• Width : 17.5 mm
• Width (inches) : 0.689 inch
• Height : 119.2 mm
• Height (inches) : 4.693 inch
• Depth : 113.6 mm
• Depth (inches) : 4.472 inch
• Net weight : 141 g
• Output (Digital)
• Alarm function : Surge current, Under-current, Alarm delay: 0...10 s
• Number of digital outputs : 1
• Type : Relay, 1 CO contact, normal / inverse adjustment
• Max. switching voltage, DC : 24 V
• Max. switching voltage, AC : 250 V
• Rated switching current : 2 A
• Connection Data
• Type of connection : Screw connection
• Tightening torque, min. : 0.4 Nm
• Tightening torque, max. : 0.6 Nm
• Clamping range, rated connection : 1.5 mm²
• Clamping range, min. : 0.5 mm²
• Clamping range, max. : 2.5 mm²
• Wire connection cross section AWG, min. : AWG 26
• Wire connection cross section AWG, max. : AWG 12
• Input
• Number of inputs : 1
• Input signal : Power cable can be connected to the terminals
• Input measurement range : configurable, 0…1/5/10 A AC (RMS) or DC
• Input frequency : AC: 15…400 Hz (true root mean square), AC: 50 Hz (arithmetic average)
• Output (Analogue)
• Load resistance current : ≤ 600 Ω
• Load resistance voltage : ≥ 10 kΩ
• Output current : Adjustable, 0...20 mA, 4...20 mA, -20…+20 mA
• Output voltage : Adjustable, 0...10 V, 2…10 V, 0...5 V, 1...5 V, -5…+5 V, -10...+10 V
• Type (analogue output) : Voltage and current output (configurable)
• Classifications
• ETIM 6.0 : EC002475
• ETIM 7.0 : EC002475
• eClass 9.0 : 27-21-01-23
• eClass 9.1 : 27-21-01-23
• eClass 10.0 : 27-21-01-23
• Product Information

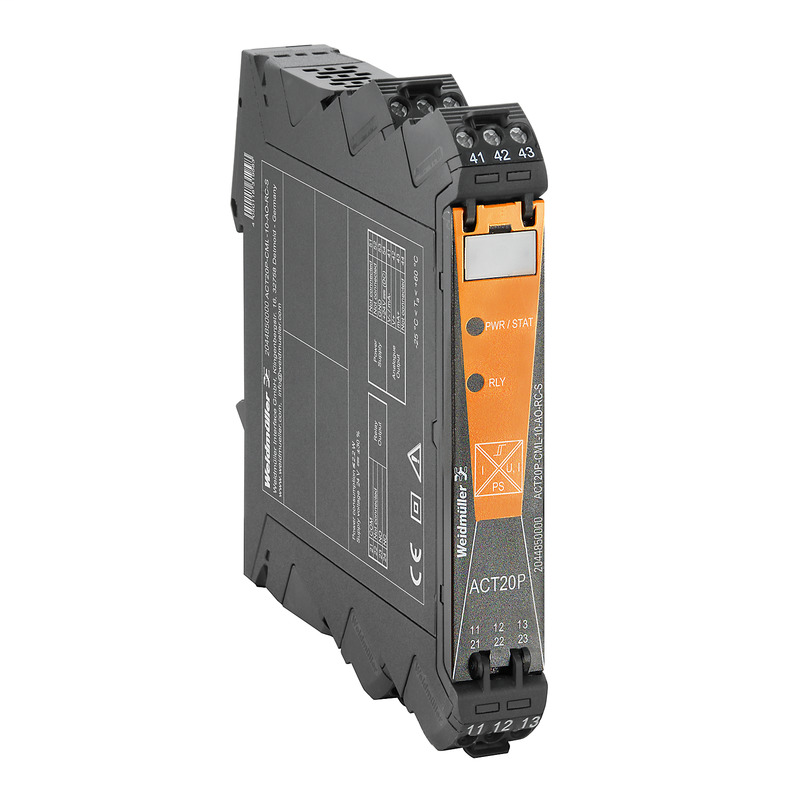

• Product information : The device ACT20P-CML-10-AO-RC-S measures and monitors AC and DC currents of up to 10 A. The real effective value method used allows for precise measurement, even for distorted current curve shapes. The device features an integrated limit value monitoring function with an adjustable switching threshold, lag and hysteresis, as well as a relay output. Features Real effective value measurement (True RMS) or arithmetic averaging (AA) measurement Limit value monitoring for overcurrent or undercurrent Relay output by means of the open-circuit / closed-circuit principle Adjustable trigger delay for filtering current peaks Operational status and error display on a front panel LED and output signalling according to NE43, NE44, NE107 Galvanic four-way insulation for secure isolation according to IEC/EN 61010-2-201
• Environmental Product Compliance
• REACH SVHC : Lead 7439-92-1
• Insulation Coordination
• EMC standards : IEC 61326-1, IEC 61010-2-201
• Galvanic isolation : 4-way isolator;, between input ⁄ output ⁄ supply ⁄ relay
• Impulse withstand voltage : 6 kV (1.2/50 µs)
• Insulation voltage : 4 kVeff / 1 min.
• Pollution severity : 2
• Rated voltage : 300 V ACrms
• Surge voltage category : III
• Temperatures
• Humidity : 5...95 %, no condensation
• Operating temperature, max. : 60 °C
• Operating temperature, min. : -25 °C
• Storage temperature, max. : 85 °C
• Storage temperature, min. : -40 °C
• Operating temperature : -25 °C...60 °C
• Ambient temperature : -25 °C...+70 °C
• Storage temperature : -40 °C...85 °C
• Ratings Iecex/Atex/Cul
• Certificate no. (cULus) : E141197
