AAP11 1.5 LI RD

RED DIST. TERM

WEI1988160000 4050118372939

0.00 / EA

http://schema.org/OutOfStock

Mayer-DDS-AAP11 1.5 LI RD-1

Blade Size: 0.4 X 2.0 Mm
Current: 17.5 A
Depth: 1.85 in, 47 mm
Height: 3.366 in, 85.5 mm
Material: Wemid
Net Weight: 8.253 g
Number of Connections: 6
Storage Temperature: 10 °C...40 °C
Voltage: 500 V
Width: 0.138 in, 3.5 mm

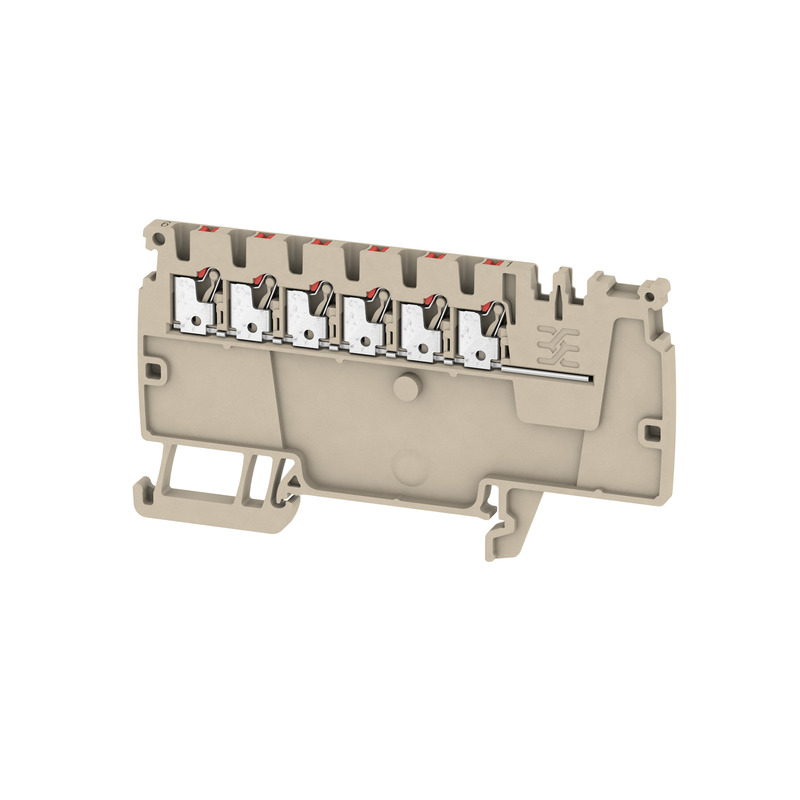

Modular distribution terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige

QTY

Product Description
Specifications

Modular distribution terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige

Approvals

Approvals : BURVER, CE, CSA, cURus, DNV GL, IECEXTUR, TUEVNATEX
ROHS : Conform
UL File Number Search : E60693

Dimensions And Weights

Width : 3.5 mm
Width (inches) : 0.138 inch
Height : 85.5 mm
Height (inches) : 3.366 inch
Depth : 47 mm
Depth (inches) : 1.85 inch
Depth including DIN rail : 48 mm
Net weight : 8.253 g

Csa Rating Data

Certificate No. (CSA) : 200039-70089609
Current size B (CSA) : 13 A
Current size C (CSA) : 13 A
Current size D (CSA) : 5 A
Voltage size B (CSA) : 300 V
Voltage size C (CSA) : 300 V
Voltage size D (CSA) : 600 V
Wire cross section max. (CSA) : 14 AWG
Wire cross section min. (CSA) : 26 AWG

Additional Technical Data

Installation advice : Rail
Open sides : right
Snap-on : No
Type of fixing : Snap-on
Type of mounting : TS 35
With snap-in pegs : No

Material Data

Material : Wemid
Colour : dark beige
Colour of operational elements : red
UL 94 flammability rating : V-0

Safety Note

Safety notice : Safety Information

Classifications

ETIM 6.0 : EC000897
ETIM 7.0 : EC000897
eClass 9.0 : 27-14-11-20
eClass 9.1 : 27-14-11-20
eClass 10.0 : 27-14-11-20

System Specifications

End cover plate required : Yes
Number of potentials : 1
Number of levels : 1
Number of clamping points per level : 6
Number of potentials per tier : 1
Levels cross-connected internally : No
PE connection : No
Rail : TS 35
N-function : No
PE function : No
PEN function : No

Temperatures

Storage temperature, max. : 40 °C
Storage temperature, min. : 10 °C
Storage temperature : 10 °C...40 °C
Continuous operating temp., min. : -60 °C
Continuous operating temp., max. : 130 °C

Rating Data

Rated cross-section : 1.5 mm²
Rated voltage : 500 V
Rated current : 17.5 A
Current at maximum wires : 17.5 A
Standards : IEC/EN 60947-7-1:2009
Volume resistance according to IEC 60947-7-x : 1.83 mΩ
Power loss in accordance with IEC 60947-7-x : 0.56 W
Rated impulse withstand voltage : 6 kV
Pollution severity : 3
Surge voltage category : III

Rating Data Iecex/Atex

Certificate No. (ATEX) : TUEV17ATEX8030U
Certificate No. (IECEX) : IECEXTUR17.0015U
Max. voltage (ATEX) : 550 V
Current (ATEX) : 13 A
Wire cross section max. (ATEX) : 1.5 mm²
Max. voltage (IECEX) : 550 V
Current (IECEX) : 13 A
Wire cross section max. (IECEX) : 1.5 mm²
Marking EN 60079-7 : Ex eb II C Gb
Ex 2014/34/EU label : II 2 G D

Conductors For Clamping (Rated Connection)

Blade size : 0.4 x 2.0 mm
Clamping range, max. : 1.5 mm²
Clamping range, min. : 0.14 mm²
Connection cross-section, stranded, max. : 1.5 mm²
Connection cross-section, stranded, min. : 0.5 mm²
Connection direction : top
Gauge to IEC 60947-1 : A1
Number of connections : 6
Stripping length : 8 mm
Type of connection : PUSH IN
Wire connection cross section AWG, max. : AWG 14
Wire connection cross section AWG, min. : AWG 26
Wire connection cross section, finely stranded, max. : 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. : 1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. : 0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. : 1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. : 0.5 mm²
Wire connection cross-section, finely stranded, min. : 0.5 mm²
Wire connection cross-section, solid core, max. : 1.5 mm²
Wire connection cross-section, solid core, min. : 0.5 mm²

Ul Rating Data

Certificate No. (cURus) : E60693
Conductor size Factory wiring max. (cURus) : 14 AWG
Conductor size Factory wiring min. (cURus) : 26 AWG
Conductor size Field wiring max. (cURus) : 14 AWG
Conductor size Field wiring min. (cURus) : 26 AWG
Current size B (cURus) : 13 A
Current size C (cURus) : 13 A
Current size D (cURus) : 5 A
Voltage size B (cURus) : 300 V
Voltage size C (cURus) : 300 V
Voltage size D (cURus) : 600 V
