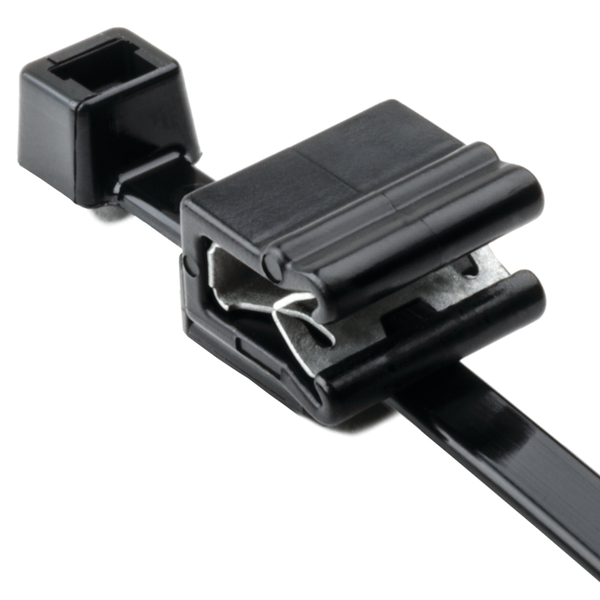

HellermannTyton's Two Piece Edge Clip with Cable Tie Assemblies are designed specifically to route bundles by securing them to the edge of a plastic or metal sheet without the need for a mounting hole. The clip is easy to secure and the extraction force is high due to the integrated metal clamp that holds the edge clip in place.

• Features
• Edge Clip applies easily to plastic and metal sheets without the need for a mounting hole.
• Edge Clip provides low insertion force and high extraction force ideal for assembly environments.

• Specifications
• Use Conditions : For Indoor Use Only
• Storage Conditions : Standard
• Material : Polyamide 6.6 heat stabilized (PA66HS);Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
• Operating Temperature : -40°F to +221°F (-40°C to +105°C);-40°F to +230°F (-40°C to +110°C)
• Color : Black (BK)
• Height H : 0.05"; 1.20 mm
• Length L : 8.0"; 203.2 mm
• Width W : 0.18"; 4.6 mm
• Bundle Diameter Max. : 2.0"; 50.0 mm
• Bundle Diameter Min. : 0.20"; 5.0 mm
• Fixation Method : Edge Clip
• Height H2 : .61"; 15.50 mm
• Identification Plate Position : none
• Length L2 : 0.55"; 14.0 mm
• Panel Thickness : 0.04 - 0.12"; 1.0 - 3.0 mm
• Panel Thickness Max. : 0.12"; 3.0 mm
• Panel Thickness Min. : 0.04"; 1.0 mm
• Tensile Strength Min. : 50.0 lbs; 225 N
• Thickness T : 0.05"; 1.2 mm
• Toothing (Serration) : Inside Serrated
• Width W2 : 0.39"; 10.0 mm
• Ratings and Certifications
• CE Certified : No
• CSA Certified : No
• ECCN Number : EAR99
• REACh Reg. Art.33 does not contain SVHC : No
• ROHS Compliant : Yes
• UL Listed (US) : No
• UL Listed (US and Canada) : No
• UL Recognized (US) : No
• UL Recognized (US and Canada) : No
• UV Resistant (Yes/No) : No
