SQUARE D

USB charger + socket-outlet, X Series, 15 A socket, 5.4 A USB A/C, duplex, tamper resistant, white, matte finish

USB A/C 5.4A CHARGR TR DUPLX 1

SQDSQR55153WH SQR55153WH 785901546467
0.00 / EA
http://schema.org/OutOfStock
  • Depth: 44 mm
  • Number of Gangs: 1
  • Surface Finish: Matte
  • Warranty Length: 2 yr

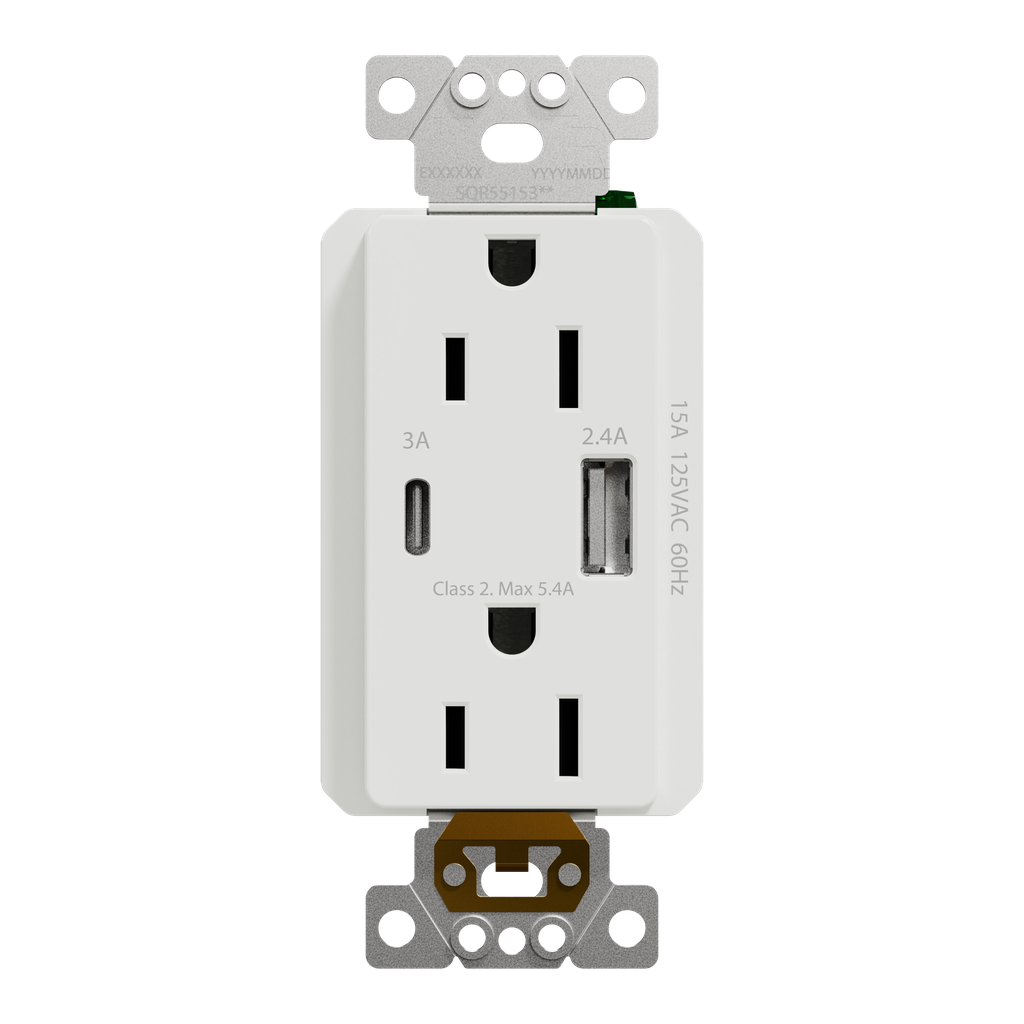

The Square D X Series USB A/C Duplex Decorator Tamper Resistant Outlet with back wire clamps combines a traditional receptacle with modern USB-A and USB-C charging into a single receptacle. Users can plug 2 USB cables and 2 power cords at the same time for applications where power density is important. This device supports 5 volts DC and up to 2.4A for USB A port and 3A USB C port (5.4A total) to quickly charge modern electronic devices. The mechanism with fixing frame belongs to X Series aesthetic group. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. Wiring and installation is fast and easy with back wire pressure plate and ground screw pressure plate. It is tamper resistant with invisible black shutters and it features protective painted surface treatment. This USB receptacle benefits from an elegant matt finishing, constituting an added-value for your interior design. It has a width of 44 mm, a height of 103 mm and a depth of 45 mm. This device supports up to 2.4A for USB A port and 3A USB C port (5.4A total) to quickly charge modern electronic devices. The dimensions are (W) 44mm x (H) 103mm x (D) 45mm. This device is white with matte surface finish. Use both USB-A and USB-C ports to charge two devices at the same, adding time-saving convenience to your home. This device is compliant with UL 1310, UL 498 standard and cULus certification.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Features
    • 4-jaw meter socket and aluminum bus bar included
    • (1) 30A - 80A hold-down clip
    • Lifetime warranty
  • Physical Attributes
    • Color : White
  • Conformance Attributes
    • Standards : UL 498, UL 1310, FCC Part 15 class B, ICES-003
    • Product Certifications : cULus
  • Complementary Attributes
    • Integrated Connection Type : 2 socket-outlet 15 A, 1 USB type A 2.4 A, 1 USB type C 3 A
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, SC
    • Persona Type Names : End User, Consumer, Contractor, Electrician
    • Material : plastic: strap, metal: fixing frame
    • Carbon Footprint Of The Distribution Phase A4 : 0.02554643387326747, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 2 kg CO2 eq., 1.560340642528459
    • Carbon Footprint Of The Installation Phase A5 : 0.002751349170583721, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 3 kg CO2 eq., 3.47324172529416
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 396 kg CO2 eq., 395.6585005958941
    • Connections Terminals : phase and neutral 2 screw terminal, earth 1 screw terminal
    • Connections Terminals3 : phase and neutral 2 screw terminal, earth 1 screw terminal
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-05
    • Pre Comm Announcement Date : 2020-10-30
    • Pre Comm Date : 2020-12-18
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Energy
    • H And D Subrange : X SERIES
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : SOCKET OUTLET
    • H And D Enrichment Class 1 : D1
    • H And D Enrichment Class 3 : Socket outlets
    • H And D Enrichment Class 4 : Socket outlet with USB
    • Aesthetic Name : X Series
    • Device Application : power supply
    • Energy Efficiency Optimized : False
    • Market Segment : commercial
    • Mounting Mode : by screws
    • Network Frequency : 60 Hz
    • Network Type : AC
    • Number Of Gangs : 1 gang
    • Outlet Standard : NEMA
    • Package Weight Lbs : 190.5 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : USB charger + socket-outlet
    • Quantity Per Set : 1 piece
    • Range : Square D X Series
    • Returnability : Yes
    • Surface Finish : Matte
    • Sustainable Packaging : Yes
    • Targeted Channel : distributor
    • Total Lifecycle Carbon Footprint : 401 kg CO2 eq.
    • Ue Rated Operational Voltage2 : 125 V
    • Medium Desc : USB charger + socket-outlet, X Series, 15 A socket, 5.4 A USB A/C, duplex, tamper resistant, white, matte finish
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP2011022_V1
    • Database Version : 2024-01
    • Pep Verification Date : 2025-05-23
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : referent product
    • Functional Unit Description : Provide one or more USB connection type charging point(s) X, according to the appropriate use scenario, and for the reference service life of the product of 10 years.
    • Functional Unit Unit : unit
    • Energy Model Manufacturing A1 A3 2 : Electricity Mix; High voltage; 2020; China, CN
    • Energy Model Installation A5 2 : No energy used
    • Energy Model Use B6 2 : Electricity Mix; High voltage; 2020; United States, US
    • Energy Model End Of Life C1 C4 2 : Global, European and French datasets are used.
    • Earth Circuit : self earthing
    • Outlet Poles Configuration : 2 x 2P + E
    • Socket Additional Information : tamper resistant
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 400.72038074676055
    • Environmental Disclosure : ENVPEP2011022_V1
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2011022_V1
    • Pep Verification Date : 2025-05-23
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed3-2023 06 06
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : USB charger + socket-outlet
  • Contractual Warranty Attributes
    • Warranty Period : 2 years
    • Warranty : 2 years
  • Specifications
    • Depth : 44 mm
  • Overview Attributes
    • Device Presentation : mechanism with fixing frame
