Switch, X Series, 15A, single pole, 1 way, white, 30 pcs

Switch, X Series, 15A, single pole, 1 way, white, 30 pcs

SQDSQR14103WH SQR14103WH 785901534570
0.00 / EA
http://schema.org/OutOfStock
  • Depth: 35 mm
  • Number of Gangs: 1
  • Surface Finish: Matte
  • Warranty Length: 2 yr

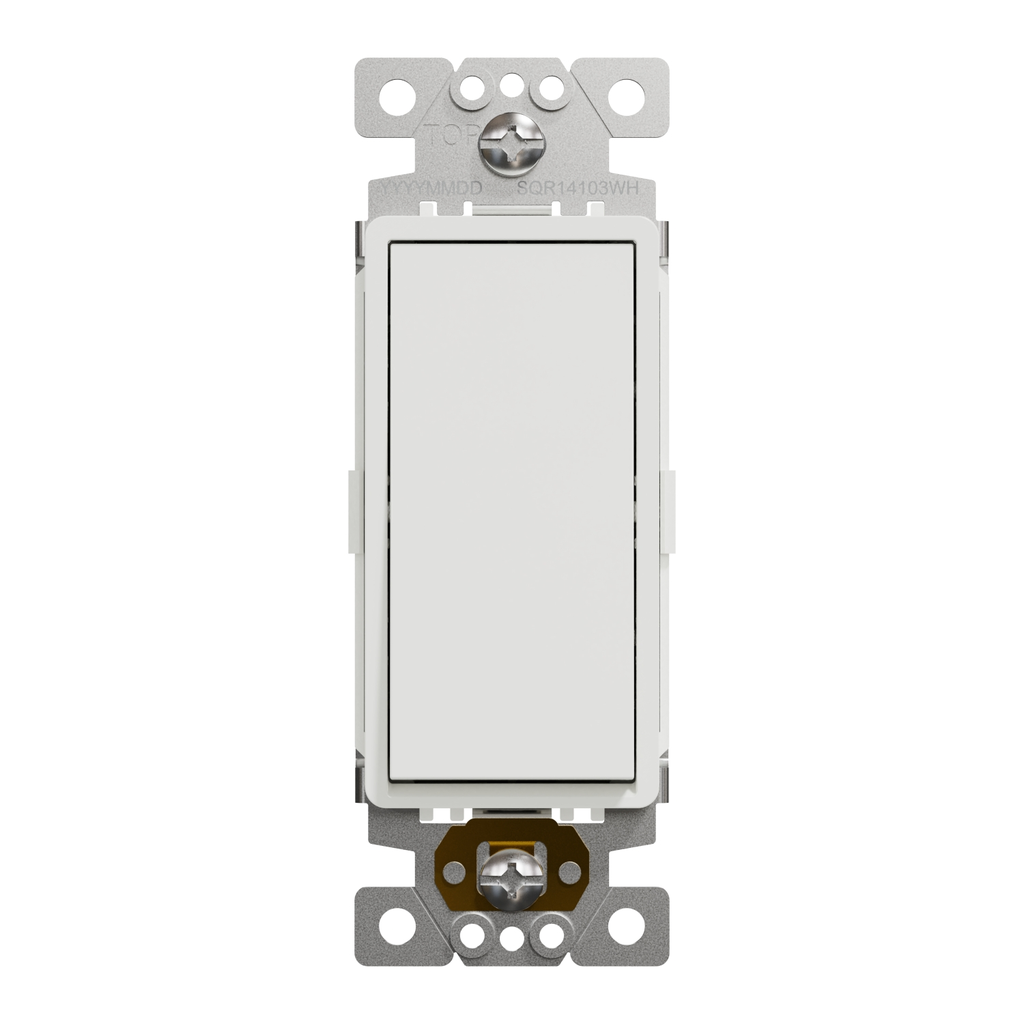

The Square D X Series 15A Single-Pole Switch Module with Side Wire Clamps (with white rocker cover plate) allows you to swap out faceplates quickly and easily without removing the switch and rewiring. The rated operational voltage of this switch is 120V and 277V. Its unique patented switch module is designed to support the swap-out of color rocker plate cover plate that easily snaps into place for a modern, flush-facing finish to your walls. Sold in 30 pieces, the connection are screw terminal. Its matching mounting box can be recessed into the surface of the wall for flush mounting. This device is compatible with the rocker plate and the cover plates of the XD series, so that the personalization of your interior design with many styles of décor is possible. This switch has a white frame. This switch has a width of 37 mm, a height of 103 mm and a depth of 35 mm. The UL certified switch without the rocker plate allows for use during rough-in phase. It supports upgrading the color or design of the switch after initial installation without removing the switch from the wall. Its Ue rated operational voltage is 120VAC. Its Ie rated operational current is 15A. This device enables flush mounting. The dimensions are (W) 37mm x (H) 103mm x (D) 35mm. This product comes with 30 pieces per pack. This device is compliant with UL and cULus certification. Its mercury free and heavy metal free.
QTY
  • Features
  • Specifications
  • Features
    • Requires separate purchase of a Square D X Series rocker cover plate.
    • Patented switch module design supports the swap-out of color rocker plate.
    • Self-grounded with brass ground contact to ensure device’s ground retention to metal boxes
    • Silver alloy switch actuator contacts assures long-lasting reliable performance.
    • Side pressure plates speed installation and accept two 12 copper, solid or stranded wires.
    • Grounding strap hole designed for speed wrapping installation.
    • Combo screw heads accept slotted, Phillips, and Robertson Square tools.
    • Zinc-plated steel mounting strap for rust-resistance.
    • 2-year product warranty.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color : White
    • Main Color Tint : white
    • Color Tint : white
  • Conformance Attributes
    • Product Certifications : cULus
    • Standards : UL 20
  • Important Information Attributes
    • Persona Type Ids : EU, EUA, LC, SC
    • Persona Type Names : End User, Consumer, Contractor, Electrician
    • Material : plastic: strap, metal: fixing frame
    • Ue Rated Operational Voltage2 : 120 V, 277 V
    • Connections Terminals : phase and neutral 2 screw terminal AWG 14...AWG 12) copper, phase and neutral 2 push-in termination AWG 14), solid copper, earth 1 screw terminal copper
    • Connections Terminals3 : phase and neutral 2 screw terminal AWG 14...AWG 12) copper, phase and neutral 2 push-in termination AWG 14), solid copper, earth 1 screw terminal copper
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Pre Comm Date : 2020-03-11
    • Legacy WEEE Scope : In
    • Scope Perimeter : Outside of Europe
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Compliant
    • ROHS EUR Full Compliance Status Id : COMPLIANT
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Market Segmentation Id : RESIDENTIAL
    • Market Segmentation : Residential
    • H And D Domain : Lighting
    • H And D Subrange : X SERIES
    • H And D Enrichment Assignment : no
    • H And D Enrichment Function : SWITCH/PB
    • H And D Enrichment Class 1 : D1
    • H And D Enrichment Class 3 : Switches
    • H And D Enrichment Class 4 : Switch mechanical
    • Aesthetic Name : X Series
    • Device Application : control
    • Energy Efficiency Optimized : False
    • Main Color Tint : white
    • Market Segment : residential
    • Mounting Mode : by screws
    • Network Frequency : 60 Hz
    • Network Type : AC
    • Number Of Gangs : 1 gang
    • Package Weight Lbs : 58.0 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : switch
    • Quantity Per Set : 30 pieces
    • Range : Square D X Series
    • Returnability : Yes
    • Surface Finish : Matte
    • Sustainable Packaging : Yes
    • Switch Function : 1-way
    • Targeted Channel : distributor
    • Ie Rated Operational Current Ac2 : 15 A
    • Color Tint : white
    • Medium Desc : Switch, X Series, 15A, single pole, 1 way, white, 30 pcs
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Earth Circuit : self earthing
    • Global Commercial Status : Commercialised
    • Actuator : dolly
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Compliant
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • General Attributes
    • Product Or Component Type : switch
  • Contractual Warranty Attributes
    • Warranty Period : 2 years
    • Warranty : 2 years
  • Specifications
    • Depth : 35 mm
  • Overview Attributes
    • Device Presentation : mechanism with fixing frame
