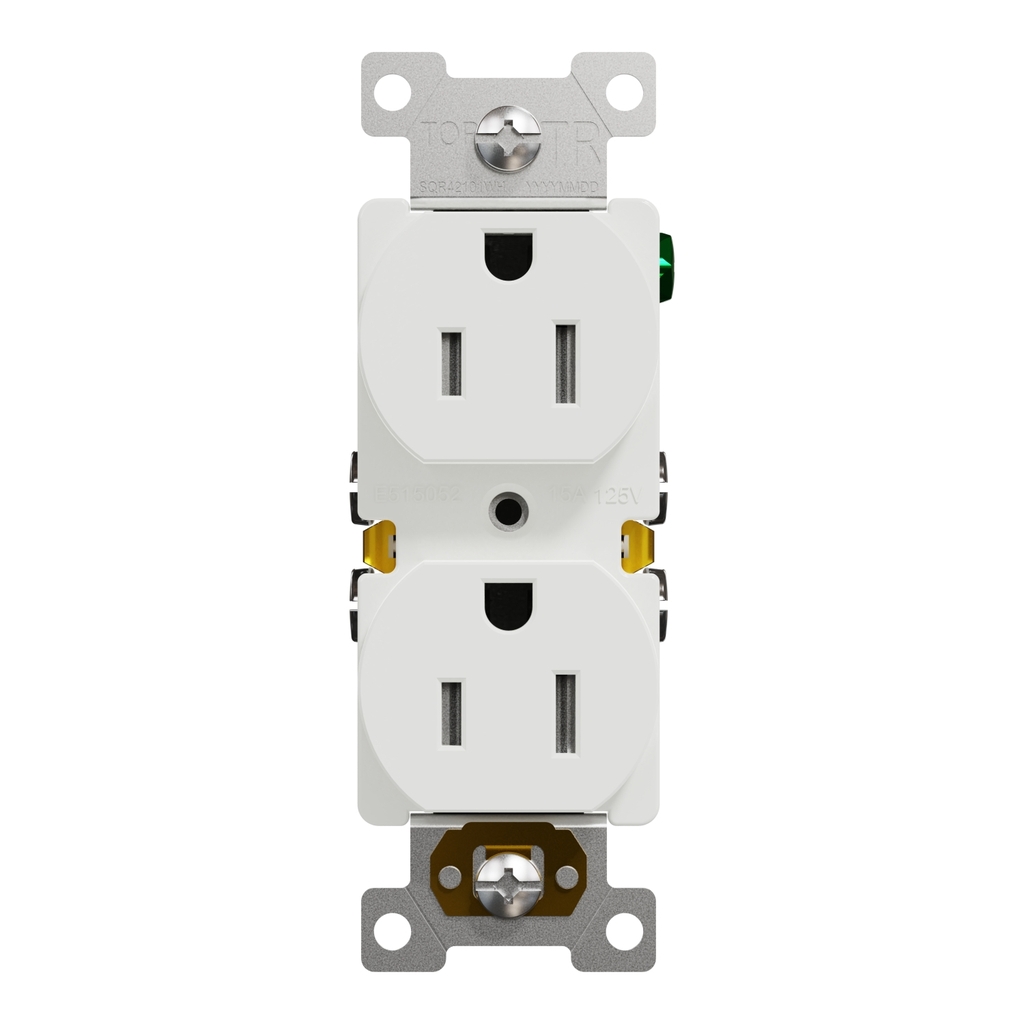

Socket-outlet, X Series, 15A, standard, duplex, tamper resistant, residential, white, matte finish

SOCKET-OUTLET, X SERIES, 15A,

SQDSQR42101WH SQR42101WH 785901535270
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Socket-outlet, X Series, 15A, standard, duplex, tamper resistant, residential, white, matte finish-2
  • Body Type: Standard
  • Country of Origin: China
  • Depth: 27 mm
  • Height: 103 mm
  • Number of Gangs: 1
  • Surface Finish: Matte
  • Warranty Length: 2 yr
  • Width: 37 mm
The Square D X Series 15A 125V Tamper Resistant Duplex Receptacle provides a fast, safe way to update the look of your home's interior with new, modern receptacles. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. Enjoy fast wiring with push-in terminals and a self-grounding clip. Its Ue rated operational voltage is 125VAC. Its Ie rated operational current is 15A. The color of this device is white with a matte surface finish.
QTY
  • Product Description
  • Features
  • Specifications
The Square D X Series 15A 125V Tamper Resistant Duplex Receptacle provides a fast, safe way to update the look of your home's interior with new, modern receptacles. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Complete the look with one of the Square D X Series cover plates (not provided) that easily snaps into place for a modern, flush-facing finish to your walls. Enjoy a consistent look across your room or home with the full line of Square D X Series switches, dimmers, sensors, and receptacles. X Series normalizes an array of new features, such as flush facing, easy installations, and connectivity, establishing a new benchmark for residential wiring devices. Elevate safety with discrete, tamper resistant shutters that help keep inappropriate objects out of the socket. Enjoy fast wiring with push-in terminals and a self-grounding clip. Its Ue rated operational voltage is 125VAC. Its Ie rated operational current is 15A. The color of this device is white with a matte surface finish.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : cULus
    • Standards : UL 498 || NEMA 5-15R
  • Contractual warranty
    • Warranty : 2 years
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2011022_V1
    • Packaging Without Single Use Plastic : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI2011022_V1
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Compliant
  • Complementary
    • Network Frequency : 60 Hz
    • Height : 103 mm
    • Number Of Modules : 1
    • Device Mounting : flush
    • Number Of Gangs : 1 gang
    • Network Type : AC
    • Surface Finish : Matte
    • Connections - Terminals : phase and neutral 4 screw terminal AWG 14...AWG 12) copper || phase and neutral 4 push-in termination AWG 14), solid copper || earth 1 screw terminal copper
    • Mounting Mode : by screws
    • [Ie] Rated Operational Current Ac : 15 A
    • Color : White
    • Earth Circuit : self earthing
    • Material : plastic: strap || metal: fixing frame
    • Quantity Per Set : 1 piece
    • Width : 37 mm
    • Depth : 27 mm
    • [Ue] Rated Operational Voltage : 125 V
  • Specifications
    • Country of Origin : China
    • Width : 37 mm
    • Height : 103 mm
    • Socket Number : 2
    • Aesthetic Name : X Series
    • Product Or Component Type : socket-outlet
    • Socket Additional Information : tamper resistant
    • Range : Square D X Series
    • Device Presentation : mechanism with fixing frame
    • Body Type : standard
    • Outlet Standard : NEMA
    • Device Application : power supply
    • Outlet Poles Configuration : 2P + E
