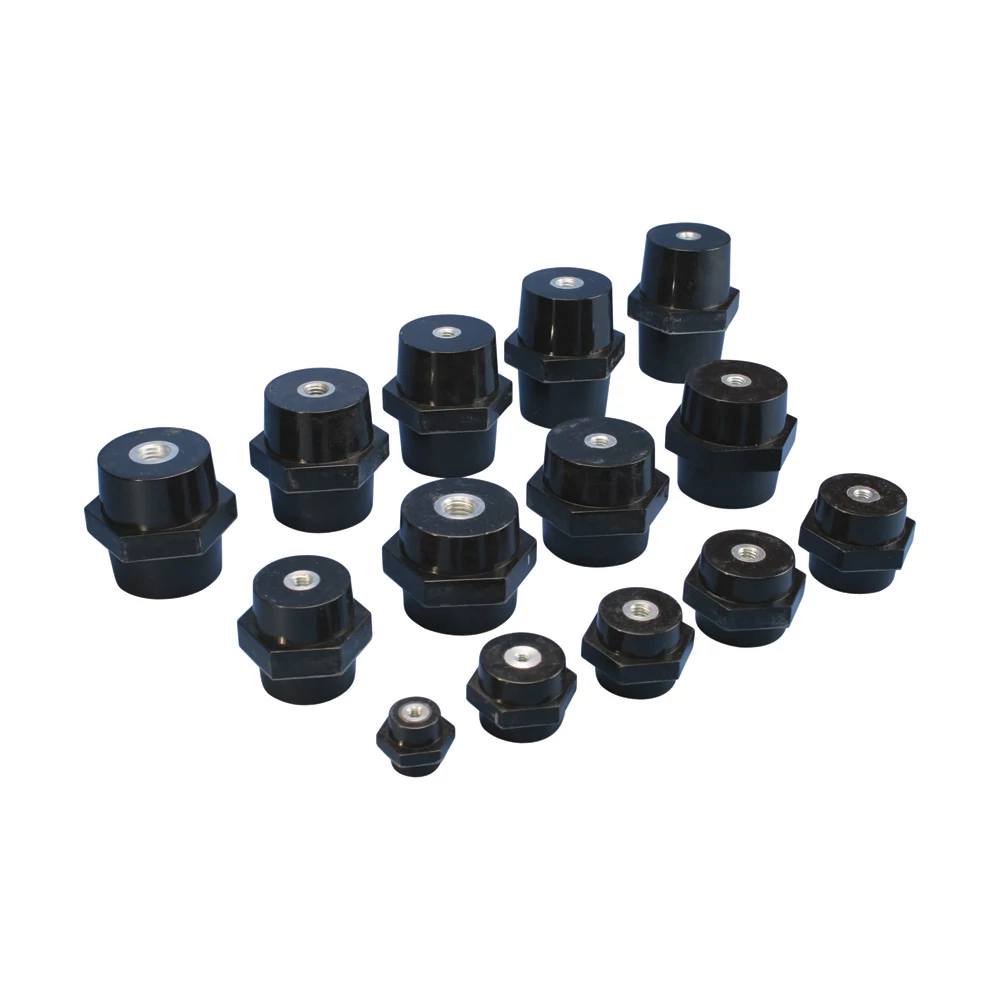

Low Voltage Insulator, Imperial , 1.25", 1 5/8" Hex Width, 1.88", 3/8 UNC

Low Voltage Insulator, Imperial , 1.25", 1 5/8" Hex Width, 1.88", 3/8 UNC

ERI559640 559640 782856579403
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Low Voltage Insulator, Imperial , 1.25", 1 5/8" Hex Width, 1.88", 3/8 UNC-1
  • Material: Glass Fibre Reinforced Polyester
Low voltage electrical insulator. ISO1-14-38, Imperial Thread, 1.25" x 1.88" (31.75 mm x 47.7 mm), 1 5/8" Hex Width, 3/8 UNC Thread.
QTY
  • Product Description
  • Features
  • Specifications
Low voltage electrical insulator. ISO1-14-38, Imperial Thread, 1.25" x 1.88" (31.75 mm x 47.7 mm), 1 5/8" Hex Width, 3/8 UNC Thread.
  • Certifications
    • CSA-Comp CSA C22.2 No. 29
    • cUR CSA C22.2 No. 29, CSA C22.2 No. 244
    • UR ANSI/UL 67, ANSI/UL 891
  • Features
    • Great stability of electrical and mechanical parameters
    • High resistance to leakage current
    • UL® Recognized in E125470 and evaluated for dielectric withstand rating of 1,500 VAC/DC
    • Halogen free
    • RoHS compliant
  • Specifications
    • Material : Glass Fibre Reinforced Polyester
    • Finish : Electrogalvanized
    • Working Temperature : -40
    • Flammability Rating : UL® 94V-0
    • Height (H) : 31.75
    • Hex Width (W) : 1.62
    • Depth (D) : 47.7
    • Thread Size (TS) : 3/8" UNC
    • Thread Depth (TD) : 9.53
    • Diameter (Ø) : 35.81
    • Insulation Voltage : 1,500
    • Static Load 1 (F1) : 10,231
    • Static Load 2 (F2) : 3,003
    • Unit Weight : 0.06
    • Sub Brand : ERIFLEX
