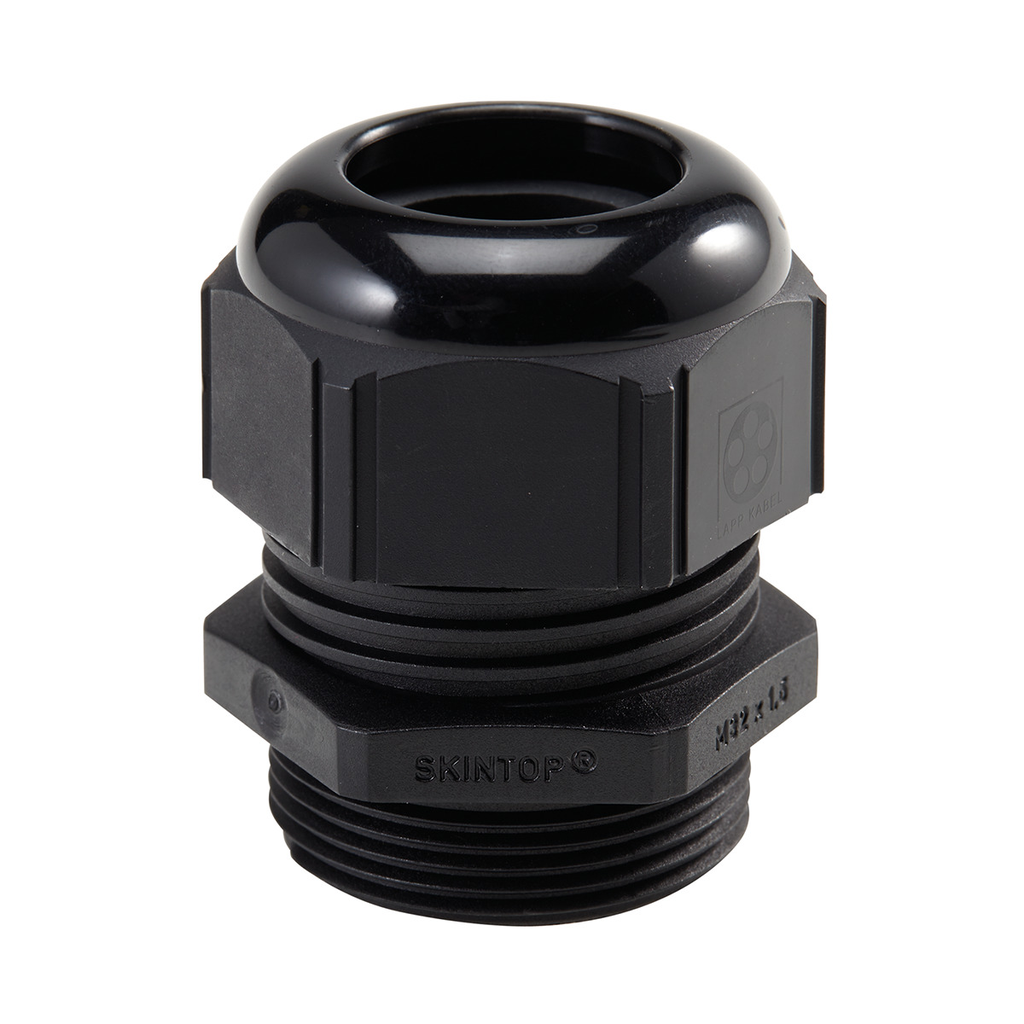

SLRN 3/4'' SKINTOP® BK 53016350

3/4" NPT, RANGE 0.354-0.630"

LAPS2234 S2234 LAPS2234

0.00 / EA

http://schema.org/OutOfStock

Mayer-DDS-SLRN 3/4'' SKINTOP® BK 53016350-1

Thread Type: NPT

Cable gland with bending protection; NPT 3/4"; Clamping range (min./max.): 9 - 16 mm; black; UV-resistant; IP 68 - 5 g/cm²;

QTY

Product Description
Features
Specifications

Cable gland with bending protection; NPT 3/4"; Clamping range (min./max.): 9 - 16 mm; black; UV-resistant; IP 68 - 5 g/cm²;

Features

CE marking
cUL listed
cUR recognized
Strain relief
UKCA marked
UL listed
UV-resistant
Vibration protection

Specifications

Body material : Polyamide
Cable gland design : Straight
Clamping range max. : 0.63 in
Clamping range min. : 0.354 in
Color : black
Insert material : Chloroprene rubber
Installation type : in threaded borehole
IP protection rating : IP 68 - 5 g/cm²
Max. dynamic temperature : 80 °C
Max. static temperature : 100 °C
Min. dynamic temperature : -25 °C
Min. static temperature : -40 °C
NEMA classification type : Type 1;Type 12
Number of cable entries : 1 pc.
Packaging type : Bag
Product type : Cable gland with bending protection
RAL color : RAL 9005
Release date PM : 2022-08-08 14:57:46
SAP Product Owner : LAPP USA INC.
Scope of delivery : complete assembly set
Temperature (max.) : 100 °C
Temperature (min.) : -40 °C
Thread length : 0.591 in
Thread size : NPT 3/4"
Thread type : NPT
Length : 1.299 in
