HUBBELL WIRING DEVICES

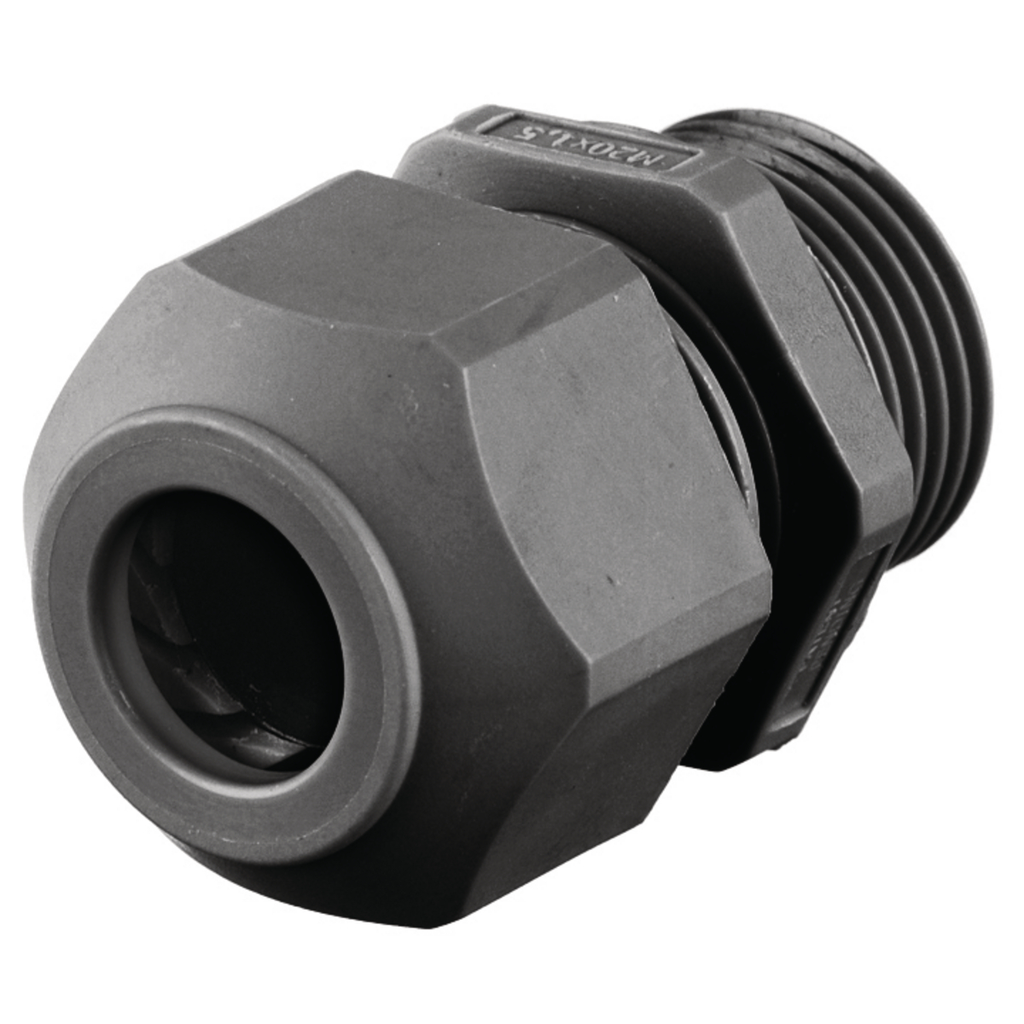

Kellems Wire Management, Cord Connectors, European Style, .17-.45", 20MM, Black

EURO CORD CONN .17-.45 20MM

HUBSECM20B SECM20B 783585018553
0.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Kellems Wire Management, Cord Connectors, European Style, .17-.45", 20MM, Black-1
  • Material Type: Non-Metallic
  • Width: 1.0 in, 1.000 in
Kellems Wire Management, Cord Connectors, European Style, .17-.45", 20MM, Black
QTY
  • Product Description
  • Features
  • Specifications
Kellems Wire Management, Cord Connectors, European Style, .17-.45", 20MM, Black
  • Features
    • Low profile
    • Connector body is a one-piece design with machined threads
    • Standard Product
  • Specifications
    • Country of Origin : US
    • Width : 1.000 in
    • Each - Width : 1.000 in
    • Hub Size : M20
    • Industry Standard(s) : UL Listed
    • Application : Straight Male Connector
    • Color : Black
    • Conductor Range : 0.17-0.45 in (4.3-11.4 mm)
    • NEMA Rating : IP66
    • Number of Conductors : Single
    • Special Features : Standard Product
    • Standard : UL Listed
    • Temperature Rating : Minimum -22 Deg F to 225 Deg F (-30 Deg C to 107 Deg C)
    • Type : Connector
    • Nema Rating : IP66
    • Number Of Conductors : Single
    • Class Code : A52
    • Description - Invoice : EURO CORD CONN, .17-.45"; 20MM"; BK
    • Freight Class Code : 06168002
    • Harmonization Code : 3926909989
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Sub Class Code : A52A490
    • Material - Mounting Hardware : Locknut or Tapped Opening
    • Cord Diameter : 0.17-0.45 in
    • Material : Non-Metallic
    • Base Unit of Measure : EA
    • BOX SIZE : 4.700x5.300x5.400 (in)
    • Carton - Gross Weight per Pack : 1.5 lb.
    • Carton - Number of Sub Packs : 50
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585018553
    • Carton - Total Units : 50 EA
    • Case Weight : 8.387 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Pallet - GTIN - Package : 70783585018552
    • Pallet Height : 45.200 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 699.000 lb.
    • Pallet Width : 40.000 in
  • Certifications
    • EU RoHS Indicator : Yes
