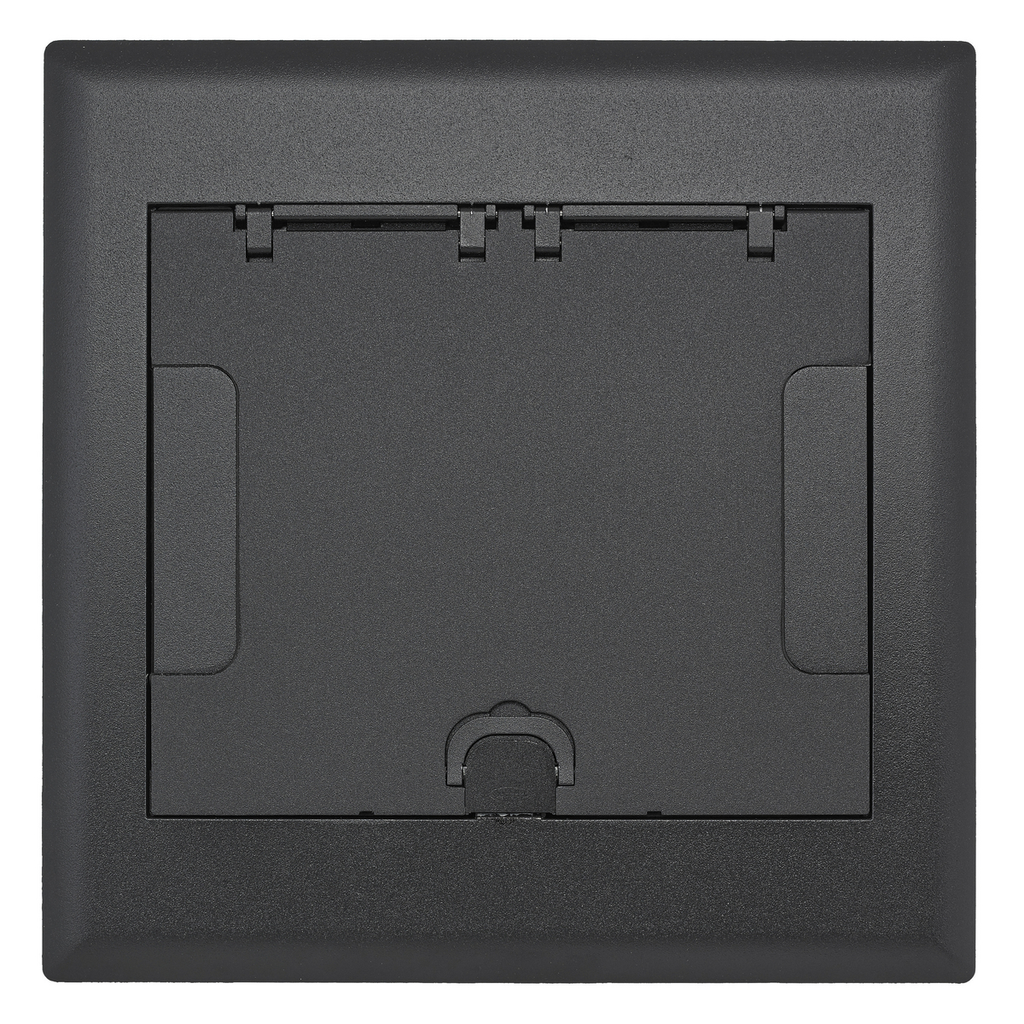

4-Gang AFB Series, Cover Assembly, Black Powder Paint Finish

AFB CVR 4G FLUSH BLACK POWD

HUB4GAFBCVRBK 4GAFBCVRBK 783585446301
0.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-4-Gang AFB Series, Cover Assembly, Black Powder Paint Finish-1
  • Construction: Cast Aluminum
  • Country of Origin: USA
  • Length: 13 in
  • Material: Cast Aluminum
  • Number of Gangs: 4
  • Width: 13.25 in, 14.600 in
Raised Access or Wooden Floors, Recessed, 4-Gang AFB Series, Cover Assembly, Black Powder Paint Finish
QTY
  • Product Description
  • Features
  • Specifications
Raised Access or Wooden Floors, Recessed, 4-Gang AFB Series, Cover Assembly, Black Powder Paint Finish
  • Features
    • Surface Style without Cover Insert
    • 180 Degree Cover Opening to Lay Flat and Reduce Tripping Hazards
    • Two Large Cable Egress Doors
    • Die Cast Aluminum Cover Construction for Enhanced Durability
    • Meets UL 514A Scrub Water Requirements
    • ADA Compliant
    • Low Profile Surface Cover without Insert Option with Two Large Cable Egress Doors
  • Specifications
    • Application - For Use On : Raised Access; Wood
    • Country of Origin : US
    • Cover Shape : Rectangle
    • Each - Width : 14.600 in
    • Industry Standard(s) : cULus;UL514
    • Mounting Method : Mounts to Box
    • Size : 4-Gang
    • Type of Use : Carpet/Surface
    • Typical Application : Carpet/Surface
    • Application : For Use with Raised Access Floor Boxes
    • Cable Entry : (2) Egress Doors
    • Color : Black Powder Coat
    • Length : 13 in
    • Mounting : (4) Screw Mount
    • Special Features : Low Profile Surface Cover without Insert Option with Two Large Cable Egress Doors
    • Standard : cULus;UL514
    • Type : Recessed Access Floor Box Cover
    • Width : 13.25 in
    • Mounting Type : (4) Screw Mount
    • Freight Class Code : 06168002
    • Harmonization Code : 7616995190
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Construction : Cast Aluminum
    • Material : Cast Aluminum
    • Number of Gang(s) : 4-Gang
    • Base Unit of Measure : EA
    • BOX SIZE : 3.800x15.600x14.600 (in)
    • Carton - Gross Weight per Pack : 5.800 lb.
    • Carton - Number of Sub Packs : 1
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00783585446301
    • Carton - Total Units : 1
    • Case Weight : 5.800 lb.
  • Certifications
    • EU RoHS Indicator : Contact Manufacturer
