Spitfire Motor - BS

SPITFIRE MOTOR IN SATIN BRASS

FAMMA6721BBS MA6721BBS FAMMA6721BBS
296.28 / EA
http://schema.org/OutOfStock
Mayer-DDS-Spitfire Motor - BS-1
  • Blade Pitch: 21 °
  • Control Type: Handheld
  • Finish: Brushed Satin
  • Height: 12 in
  • Length: 60 in
  • Max. RPM: 130 rpm
  • Max. Wattage: 61 W
  • Motor Type: AC
  • Number of Blades: 3
  • Product Series: Spitfire
  • RPM: 54 rpm, 98 rpm
  • Voltage: 120 V
  • Wattage: 14 W, 36 W
  • Wet Location: Damp
  • Width: 48 in, 60 in

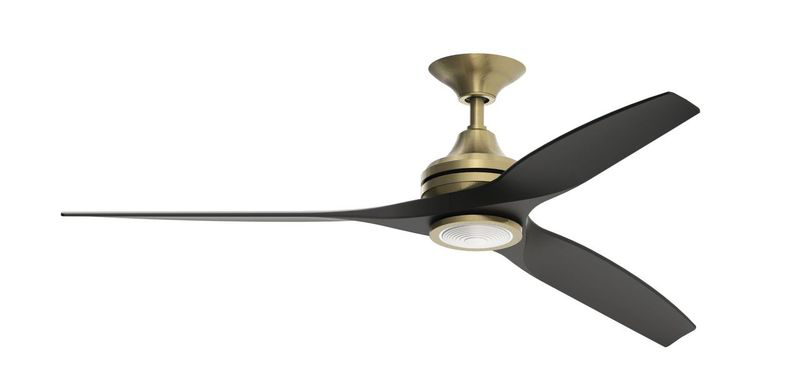

Spitfire Indoor/Outdoor Ceiling Fan Motor - Brushed Satin Brass
QTY
  • Product Description
  • Features
  • Specifications
Spitfire Indoor/Outdoor Ceiling Fan Motor - Brushed Satin Brass
  • Features
    • 3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features
    • Set of 3 Damp Rated blades with multiple finishes and 18 watt LED light kit available (sold separate
    • WiFi or Bluetooth compatible (required controls sold separately)
    • 5227 CFM on High
    • TR500 handheld remote with 23A battery included
    • Limited Lifetime Warranty
  • Specifications
    • Length : 48, 60 Inches
    • Weight : 16.34 Lbs
    • Width : 48, 60 Inches
    • Height : 12 Inches
    • Product Line : Spitfire
    • Light Kit Included : No
    • Housing Diameter : 8.07
    • Cap Included : No
    • Included Control : TR500
    • Included Control Type : Handheld
    • Ceiling to Blade Edge : 12
    • Ceiling to Bottom (No LK) : 12
    • Ceiling to Bottom (With LK) : 13.71
    • Blade Pitch Degrees : 21
    • Number of Blades : 3
    • Product Finish : Brushed Satin
    • Leadwire : 80
    • Downrod Length : 4.5
    • Canopy Diameter : 7.09
    • Canopy Height : 2.2
    • Motor Type : AC
    • Motor Reversible : Yes
    • Motor Size : 188 x 25
    • Motor Finish Method Type : Plated
    • Reverse Switch Location : Motor Housing
    • Number of Speeds : 3
    • Maximum Slope Degree : 19
    • Avg Estimated Yearly Energy Cost : 12
    • Avg Estimated Yearly Energy Cost on HIGH : 17
    • Avg CFM Energy : 3776
    • CFM Low : 2433
    • CFM Medium : 4614
    • CFM High : 6641
    • Avg Energy Use (Watts) : 41
    • Watts Low : 14
    • Watts Medium : 36
    • Watts High : 61
    • Avg Airflow Efficiency : 92
    • Airflow Efficiency Low : 175
    • Airflow Efficiency Medium : 128
    • Airflow Efficiency High : 108
    • RPM Low (II) : 54
    • RPM Medium (IV) : 98
    • RPM High (VI) : 130
    • Current Draw Low : 0.25
    • Current Draw Medium : 0.4
    • Current Draw High : 0.52
    • Country of Manufacture : CHINA
    • Location Rating : Damp
    • Voltage : 120V
    • Voltage Cycles : 60HZ
    • Warranty Type : Limited Lifetime Warranty
    • Housing Diameter : 8.07 Housing Diameter Inches
  • Certifications
    • Fan Energy Star 4 : No
    • Regulated Product Yes or No : Yes
    • Product Safety Application : UL/cUL
    • Product Certification Label : UL/CUL
    • DOE Classification : LSSD
    • Exempt from DOE Procedure : No
    • DOE-FTC Uploaded : Yes
    • CEC Uploaded : Yes
