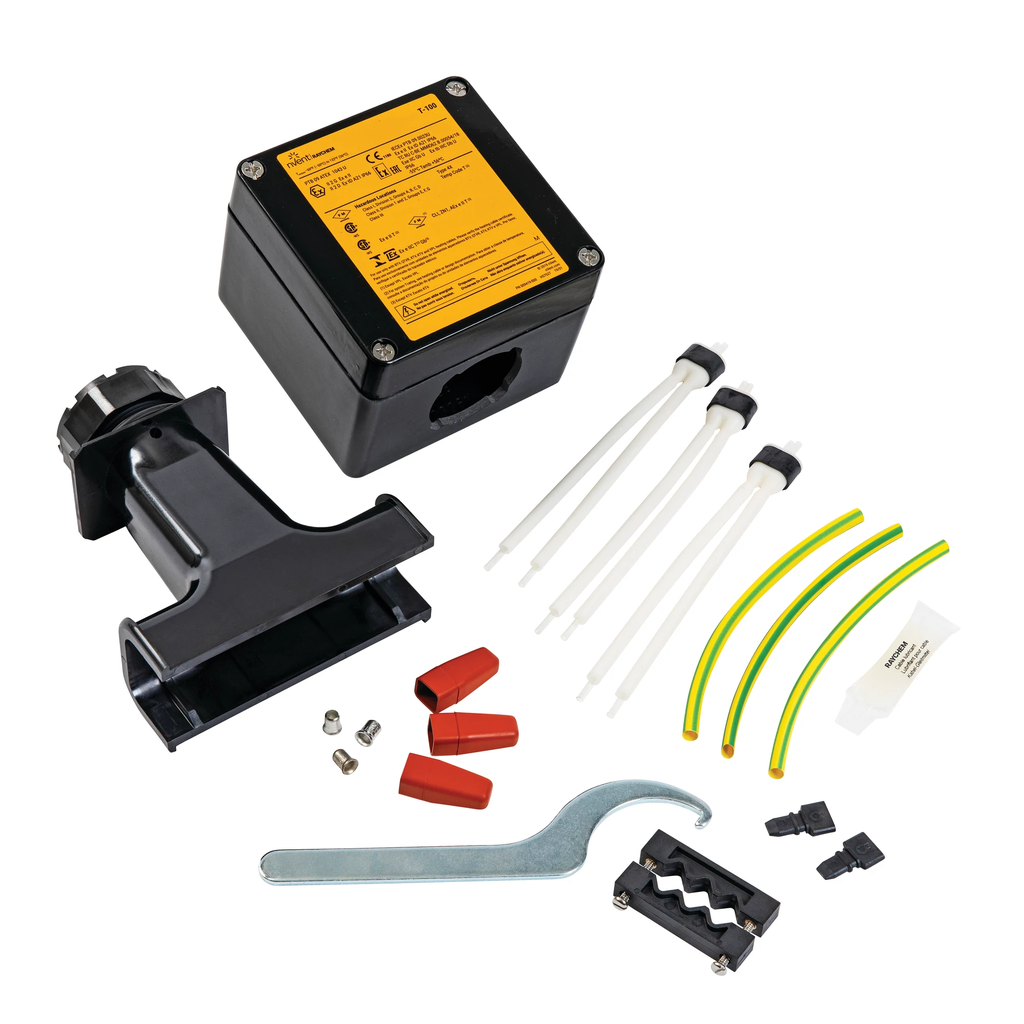

Junction Box for Splice and Tee-Connection, Cold Applied, with Crimps, ATEX

TEE CONN KIT HI PROFILE

CHMT100 T100 CHMT100
257.60 / EA
http://schema.org/OutOfStock
Mayer-DDS-Junction Box for Splice and Tee-Connection, Cold Applied, with Crimps, ATEX-1
  • Depth: 3.54 in, 90 mm
  • Height: 240 mm, 9.44 in
  • Length: 120 mm, 4.72 in
  • Material: Glass Fiber Reinforced Polymer
  • Weight: 1.32 kg
  • Width: 120 mm, 4.72 in
Cold-applied, high profile splice or tee connection box. Hazardous area approved.
QTY
  • Product Description
  • Features
  • Specifications
Cold-applied, high profile splice or tee connection box. Hazardous area approved.
  • Features
    • Simple and fast to install and test
    • Cold-applied: no heat gun or hot work permit required, re-enterable
    • High performance: resistant to impact, high temperature, chemicals and UV
    • Reliable during long life: 10 year product warranty available, maintenance free
  • Specifications
    • Length : 163.00 millimetre
    • Width : 163.00 millimetre
    • Height : 165.00 millimetre
    • Weight : 1.32 kilogram
    • Material : Glass Fiber Reinforced Polymer
    • Mounting : On Pipe
    • Voltage Rating for FM, CSA (volt) : 277
    • Voltage Rating for PTB (volt) : 480
    • Current Rating for FM, CSA (ampere) : 50
    • Current Rating for PTB (ampere) : 40
    • IP Rating : IP67
    • NEMA Rating : 4X
    • Ambient Temperature (degree Celsius) : -55-260.00
    • Ambient Temperature (degree Fahrenheit) : -67-500.00
    • Max Exposure Temperature (degree Celsius) : 260
    • Max Exposure Temperature (degree Fahrenheit) : 500
    • Cover Included : Yes
    • For Ex-Zone Gas : 1, 2
    • For Ex-Zone Dust : 21, 22
    • Length (L) (millimetre) : 120
    • Length (L) (inch) : 4.72
    • Height (H) (millimetre) : 240
    • Height (H) (inch) : 9.44
    • Width (W) (millimetre) : 120
    • Width (W) (inch) : 4.72
    • Depth (D) (millimetre) : 90
    • Depth (D) (inch) : 3.54
    • Below Insulation : No
    • Color : Black
    • Hazardous Area : Yes
