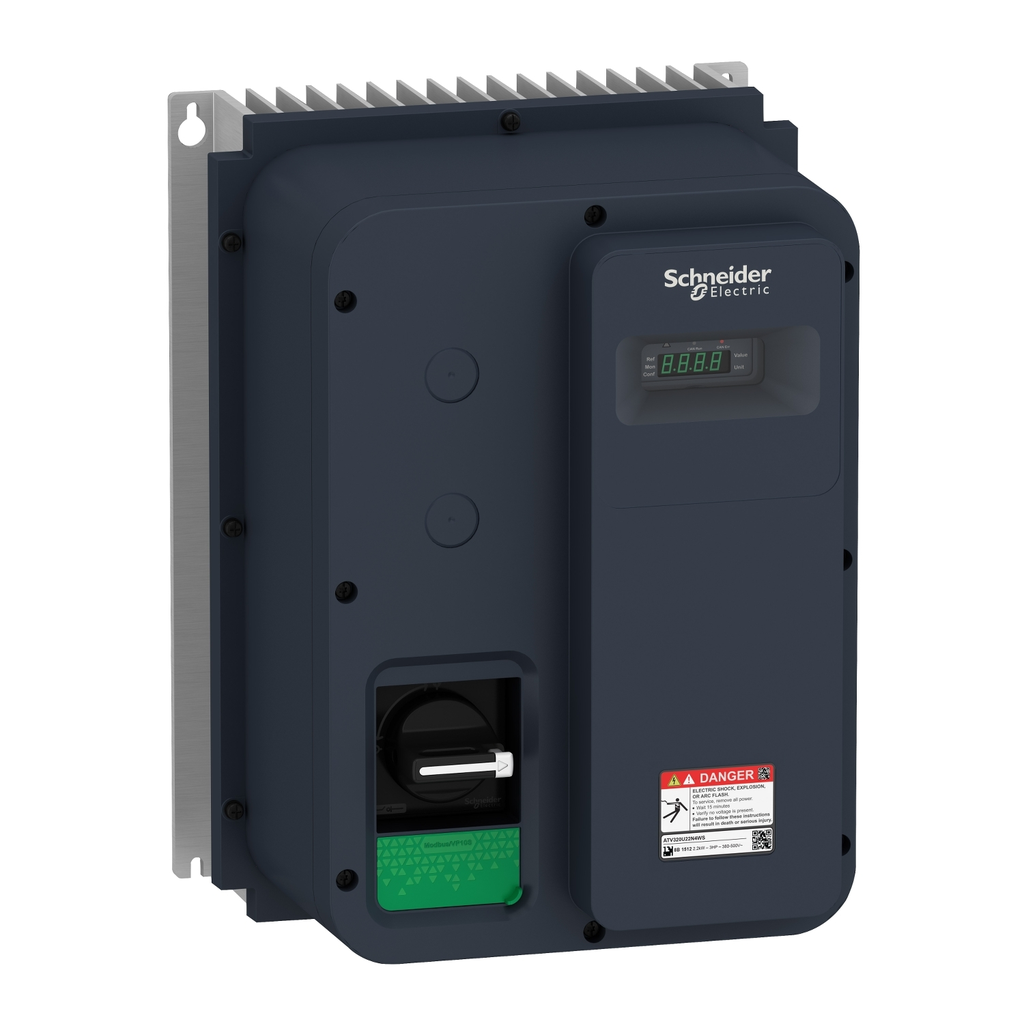

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 2.2kW, and a rated voltage fro

• Environmental Class During Storage
• class 1C3 according to EN 60721-3
• class 1S2 according to EN 60721-3
• Analogue Input Type
• AI1 voltage 0...10 V DC 30 kOhm 10 bits
• AI2 bipolar di
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Analogue Output Type
• software-configurable current AQ1 0...20 mA 800 Ohm 10 bits
• software-confi
• Communication
• VW3A3608
• VW3A3616
• VW3A3627
• VW3A3618
• VW3A3628
• VW3A3601
• VW3A3607
• Carbon Footprint Of The Installation Phase A5
• 0.1 kg CO2 eq.
• 0.137459785
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 2.2975319626
• 2 kg CO2 eq.
• Discrete Input Type
• STO safe torque off, 24 V DC1.5 kOhm
• DI1...DI6 logic inputs, 24 V DC 30 V)
• DI1...DI6 logic inputs, 24 V DC
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 76 kg CO2 eq.
• 76.0798411215
• Method Of Access
• slave CANopen
• Line Current
• 8.7 A 380 V heavy duty)
• 6.6 A 500 V heavy duty)
• Motor Slip Compensation
• automatic whatever the load
• adjustable 0...300 %
• not available in voltage/frequency ratio (2 or 5 points)
• Maximum Switching Current
• relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC
• re
• Relay Output Type
• configurable relay logic R1A 1 NO 100000 cycles
• configurable relay logic R1B 1 NC 100000 cycles
• configurable r
• Marking
• CE
• ATEX
• UL
• CSA
• EAC
• RCM
• Protection Type
• input phase breaks drive
• overcurrent between output phases and earth drive
• overheating protection drive
• short-circuit between motor phases drive
• short
• Sampling Duration
• 2 ms AI1, AI2, AI3) - analog input
• 2 ms AQ1) - analog output
• Linearity Error
• AI1, AI2, AI3 +/- 0.2...0.5 % of maximum value analog input
• AQ1 +/- 0.3 % analog output
• AQ1 +/- 0.3 % anal
• Environmental Class During Operation
• class 3C3 according to IEC 60721-3-3
• class 3S2 according to IEC 60721-3-3
• Communication Port Protocol
• Modbus serial
• CANopen
• Option Card
• communication module, CANopen
• communication module, EtherCAT
• communication module, Profibus DP V1
• communication module, PROFINET
• communication module, PROFI
• Persona Type Names
• End User
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Refresh Time
• logic input DI1...DI4)8 ms
• relay output R1A, R1B, R1C)2 ms
• relay output R2A, R2C)2 ms
• relay output R2A, R2C)2
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 2 354 kg CO2 eq.
• 2354.4367044492
• Electromagnetic Compatibility
• electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
• radiated radio-frequency electro
• Apparent Power
• 5.7 kVA 500 V heavy duty)
• Persona Type Ids
• EU
• OM
• OM8
• Environmental Class During Transport
• class 2C3 according to EN 60721-3
• class 2S1 according to EN 60721-3
• Us Rated Supply Voltage
• 380...500 V - 15...10 %
• Carbon Footprint Of The Distribution Phase A4
• 1.4024331776
• 1 kg CO2 eq.
• Minimum Switching Current
• relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
• Motor Power Kw
• 2.2 kW heavy duty
• Discrete Input Logic
• positive logic (source)
• negative logic (sink)
• Asynchronous Motor Control Profile
• voltage/frequency ratio, 5 points
• flux vector control without sensor, standard
• voltage/frequency ratio - Energy Saving, quadratic U/f
• flux vector control without sensor - Energy Saving
• voltage/frequency ratio, 2 points
• Transient Overtorque
• 170-200 % of nominal motor torque
• Discrete Output Type
• open collector DQ+ 0-1 kHz 30 V DC 100 mA
• op
• Power Dissipation In W
• self-cooled 74.0 W 380 V 4 kHz
• Ambient Air Temperature For Operation
• -10-40 °C without derating
• 40-60 °C with derating factor
• Speed Accuracy
• +/- 10 % of nominal slip 0.2 Tn to Tn
• Product Certifications
• CE
• ATEX
• NOM
• GOST
• EAC
• RCM
• KC
• Switching Frequency
• 2...16 kHz adjustable
• 4...16 kHz with derating factor

• Conformance Attributes
• Standards : IEC 61800-5-1
• Complementary Attributes
• Brake Chopper Integrated : True
• Maximum Associated Fuse Rating : 16.0 A
• Maximum Horse Power Rating : 3 hp
• Maximum Input Current Per Phase : 8.7 A
• Maximum Output Frequency : 0.599 kHz
• Maximum Output Voltage : 500 V
• Maximum Acceleration Under Shock Impact During Operation : 150 m/s² at 11 ms
• Maximum Acceleration Under Shock Load During Storage : 150 m/s² at 11 ms
• Maximum Acceleration Under Shock Load During Transport : 150 m/s² at 11 ms
• Maximum Acceleration Under Vibrational Stress During Operation : 10 m/s² at 13...200 Hz
• Maximum Acceleration Under Vibratory Load During Storage : 10 m/s² at 13...200 Hz
• Maximum Acceleration Under Vibratory Load During Transport : 10 m/s² at 13...200 Hz
• Maximum Deflection Under Vibratory Load During Operation : 1.5 mm at 2...13 Hz
• Maximum Deflection Under Vibratory Load During Storage : 3.5 mm at 2...13 Hz
• Maximum Deflection Under Vibratory Load During Transport : 3.5 mm at 2...13 Hz
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-04
• Device Type : Variable speed drive - VSD Compacts
• Serviceability : No
• Traceability : Yes
• Field Service Division : IDIBS
• Average Life Duration : 10 year(s)
• Manufacturing Carbon Footprint : 76.0798411215
• Distribution Carbon Footprint : 1.4024331776
• Installation Carbon Footprint : 0.137459785
• Use Carbon Footprint : 2354.4367044492
• End Of Life Carbon Footprint : 2.2975319626
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1908004EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 1816
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : YES_SSI2
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Market Segmentation Id : INDUSTRIAL
• Market Segmentation : Industrial
• 1 Phase Low Current Possible : False
• 4 Quadrant Operation Possible : True
• Application In Domestic And Commercial Area Permitted : False
• Base Load Current At High Overload : 1.5 A
• Braking To Standstill : by DC injection
• Capacity Of Dc Link : 280 µF
• Computer Port : True
• Design Of Frequency Changer : U converter
• Emc Filter : Class C2 EMC filter integrated
• Encoder Protocol : RS 422
• Format Of The Drive : enclosed
• Housing Material : plastic
• Maximum Associated Fuse Rating : 16.0 A
• Maximum Input Current Per Phase : 8.7 A
• Mounting Mode : wall mount
• Network Frequency : 50-60 Hz
• Nominal Switching Frequency : 4 kHz
• Number Of Hw Interfaces Industrial Ethernet : 0
• Number Of Hw Interfaces Other : 1
• Number Of Hw Interfaces Parallel : 0
• Number Of Hw Interfaces Profinet : 0
• Number Of Hw Interfaces Serial Rs232 : 0
• Number Of Hw Interfaces Serial Rs422 : 0
• Number Of Hw Interfaces Serial Rs485 : 1
• Number Of Hw Interfaces Serial Tty : 0
• Number Of Hw Interfaces Usb : 0
• Number Of Output Phases : 3
• Operating Element Present : True
• Operating Position : vertical +/- 10 degree
• Optical Interface Present : False
• Overvoltage Category : III
• Package Weight Lbs : 10.368 kg
• Phase : 3 phase
• Power Loss Per Device Current Dependent : 74.0 W
• Power Loss Static Current Independent : 74.0 W
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : variable speed drive
• Product Specific Application : complex machines
• Prospective Line Isc : 5 kA
• Range Of Product : Altivar Machine ATV320
• Regulation Loop : adjustable PID regulator
• Relative Symmetric Mains Voltage Tolerance : 10 %
• Relative Symmetric Network Frequency Tolerance : 5 %
• Returnability : Yes
• Supporting Protocol For As Interface Safety At Work : False
• Supporting Protocol For Asi : False
• Supporting Protocol For Bacnet : False
• Supporting Protocol For Can : True
• Supporting Protocol For Data Highway : False
• Supporting Protocol For Devicenet : True
• Supporting Protocol For Devicenet Safety : False
• Supporting Protocol For Ethernet Ip : True
• Supporting Protocol For Foundation Fieldbus : False
• Supporting Protocol For Interbus : False
• Supporting Protocol For Knx : False
• Supporting Protocol For Lon : False
• Supporting Protocol For Modbus : True
• Supporting Protocol For Other Bus Systems : True
• Supporting Protocol For Profibus : True
• Supporting Protocol For Profinet Cba : False
• Supporting Protocol For Profinet Io : True
• Supporting Protocol For Profisafe : False
• Supporting Protocol For Safetybus P : False
• Supporting Protocol For Sercos : False
• Supporting Protocol For Suconet : False
• Supporting Protocol For Tcp Ip : True
• Sustainable Packaging : Yes
• Synchronous Motor Control Profile : vector control without sensor
• Total Lifecycle Carbon Footprint : 2 434 kg CO2 eq.
• Variant : with disconnect switch
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• With Safety Function Safe Programmable Logic : False
• Emc Limit Value Complied : True
• Number Of Inputs Bidirectional Not Potential Free : 0
• Number Of Inputs Potential Free : 0
• Permitted Relative Humidity During Transport : class 2K5 according to EN 60721-3
• With Safety Function Safe Brake Management Sbc Sbt : False
• With Safety Function Safe Direction Sdi : False
• With Safety Function Safe Operating Stop Sos : False
• With Safety Function Safe Position Sp : False
• With Safety Function Safe Speed Monitor Ssm : False
• With Safety Function Safe Stop 1 Ss1 : True
• With Safety Function Safe Torque Off Sto : True
• With Safety Function Safely Limited Position Slp : False
• With Safety Function Safely Limited Speed Sls : True
• With Sft Fct Safe Stop 2 Ss2 : False
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 2434.353970496
• Relationshiptype : Compatible relationship
• Application In Industrial Area Permitted : True
• Supporting Protocol For Interbus Safety : False
• General Attributes
• Phase : 3 phase
• Product Or Component Type : variable speed drive
• Range Of Product : Altivar Machine ATV320
• Output Attributes
• Analogue Output Number : 1
• Discrete Output Number : 3
• Maximum Output Frequency : 0.599 kHz
• Maximum Output Voltage : 500 V
• Nominal Output Current : 5.5 A
• Nominal Output Power : 2.2 kW
• Surge Protection And Filtering Attributes
• Emc Filter : Class C2 EMC filter integrated
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=460018928&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 2434.353970496
• Ambient Air Temperature For Storage : -25-70 °C
• Ambient Air Transport Temperature : -25-70 °C
• Circularity Profile : ENVEOLI1908004EN
• Environmental Disclosure : ENVPEP1908004EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Ip Degree Of Protection : IP65
• Nema Degree Of Protection : NEMA 12
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Permitted Relative Humidity During Operation : class 3K5 according to EN 60721-3
• Permitted Relative Humidity During Storage : class 1K5 according to EN 60721-3
• Input Attributes
• Analogue Input Number : 3
• Discrete Input Number : 7
• Number Of Input Phases : 3
• Specifications
• Country of Origin : Indonesia
• Height : 13.39 in
• Width : 9.84 in
• Depth : 9.25 in
