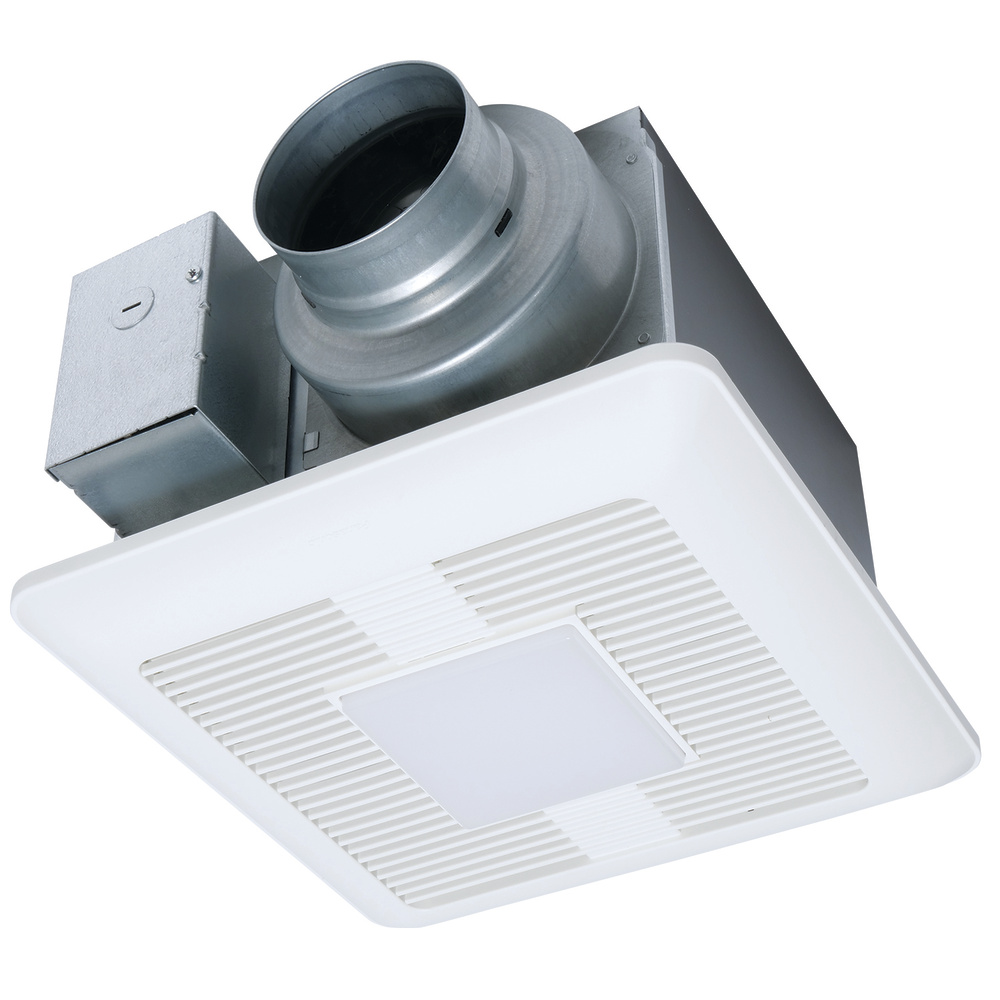

WhisperCeiling® DC™ Precision Spot Ventilation Fan/ Light with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 CFM). Features an ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.

• Features
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80, 110 or 110, 130, 150 CFM models)
• Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
• Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
• Elegant grille design compliments the aesthetics of any bathroom
• WhisperCeiling DC comes from a line of time-tested and customer approved quiet, yet powerful and energy efficient ventilation fans. This precision spot ventilation solution improves IAQ by effectively removing moist, polluted air from your bathroom, laundry room, sun room, basement or garage.
• WhisperCeiling® DC™ is designed to perform as rated. When the fan senses static pressure, its speed is automatically increased to ensure optimal CFM output. This feature provides peace of mind, as the installer doesn’t have to worry about compromising the fan’s performance, even with a complicated duct run
• Built-in Pick-A-Flow speed selector provides the unique ability to select your required airflow (110-130-150 CFM) with the flip of a switch.
• Fan/light models feature a contemporary flush mount grille that incorporates a long-life 10W dimmable LED chip panel with <1W LED night light for warm, lasting energy efficient illumination. Panel specifications include: 3000 Kelvin Warm White/90CRI/700 lumens/70 LPW/ENERGY STAR 2.0 certified/JA-8 compliant for CA Title 24/ 50,000 hours rated average
• Whether you're running a household or a business, you shouldn't have to replace little things like a vent fan. Panasonic fans use less energy, move larger volumes of air and run cooler, which means they last longer. Our motors are equipped with a thermal-cutoff fuse, greatly reducing the likelihood of overheating and motor failure.
• The Flex-Z Fast™ installation bracket with articulating joints is ideal for positioning the fan exactly where you want it, in old or new construction. An integrated dual 4" or 6" duct adapter gives greater flexibility in duct layout and design.
• ENERGY STAR® certified vent fans meet strict parameters set by the US Environmental Protection Agency. Panasonic ventilation fans are ENERGY STAR® certified where guidelines exist, and provide greater efficiency and comfort with less noise. High performing motors and improved blade design deliver superior performance and long life you expect from a premium Panasonic ventilation fan.
• WhisperCeiling DC was awarded 2018 Most Efficient. This mark recognizes WhisperCeiling DC as delivering cutting edge energy efficiency along with the latest in technological innovation. It is an award that represents the best of those products that qualify for ENERGY STAR®.

• Specifications
• Advanced Features : Single Speed
• Air Volume (CFM) : 110, 110, 80, 83, 50, 50
• Blower Wheel Type : Sirocco
• California Title 24 Compliant : Yes
• Color Rendering Index : 90
• Color Temperature (Kelvin) : 3,000
• Current (Amps) : 0.18, 0.26, 0.11, 0.19, 0.07, 0.12
• Duct Diameter : 4" or 6"
• Energy Efficiency (CFM/Watt) : 10.3, 7.0, 13.7, 7.7, 14.1, 7.8
• ENERGY STAR® Certified : Yes
• Grille Size (in sq.) : 13"
• Gross Weight (lbs) : 11.7
• Lamp Watts : 10.0
• Lumens (lm) : 700
• Lumens Per Watt (LPW) : 70
• MAX. Current (Amps) : 0.30
• Mfg in ISO 9001 Certified Facility : Yes
• Motor Type (AC/DC) : DC
• Mounting Opening (in sq.) : 10-1/2"
• Night Light : 0.2
• Noise (Sones) : 0.4, 0.9, <0.3, 0.6, <0.3, 0.4
• Power Consumption (Watts) : 10.9, 16.1, 6.0, 11.0, 3.9, 7.1
• Power Rating (V/Hz) : 120/60
• Product Family Name : WhisperCeiling DC
• Rated Life (hours) : 50,000
• Speed (RPM) 1342 1480 : 1016, 1268, 867, 1185, 768, 1097
• Static Pressure in inches w.g. : 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
• Thermal Fuse Protection : Yes
• Type of Lamp Socket : LED Chip
• Type of Motor Bearing : Ball
• UL Listed for Tub/Shower Enclosure when GFCI Protected : Yes
• UL tub/Shower Enclosure : Yes
• Washington VIAQ Code : Yes
