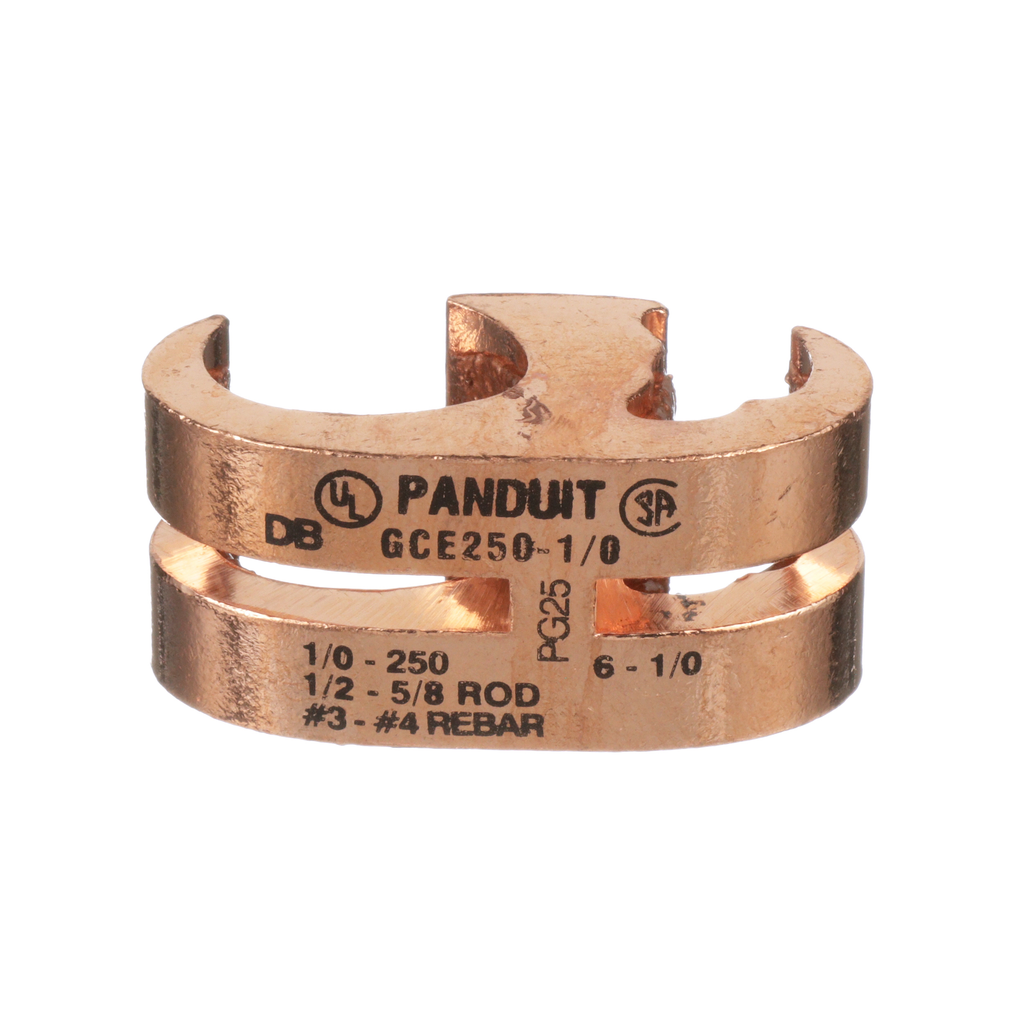

StructuredGround™ GCE250-1/0 E-Tap, 250-1/0, Copper, 1/2-5/8" Grd Rod, 1/4-3/8"

GROUND CONN E-TAP #1/0-250

PANGCE25010 GCE250-1/0 074983009558
32.16 / EA
http://schema.org/OutOfStock
Mayer-DDS-StructuredGround™ GCE250-1/0 E-Tap, 250-1/0, Copper, 1/2-5/8" Grd Rod, 1/4-3/8"-1
  • Country of Origin: Mexico
  • Height: 2.18 in, 55.4 mm
  • Material: Copper
  • Overall Length: 1 in, 25.4 mm
  • Type: E-Tap Grounding Connector
  • Width: 1.05 in, 26.7 mm
The GCE250-1/0 E Style Grounding Connector is designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014. Has a wide-range taking ability; multi-conductor design provides flexibility with minimum number of parts. Slotted design allows quick, easy assembly while the pre applied conductive antioxidant compound ensures a high quality mechanical and electrical bond. UL467 & CSA22.22 certified for grounding, bonding and is suitable for direct burial in earth or concrete.
QTY
  • Product Description
  • Specifications
The GCE250-1/0 E Style Grounding Connector is designed to enhance the crimp process using technology that meets IEEE STD 837 - 2002 and REV 2014. Has a wide-range taking ability; multi-conductor design provides flexibility with minimum number of parts. Slotted design allows quick, easy assembly while the pre applied conductive antioxidant compound ensures a high quality mechanical and electrical bond. UL467 & CSA22.22 certified for grounding, bonding and is suitable for direct burial in earth or concrete.
  • Specifications
    • Product Segment : IEI
    • Sub Brand : StructuredGround™
    • Overall Length (In.) : 1
    • Connector Type : E-Style Connector
    • Overall Length (mm) : 25.4
    • Material : Copper
    • Material Properties : High Conductivity
    • Overall Width (mm) : 26.7
    • Overall Width (In.) : 1.05
    • Overall Height (In.) : 2.18
    • Overall Height (mm) : 55.4
    • Maximum Copper Conductor Size (kcmil) : 250
    • Maximum Copper Conductor Size (AWG SOL) : 250
    • Minimum Copper Conductor Size (AWG STR) : 1/0
    • Maximum Ground Rod Size (mm) : 15.87
    • Maximum Ground Rod Size (In.) : 5/8
    • Minimum Ground Rod Size (mm) : 12.7
    • Minimum Ground Rod Size (In.) : 1/2
    • Maximum Rebar Size (mm) : 12.7
    • Maximum Rebar Size (In.) : 1/2
    • Minimum Rebar Size (mm) : 9.52
    • Minimum Rebar Size (In.) : 3/8
    • Panduit Die Index Number : PG25
    • Color Code : Black
    • Standards Met : IEEE Std 837-2002, cULus listed, UL467, CSA 22.2
    • Application : Utility/Ground Grid
    • Product Type : E-Tap Grounding Connector
  • Packaging Details
    • UPC : 07498300955
    • GTIN Package : 00074983009558
    • Standard Package Volume Ft3 : 0.0226
    • Standard Package Weight Pounds : 0.3500
    • Std Package Height In : 2.15
    • Std Package Height MM : 54.61
    • Std Package Length In : 5.6
    • Std Package Length MM : 142.24
    • Std Package Width In : 3.65
    • Std Package Width MM : 92.71
    • Std. Pkg. UOM : Piece
    • UOM EA PK : EA
    • Std. Pkg. Qty. : 1
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983009558
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
