StructuredGround™ CTAP4/0-4/0-X Comp. Tap, 4/0-4/0, Copper, PK10

CU COMP TAP 4/0AWG R/T

PANCTAP4040X CTAP4/0-4/0-X 074983911219
18.48 / EA
http://schema.org/OutOfStock

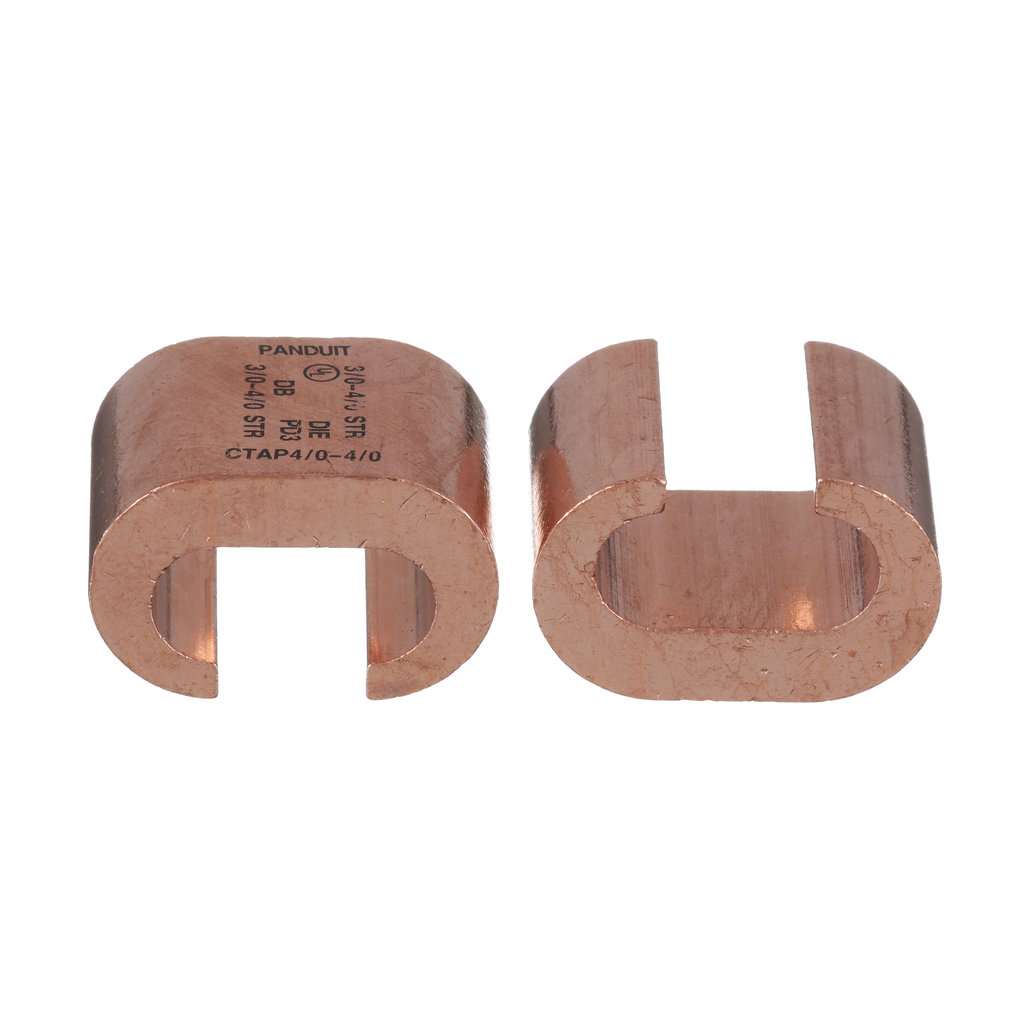

Mayer-DDS-StructuredGround™ CTAP4/0-4/0-X Comp. Tap, 4/0-4/0, Copper, PK10-1
  • Country of Origin: Mexico
  • Height: 1.57 in, 39.9 mm
  • Material: Copper
  • Mounting Type: Direct Burial
  • Overall Length: 1 in, 25.4 mm
  • Type: Compression Tap
  • Width: 1.08 in, 27.4 mm
The CTAP4/0-4/0-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL 486 for use up to 35 kv and temperature rated 90°. Also, UL listed per UL 467 for grounding and bonding suitable for direct burial.
QTY
  • Product Description
  • Specifications
The CTAP4/0-4/0-X Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL 486 for use up to 35 kv and temperature rated 90°. Also, UL listed per UL 467 for grounding and bonding suitable for direct burial.
  • Specifications
    • Product Segment : IEI
    • Sub Brand : StructuredGround™
    • Maximum Tap Size (AWG STR) : 4/0
    • Minimum Tap Size (AWG STR) : 3/0
    • Maximum Run Size (AWG STR) : 4/0
    • Minimum Run Size (AWG STR) : 3/0
    • Overall Length (mm) : 25.4
    • Overall Length (In.) : 1
    • Overall Thickness (mm) : 27.4
    • Overall Width (mm) : 27.4
    • Overall Thickness (In.) : 1.08
    • Overall Width (In.) : 1.08
    • Overall Height (mm) : 39.9
    • Overall Height (In.) : 1.57
    • Panduit Die Index Number : PD3
    • Burndy Die Index Number : F
    • Wire Strip Length (mm) : 32
    • Wire Strip Length (In.) : 1 1/4
    • For Use With : AWG wire only
    • Standards Met : UL 467 listed for Grounding and Bonding and UL 486A for electrical connections up to 35kV.
    • Application : Utility/Ground Grid
    • Product Type : Compression Tap
    • Material : Copper
    • Material Properties : High Conductivity
    • Surface Treatment : Bare
    • Mount Method : Direct burial
  • Packaging Details
    • UPC : 07498391121
    • GTIN Package : 00074983911219
    • Standard Package Volume Ft3 : 0.0328
    • Standard Package Weight Pounds : 2.7500
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 4.75
    • Std Package Length MM : 120.65
    • Std Package Width In : 3.45
    • Std Package Width MM : 87.63
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • RoHS Compliant : Compliant
    • EAN : 00074983911219
    • REACH Status : False
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : No
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1
