Fuse carrier, TeSys DF, 2P, 30A, 600VAC, fuse class CC, blown fuse indicator

FUSEHOLDER 600V 30AMP 2POLES C

SQDDFCC2V DFCC2V 3389118321717
62.79 / EA
http://schema.org/OutOfStock

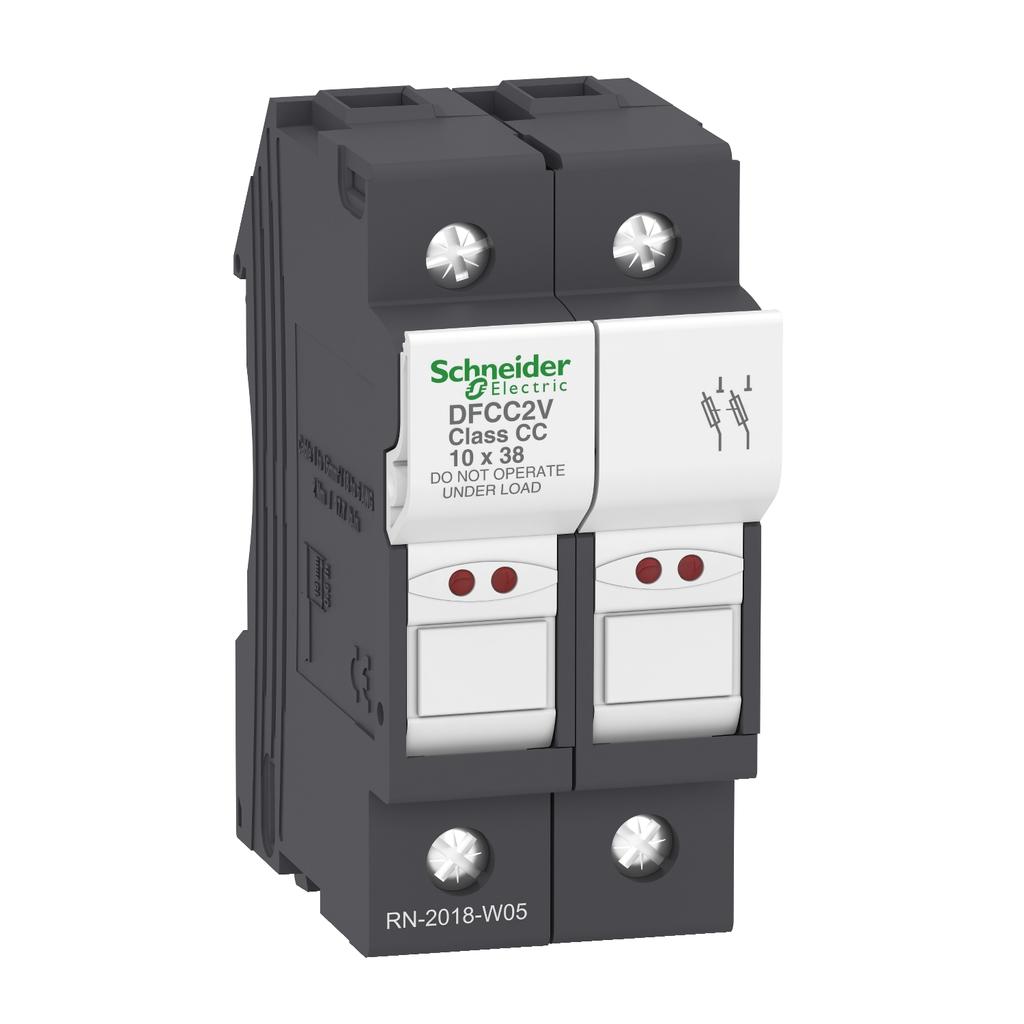

Mayer-DDS-Fuse carrier, TeSys DF, 2P, 30A, 600VAC, fuse class CC, blown fuse indicator-1
  • Country of Origin: France
  • Depth: 61 mm
  • Fuse Type: CC
  • Height: 79.5 mm
  • Net Weight: 0.085 kg
  • Warranty Length: 18 mth
  • Weight: 0.085 kg
  • Width: 35 mm
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. It provides blown fuse indication by LED. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA).
QTY
  • Product Description
  • Features
  • Specifications
TeSys DF modular fuse carrier, 2 poles (2P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. It provides blown fuse indication by LED. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (UL recognized, CSA).
  • Prop 65
    • WARNING: Cancer - www.P65Warnings.ca.gov
  • Environment
    • Ambient Air Temperature For Operation : -40-70 °C with derating above 20°C
    • Ip Degree Of Protection : IP20
    • Pollution Degree : 3
    • Ambient Air Temperature For Storage : -40-70 °C
    • Compatibility Code : DFCC
    • Operating Altitude : 0...6561.68 ft (0...2000 m) without derating
    • Fire Resistance : 960 °C IEC 60695-2-1
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2010021EN
    • Packaging Without Single Use Plastic : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: Cancer - www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Circularity Profile : N/A
    • Take-Back : No
    • Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 1.85
    • Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.9276666666666666
    • Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
    • Eu Rohs Directive : Compliant
    • Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.008873333333333332
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 2.8174023333333333
  • Complementary
    • Height : 79.5 mm
    • Mounting Support : 35 mm symmetrical DIN rail
    • Standards : UL 4248-1 || UL 4248-4 || CSA C22.2 No 4248-1 || CSA C22.2 No 4248-4
    • Product Certifications : UL Recognized || CSA
    • Connections - Terminals : screw clamp terminals 1 1-16 mm²rigid || screw clamp terminals 2 1-6 mm²rigid || screw clamp terminals 1 1-16 mm²flexible with or without || screw clamp terminals 2 1-6 mm²flexible with or without
    • Net Weight : 0.085 kg
    • Mounting Position : vertical +/- 23°)
    • Tightening Torque : 2 N.m PZ2 || 2 N.m flat Ø 5.5 mm
    • Quantity Per Set : set of 6
    • Width : 35 mm
    • Depth : 61 mm
  • Specifications
    • Country of Origin : France
    • Width : 35 mm
    • Height : 79.5 mm
    • Weight : 0.085 kg
    • [Ue] Rated Operational Voltage : 600 V AC
    • Fuse Type : , CC
    • Product Or Component Type : fuse carrier
    • Product Name : TeSys DF
    • Power Dissipation In W : 3 W maximum power dissipation by fuse
    • Utilisation Category : AC-20B IEC 60947-3
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV
    • Range : TeSys
    • Short-Circuit Withstand : 200 kA 600 V UL 512
    • [Ui] Rated Insulation Voltage : 600 V AC
    • [Ie] Rated Operational Current : 30 A
    • Control Type : toggle padlockable
    • Poles Description : 2P
    • Local Signalling : blown fuse indication
    • Device Short Name : DFCC
