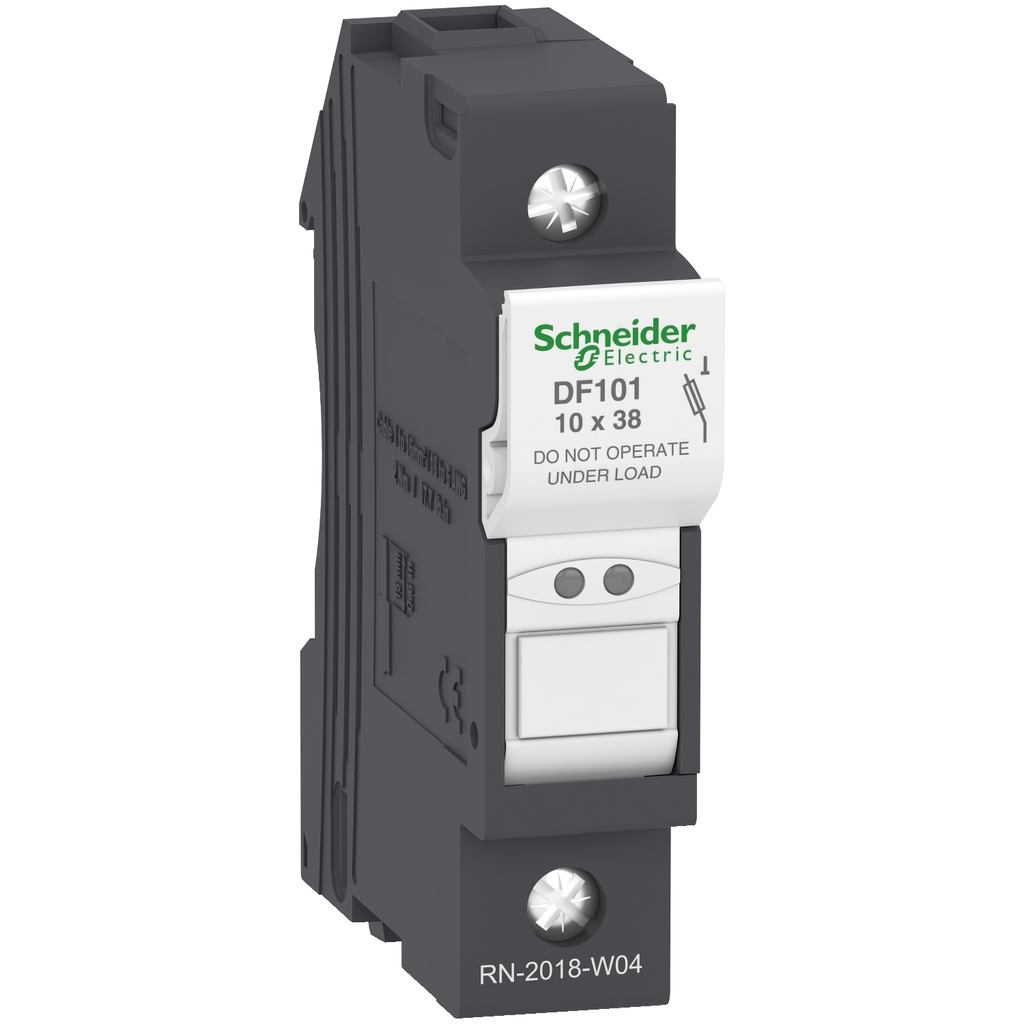

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine).

• Prop 65
• WARNING: Cancer - www.P65Warnings.ca.gov

• Environment
• Ambient Air Temperature For Operation : -40-70 °C with derating above 20°C
• Ip Degree Of Protection : IP20
• Pollution Degree : 3
• Ambient Air Temperature For Storage : -40-70 °C
• Compatibility Code : DF10
• Operating Altitude : 0...6561.68 ft (0...2000 m)
• Fire Resistance : 960 °C IEC 60695-2-1
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2010021EN
• Packaging Without Single Use Plastic : No
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: Cancer - www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0.925
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.506
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Eu Rohs Directive : Compliant
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.00484
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 1.452674
• Complementary
• Height : 79.5 mm
• Mounting Support : 35 mm symmetrical DIN rail
• Standards : EN/IEC 60947-3 || EN/IEC 60269-2 || UL 4248-1 || CSA C22.2 No 4248-1 || EN 45545-2: R22 HL2
• Product Certifications : IEC || UL Recognized || CSA || CCC || EAC || DNV-GL
• Connections - Terminals : screw clamp terminals 1 1-16 mm²rigid || screw clamp terminals 2 1-6 mm²rigid || screw clamp terminals 1 1-16 mm²flexible with or without || screw clamp terminals 2 1-6 mm²flexible with or without
• Net Weight : 0.042 kg
• Mounting Position : vertical +/- 23°)
• Tightening Torque : 2.2 N.m PZ2 || 2.2 N.m flat Ø 5.5 mm
• Quantity Per Set : set of 12
• Width : 17.5 mm
• Depth : 61 mm
• Specifications
• Country of Origin : France
• Width : 17.5 mm
• Height : 79.5 mm
• Weight : 0.042 kg
• Fuse Size : 10 x 38 mm
• [Ue] Rated Operational Voltage : 690 V AC || 690 V DC
• [Ith] Conventional Free Air Thermal Current : 32 A 20 °C
• Fuse Type : 0-32 A, aM || 0-32 A, gG
• Product Or Component Type : fuse carrier
• Product Name : TeSys DF
• Power Dissipation In W : 3 W maximum power dissipation by fuse
• Utilisation Category : AC-20B IEC 60947-3 || DC-20B IEC 60947-3
• [Uimp] Rated Impulse Withstand Voltage : 6 kV
• Range : TeSys
• Overvoltage Category : III
• Short-Circuit Withstand : 120 kA 400 V IEC 60947-3 || 120 kA 500 V IEC 60947-3
• [Ui] Rated Insulation Voltage : 690 V AC
• Product Compatibility : DF2CA fuse cartridge || DF2CN fuse cartridge
• [Ie] Rated Operational Current : 32 A 400 V AC
• Control Type : toggle padlockable
• Poles Description : 1P
• Device Short Name : DF10
