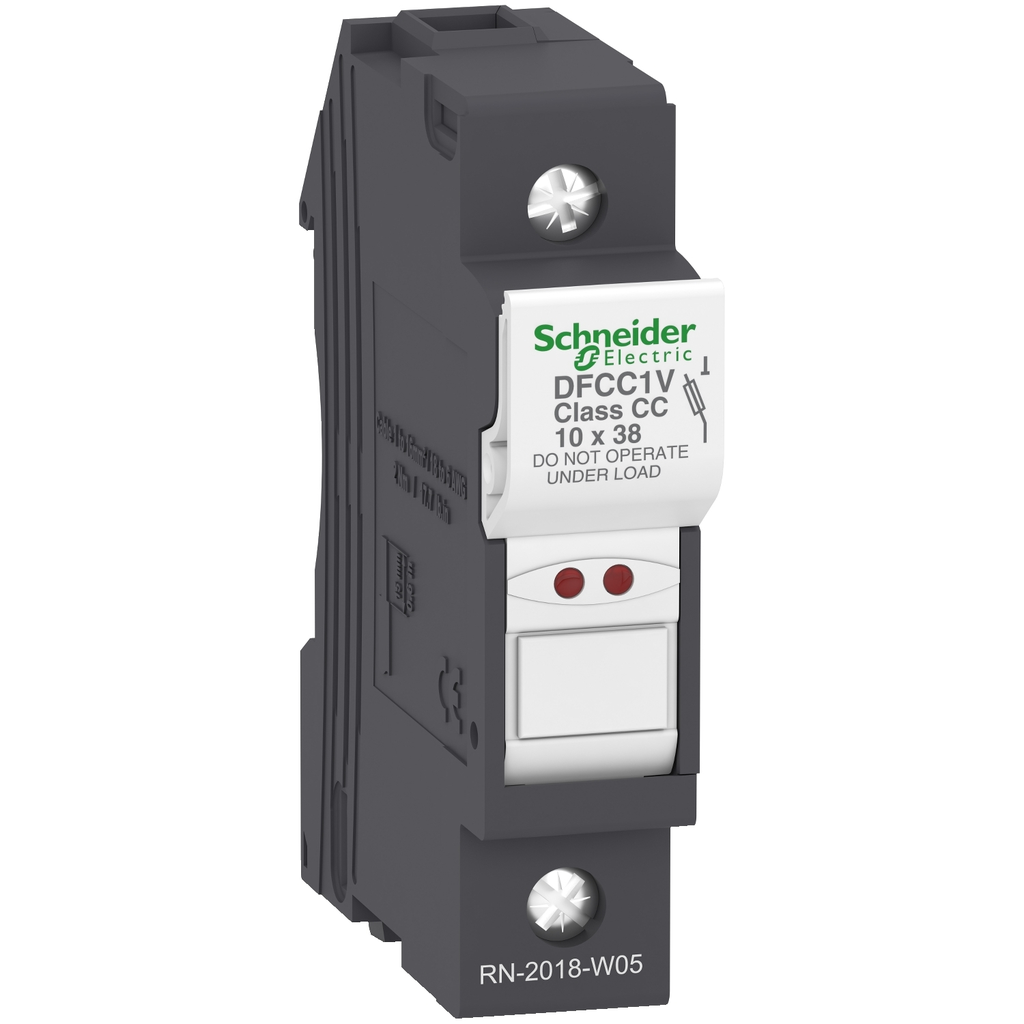

TeSys DF modular fuse carrier, 1 pole (1P), for protection of control circuits up to 30A/600V, for North American market. To be used with class CC fuse links up to 30A and short circuit current up to 200kA@600V. It provides blown fuse indication by LED. Compact (17.5mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 12 units. Multi standards certified (UL recognized, CSA).

• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0003436_3D-CAD&p_File_name=MCADPP0003436_2D-top.dxf
• Conformance Attributes
• Product Certifications : UL Recognized, CSA
• Standards : UL 4248-1, UL 4248-4, CSA C22.2 No 4248-1, CSA C22.2 No 4248-4
• Complementary Attributes
• Short Circuit Withstand : 200 kA 600 V UL 512
• Ie Rated Operational Current : 30 A
• Ue Rated Operational Voltage : 600 V AC
• Ui Rated Insulation Voltage : 600 V AC
• Uimp Rated Impulse Withstand Voltage : 6 kV
• Important Information Attributes
• Persona Type Ids : EU, LC, OM, OM8, PB
• Persona Type Names : End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Fuse Type : , CC, , CC
• Tightening Torque : 2 N.m PZ2, 2 N.m flat Ø 5.5 mm
• Connections Terminals : screw clamp terminals 2 1-6 mm²flexible with or without, screw clamp terminals 1 1-16 mm²rigid, screw clamp terminals 2 1-6 mm²rigid, screw clamp terminals 1 1-16 mm²flexible with or without
• Carbon Footprint Of The Distribution Phase A4 : 0.015308333333333332, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.004436666666666666
• Carbon Footprint Of The Installation Phase A5 : 0.00012283333333333333, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.5 kg CO2 eq., 0.4638333333333333
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.9 kg CO2 eq., 0.925
• Medium Desc : Fuse carrier, TeSys DF, 1P, 30A, 600VAC, fuse class CC, blown fuse indicator
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-18
• Global Commercial Status : Commercialised
• Html Descr : Fuse carrier TeSys DFPoles description : 1PSystem Voltage : 600 V AC Rated operational current : 30 ARated insulation voltage : 600 V ACRated impulse withstand voltage : 6 kV
• Return Indicator : Y
• Stocking Flag : N
• Manufacturer : Schneider Electric
• Device Type : LV equipment - LV fuse - disconnector
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Service Catalog Item : Finished good
• Weee Applicability : Finished product
• Weee Scope : In
• Legacy Weee Scope : In
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Compatibility Code : DFCC
• Control Type : toggle padlockable
• Device Short Name : DFCC
• Energy Efficiency Optimized : False
• Fire Resistance : 960 °C IEC 60695-2-1
• Local Signalling : blown fuse indication
• Mounting Position : vertical +/- 23°)
• Mounting Support : 35 mm symmetrical DIN rail
• Poles Description : 1P
• Power Dissipation In W : 3 W maximum power dissipation by fuse
• Product Availability : Stock - Normally stocked in distribution facility
• Product Name : TeSys DF
• Product Or Component Type : fuse carrier
• Quantity Per Set : set of 12
• Range : TeSys
• Range Of Product : TeSys fuse carriers
• Returnability : Yes
• Short Circuit Withstand : 200 kA 600 V UL 512
• Software Version : EIME v5.8.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Utilisation Category : AC-20B IEC 60947-3
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Ie Rated Operational Current : 30 A
• Pep Code : ENVPEP2010021EN
• Database Version : 2016-11
• Pep Verification Date : 2020-10-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protecting electrical circuits from current surges and guaranteeing the electrical safety of the system for 20 years. Impacts are given for a product unit (“declared unit”).
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: France
• Energy Model Installation A5 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model Use B6 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Energy Model End Of Life C1 C4 2 : Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
• Height Nominal : 79.5 mm
• Width Nominal : 17.5 mm
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Ambient Air Temperature For Operation : -40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C, -40-70 °C with derating above 20°C
• Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
• Take Back : Nej
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 1.4087011666666667
• Environmental Disclosure : ENVPEP2010021EN
• Eu Rohs Directive : Compliant
• Ip Degree Of Protection : IP20
• Operating Altitude : 0...6561.68 ft (0...2000 m) without derating
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2010021EN
• Pep Verification Date : 2020-10-01
• Pcr Version : PCR-ed3-EN-2015 04 02
• Psr Version : PSR-0005-ed2-EN-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : fuse carrier
• Range Of Product : TeSys fuse carriers
• ETIM
• ETIM 8 : EC002705
• ETIM 9 : EC002705
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
• Depth : 61 mm
