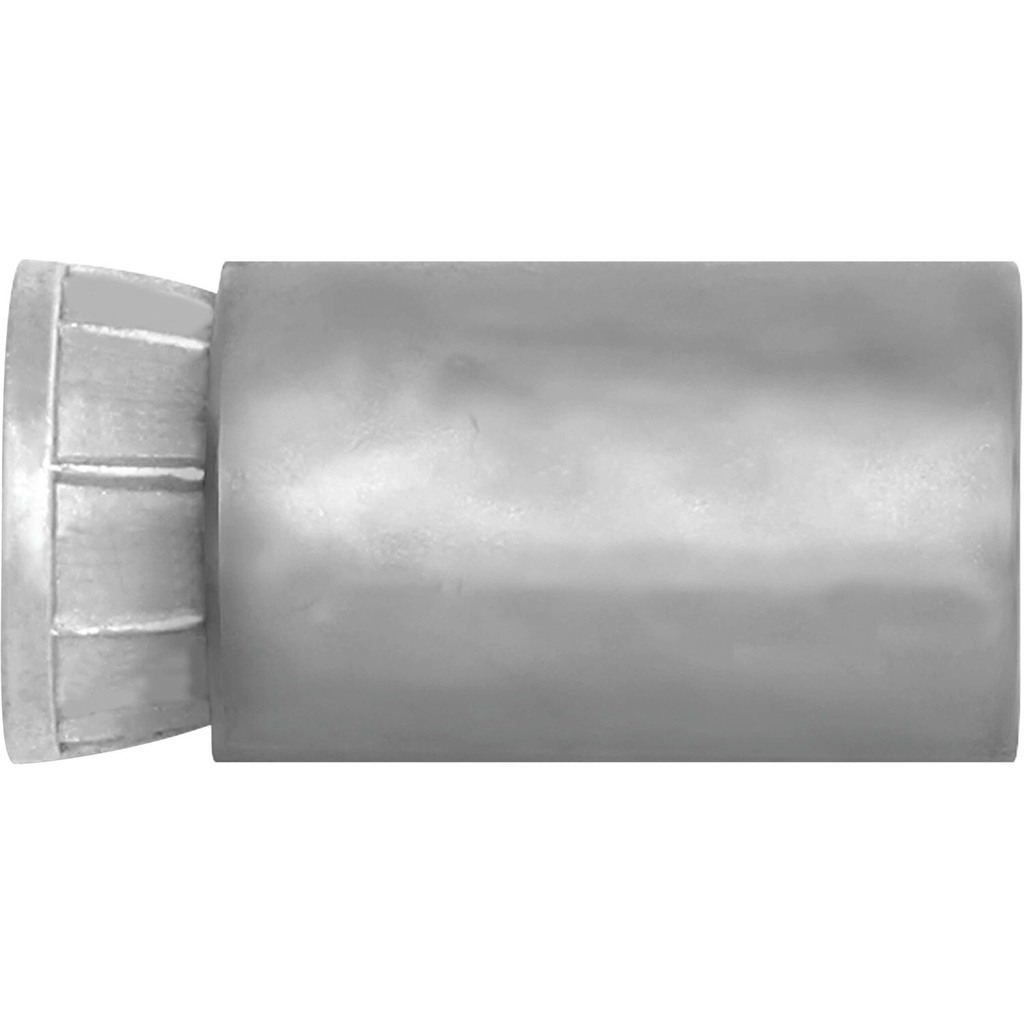

The Calk-In is a pre-assembled precision cast calking type machine bolt anchor which can be used in concrete, block, brick or stone. The Calk-In consists of an antimonial lead alloy calking sleeve and a Zamac alloy internally threaded expanded cone. This anchor is not recommended for use in overhead applications.

• Guide Specifications
• CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and 05090-Metal Fastening. Machine bolt anchors shall be Calk-In as supplied by Powers Fasteners, Inc., Brewster, NY
• Features And Benefits
• Readily accepts machine bolts
• Internally threaded anchor for easy removability and service work
• Shallow embedment
• Approval And Listings
• Federal GSA Specification - Meets descriptive and proof load requirements of CID A-A-1922A, Type 1
• Suitable Base Materials
• Normal-Weight Concrete
• Grout-Filled Concrete Masonry (CMU)
• Brick Masonry
• General Applications And Uses
• Windows
• Sliding Doors
• Screens
• Shutters

• Product Specifications
• Std. Box : 50
• Wt. /100(lbs.) : 14
• Size : 3/8"-16
• Minimum Hole Depth : 1 1/4"
• Drill Diameter : 3/4"
• Standard Carton : 250
• Ordering Information
• Thread Version : UNC Thread
• Anchor Materials : Antimonial Lead Alloy Body and Zamac Alloy Cone
• Rod/Anchor Size Range (Typ.) : No. 8 Screw to 1/2" diameter
