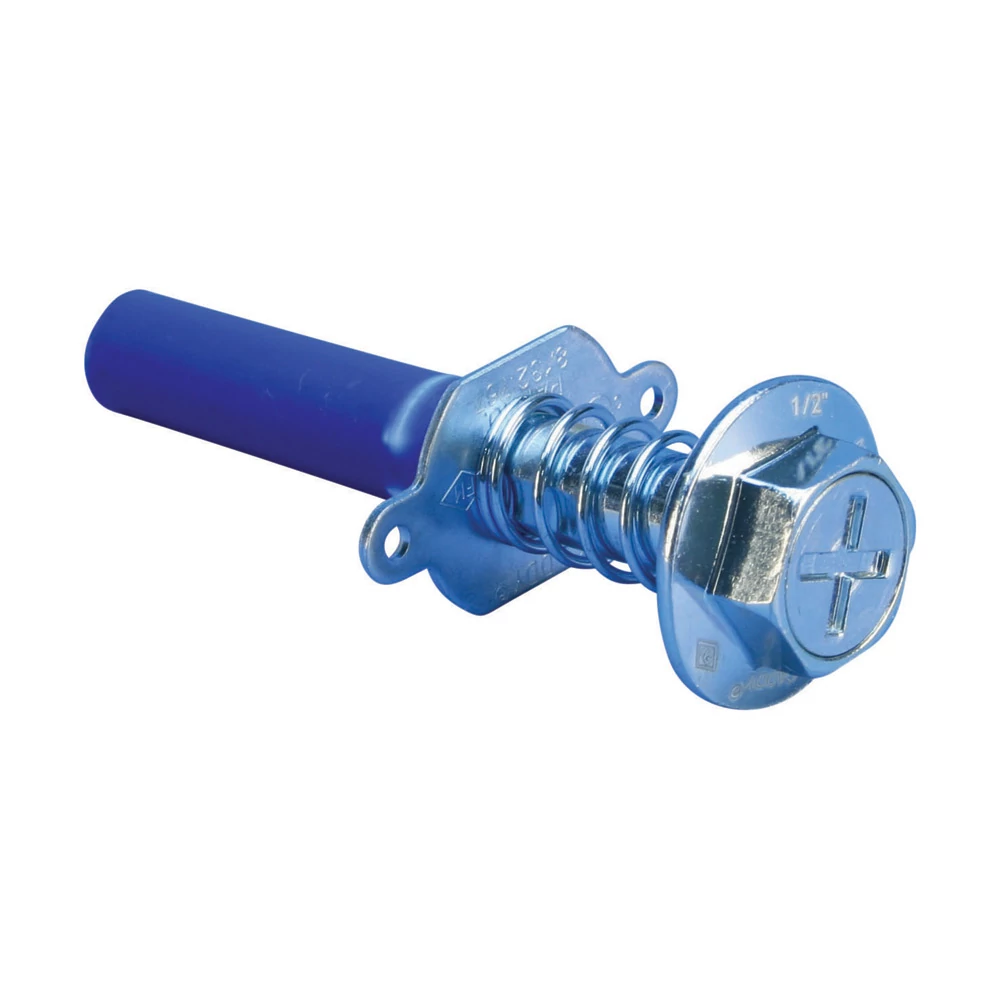

Innovative preset anchors for metal decking, designed to simplify installation of threaded rod assemblies thanks to the nVent CADDY Rod Lock push-to-install technology. Ideal for prefabrication. Push-to-install technology, female threaded 3/8"-16.

• Features
• Set in place through a drilled hole in the metal decking before the concrete is poured
• Eliminate overhead drilling into building structure - nVent CADDY Rod Lock Preset Anchors are cast in place
• Easy "push-to-install" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
• Can be used in lower and upper flute installations
• Works with slightly damaged threads and minor burrs on the threaded rod
• Prefabricated assemblies easily lift and lock into place, helping to save time and money
• Plastic flange acts as insert locator when the forms are removed
• Rated for cracked concrete per ICC-ES AC446 according to ICC-ES ESR-3864 evaluation report
• Suitable for seismic bracing according to ICC-ES ESR-3864 evaluation report
• Certifications
• FM
• ICC-ES - AC446

• Specifications
• Length : 69.85 millimetre
• Width : 38.10 millimetre
• Height : 143.26 millimetre
• Weight : 0.17 kilogram
• Material : Steel
• Finish : Electrogalvanized
• Rod Size (RS) : 0.375
• Diameter 1 (Ø1) : 42-42.00
• Diameter 2 (Ø2) : 17.8-17.80
• Height (H) : 142.2-142.20
• Length (L) : 71.1-71.10
• Width (W) : 38.1-38.10
• Drill Bit Diameter : 19
• Static Load (F) : 3,700
• Sub Brand : CADDY
