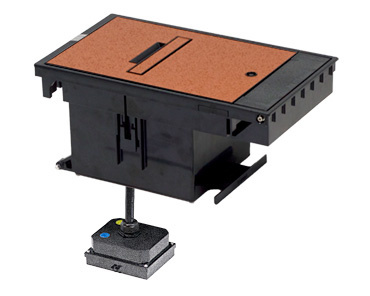

Exterior Box Cover Assembly, 2 NEMA 5-20R Locking Receptacles, Brown (COVER ONLY)

EXTERIOR BX CVR ASSY 4 20A REC

WRMXB814C520BN XB814C520BN 786776187199
1384.05 / EA
http://schema.org/OutOfStock
Mayer-DDS-Exterior Box Cover Assembly, 2 NEMA 5-20R Locking Receptacles, Brown (COVER ONLY)-1
  • Amperage: 20 A
  • Applications: Commercial, Education, Entertainment, Healthcare, Hospitality, Parks, Retail, Transit
  • Construction: Assembled
  • Country of Origin: China
  • Enclosure Material: Type 6P
  • Height: 19.625 in
  • Length: 14.0 in
  • Load Capacity: 5000.0 lb
  • Material: Plastic
  • Number of Gangs: 1
  • Number of Receptacles: 1.0
  • Type: Ground Box Cover
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 9.0 lb
  • Width: 7.375 in
The brown Outdoor Ground Box cover assembly is prewired on a single circuit with (2) 20A weather resistant duplex receptacles. CAUTION: All ground box electrical circuits must be protected by a Ground Fault Circuit Interrupter upstream from the ground box.NOTE: Cover must be closed while in use. Use only molded plug and cord assemblies that are rated for outdoor use.NOTE: Maximum length of plug allowed at end of cord is 3'' (76mm).
QTY
  • Product Description
  • Features
  • Specifications
The brown Outdoor Ground Box cover assembly is prewired on a single circuit with (2) 20A weather resistant duplex receptacles. CAUTION: All ground box electrical circuits must be protected by a Ground Fault Circuit Interrupter upstream from the ground box.NOTE: Cover must be closed while in use. Use only molded plug and cord assemblies that are rated for outdoor use.NOTE: Maximum length of plug allowed at end of cord is 3'' (76mm).
  • Features
    • cUL Coming Soon
    • UL listed to UL50E Type 6P (NEMA 6P) and IP68 requirements while in use
    • ADA compliant
    • Outdoor-rated construction
    • Keeps receptacles and connections dry even when submerged
  • Certifications
    • RoHS Compliant
    • cULus Listed
  • Specifications
    • Height : 19.625 in
    • Special Features : 2 20A weather resistant duplex receptacles, NEMA 6P wiring enclosure, diving bell design to keep water out of electrical connections
    • Length : 14.0 in
    • Weight : 9.0 lb
    • Amperage : 20.0 A
    • Width : 7.375 in
    • Is Pre-Wired : Yes
    • Number of Gangs : 1
    • Country of Origin : China
    • Type : Ground Box Cover
    • Construction : Assembled
    • Enclosure Type : Type 6P
    • Features : ADA Compliant
    • Load Capacity : 5000.0 lb
    • Service Capacity : Single
    • Application Sector : Parks
    • Application Sector : Retail
    • Number of Receptacles : 1.0
    • Application Sector : Transit
    • Application Sector : Education
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • NEMA Configuration Code : 5-20R
    • Application Sector : Hospitality
    • Application Sector : Entertainment
    • Installed Devices : Duplex Receptacle
    • Color : Brown
    • Material : Plastic
    • Product Line : Wiremold
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Standard : UL Listed Outdoor In-Ground Boxes: File E486738 Guide QCNL.
