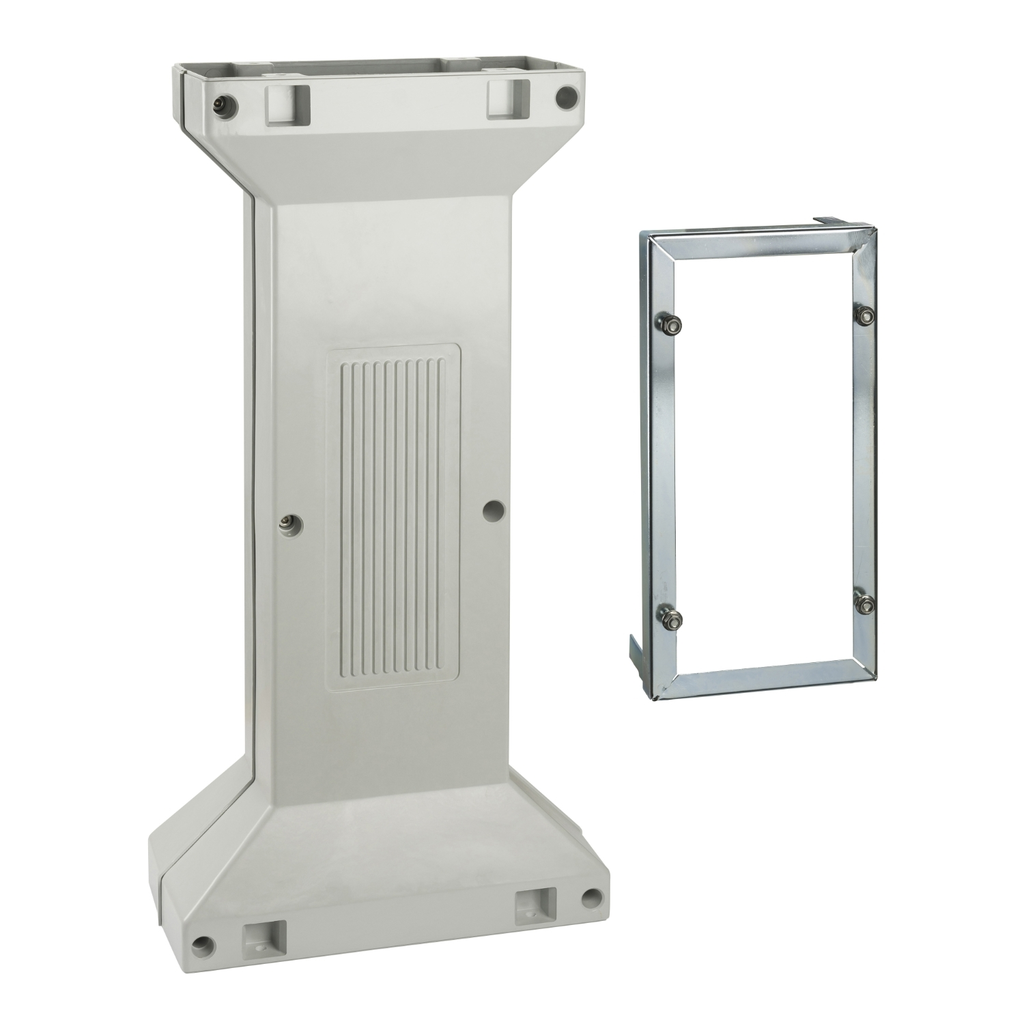

Floor mounting pillar for Thalassa PLM54 and 64. H is 800 mm. Multi-purpose application. Mounting on the floor. Fixing mode by fixing element. Polyester charged with fibreglass for support pillar and steel for floor frame. Grey RAL 7035.

• Physical Attributes
• Color : support pillar Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : fixing elements1 support pillar, 1 floor frame
• Enclosure Nominal Dimensions : -, -
• Carbon Footprint Of The Distribution Phase [A4] : 13.103129711848476, 13 kg CO2 eq.
• Carbon Footprint Of The End-of-life Phase [C1 To C4] : 13 kg CO2 eq., 13.426964357040609
• Carbon Footprint Of The Installation Phase [A5] : 1.5756771618121548, 2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 26 kg CO2 eq., 26.220285954623947
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-04-13
• Return Indicator : N
• Stocking Flag : Y
• Stock Policy : 2
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 2041
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Fixing Mode : by fixing element
• Material : support pillar polyester charged with fibreglassfloor frame steel
• Mounting Location : on the floor
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : support pillar
• Range : PanelSeT
• Returnability : No
• Software Version : v6.1
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 54 kg CO2 eq.
• Pep Code : ENVPEP1101018EN
• Database Version : 2023-02
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional-unit Description : Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
• Functional-unit Quantity : 1
• Functional-unit Unit : Unit
• Reference Lifetime, In Y : 20
• Energy Model - Manufacturing [A1-a3] : Spain, ES
• Energy Model - Installation [A5] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model - Use [B6] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Energy Model - End Of Life [C1-c4] : Electricity Mix; Low voltage; 2018; Europe, EU-27
• Recyclability Potential, In % : 5
• Height Nominal : 800 mm
• Height Useful : 800 mm
• Width Nominal : at the base: 405 mm
• Width Real : on the top: 355 mm
• Accessory / Separate Part Category : mounting accessory
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 6.600 kg
• Silicone-free : Yes
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 3926909989
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : Yes
• Carbon Footprint : 54.32605718532518
• Environmental Disclosure : ENVPEP1101018EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1101018EN
• Pep Verification Date : 2024-12-01
• Pcr Version : PCR-4-ed4-EN-2021 09 06
• Psr Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : support pillar
• ETIM
• ETIM 8 : EC000721
• ETIM 9 : EC000721
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain, France
• Height : 31.5 in
• Width : 13.98 in
