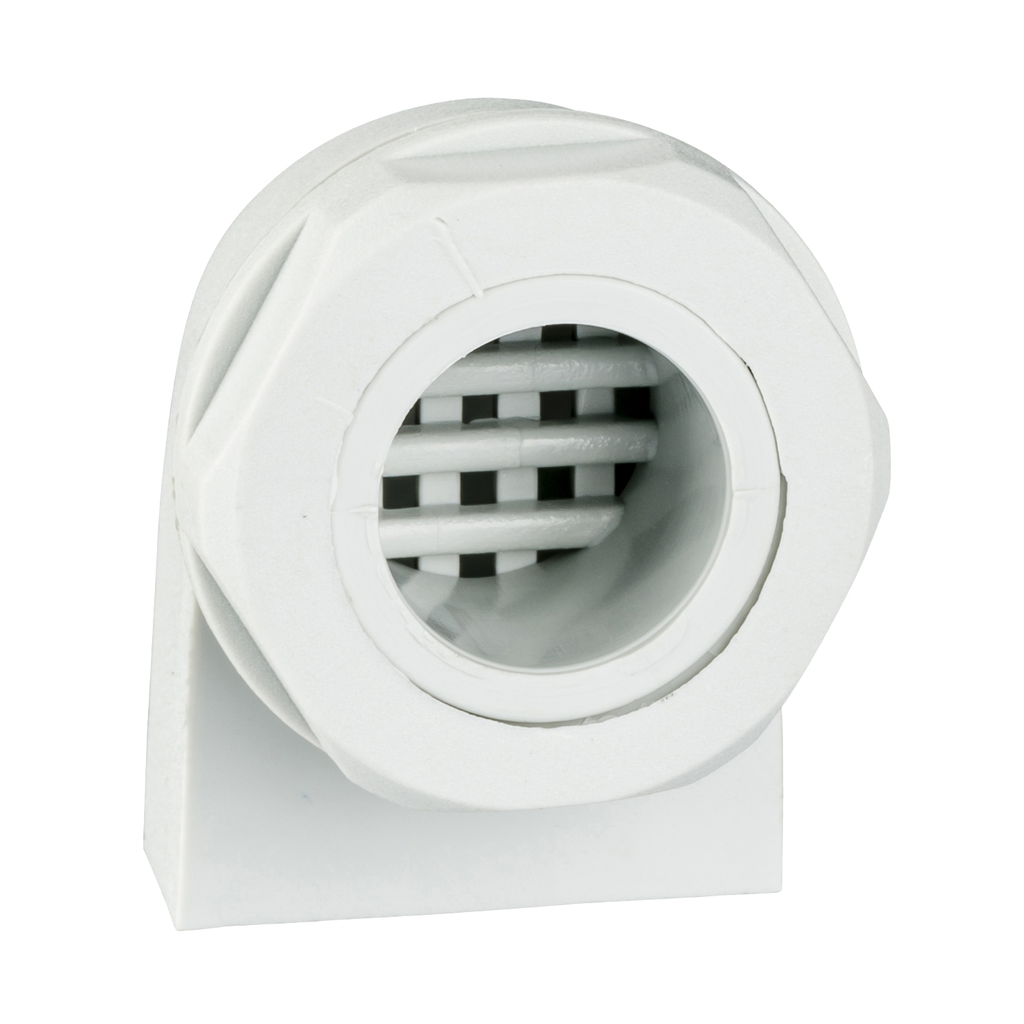

Plastic ventilation louvre 23.5 x 30mm made from polyamide 6 for PanelSeT PLS, PanelSeT PLM and PanelSeT TBS enclosures. The kit is made of 2 plastic louvres. The external width is 23.5mm. Ingress protection rating (according to IEC 60529) is IP45. Fixing by screws. Mounting position is vertical. Cut-out dimensions is 19mm. Painted in grey (RAL 7035). Painted in grey (RAL 7035).

• Features
• Fixing mode : screws
• Without filter
• Colour code RAL7035
• Cut-out dimensions 19mm diameter .
• Ext Dimensions : 30 x 23,5 x 22 mm.

• Physical Attributes
• Color : Gray RAL 7035)
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Local Data Status : Publishable
• Local Publishable Date : 2025-09-16
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Cut Out Dimensions : 19 mm
• Device Composition : 2 plastic louvre
• Energy Efficiency Optimized : False
• Fixing Mode : by screws
• Material : polyamide 6
• Mounting Position : vertical
• Package Weight Lbs : 7.000 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : plastic ventilation louvre
• Range : ClimaSys
• Returnability : No
• Sustainable Packaging : No
• Accessory Separate Part Category2 : thermal management accessory
• Accessory Separate Part Destination2 : ClimaSys ventilation system
• Medium Desc : Airing grille cut-out diameter 19mm IP45
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP2012014EN
• Global Commercial Status : Commercialised
• Product Name : ClimaSys CA
• Environment Attributes Main
• Take Back : No, Nej
• China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2012014EN
• IP Degree Of Protection : IP45
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2012014EN
• General Attributes
• Product Or Component Type : plastic ventilation louvre
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Height : 1.18 in
• Width : 0.93 in
