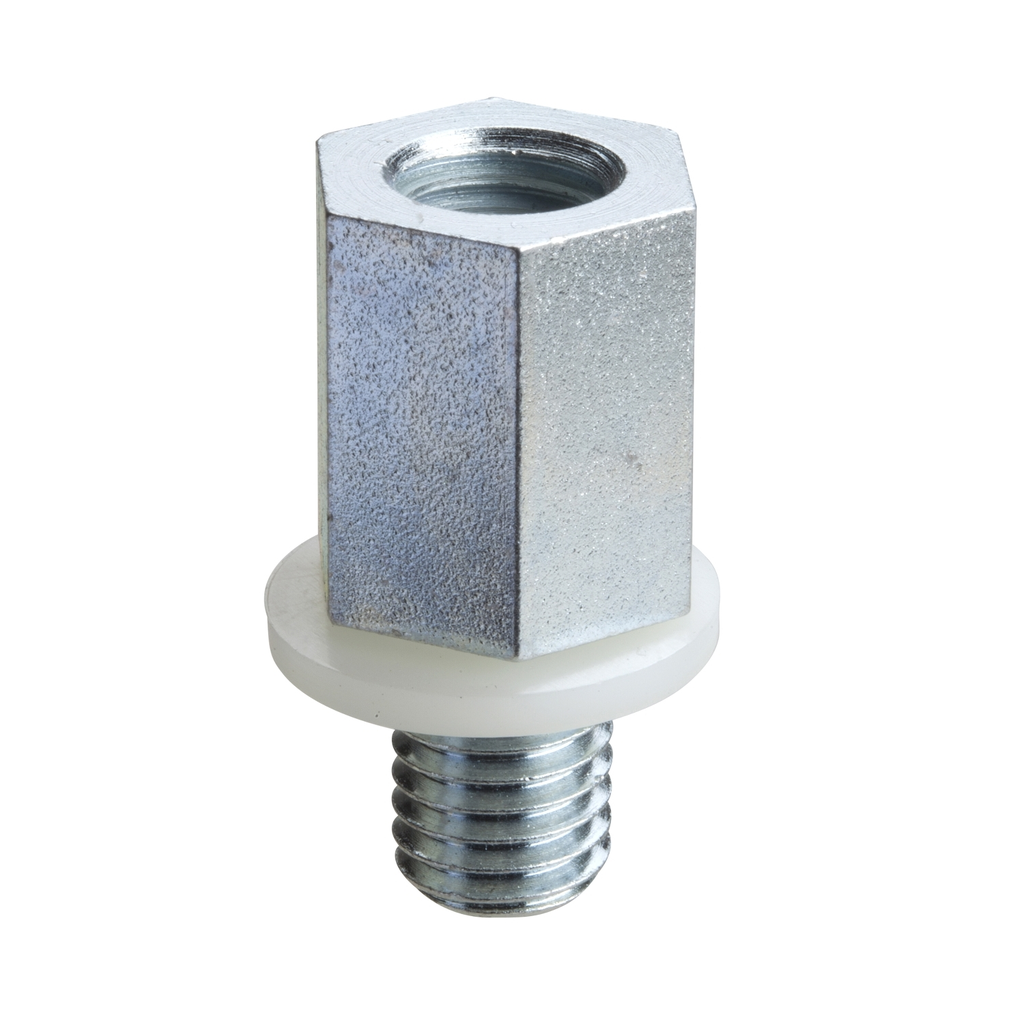

Spacial SF ventilation elevator for roof of suitable enclosure. H is 60 mm. Allows lifting of the enclosures roof, facilitating its natural ventilation. Mounting on top of enclosure. Fixing by screw type M12 on roof. Steel made, zinc-coated surface finish. IP20 protection. 4 elevation brackets.

• Specifications
• Country of Origin : Spain
• Range Compatibility : PanelSeT PanelSeT SF suitable enclosure
• Accessory / Separate Part Category : enclosure accessory
• Product Or Component Type : ventilated roof
• Device Composition : 4 elevator
• Range : PanelSeT
• Quantity Per Set : set of 1
• Device Application : multi-purpose
• Contractual warranty
• Coverage : Core product
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : No
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP110923EN
• Packaging Without Single Use Plastic : No
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Reach Free Of Svhc : Yes
• Circularity Profile : N/A
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 3.697695814
• Carbon Footprint Of The Distribution Phase [A4] : 0.2 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0.2 kg CO2 eq.
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 6 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 2.000571311
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 6.050778794
• Complementary
• Fixing Mode : by screwsM12 - roof fixing point
• Surface Finish : zinc coated
• Depth : 18.9 mm
• Width : 21.8 mm
• Height : 60 mm
• Ip Degree Of Protection : IP00
• Material : steel
