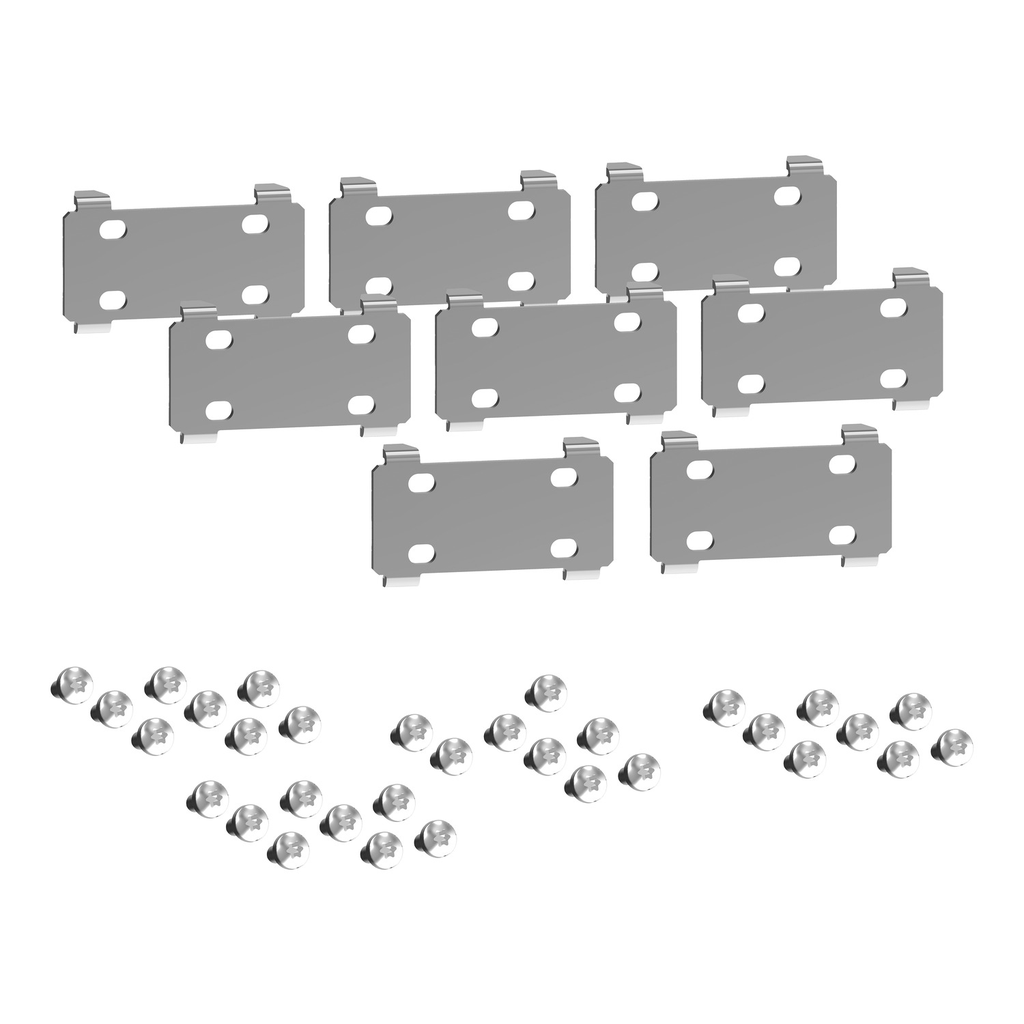

This is a coupling kit system suitable for PrsimaSeT, PanelSeT SFN and PanelSeT SF electrical enclosures equipped with swinging 19” rack. It is designed to form side-by-side or back-to-back combintations. The kit contains 8 flat connectors, sealing gasket and the fixing elements. The sealing gasket is made of EPDM and the flat connectors are made of steel. Anti-corrosion protection is ensured by an epoxy-polyester zinc coated coating. The IP degree of protection is 55.

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Application : Prisma application, multi-purpose
• Device Composition : 8 flat connector, fixing elements, sealing gasket
• Mounting Location : side coupling of 2 enclosures, depthwise coupling of 2 enclosures
• Local Data Status : Publishable
• Local Publishable Date : 2026-04-15
• Return Indicator : Y
• Stocking Flag : N
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1912
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Energy Efficiency Optimized : False
• Fixing Mode : by screws M6 self tapping
• Material : sealing gasket EPDMflat connector steel
• Mounting Diameter : 0 mm
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : coupling kit
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : Yes
• Surface Finish : zinc coated
• Sustainable Packaging : No
• Height Nominal : 80 mm
• Height Useful : 80 mm
• Width Nominal : 345 mm
• Width Real : 345 mm
• Accessory / Separate Part Category : coupling accessory
• Nbr. Of Units In Pkg. : 1
• Package Weight(Lbs) : 1.416 kg
• Take-back : No
• Warranty (In Months) : 18
• Customs Code : 7326908688
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP55
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• General Attributes
• Product Or Component Type : coupling kit
• ETIM
• ETIM 8 : EC002622
• ETIM 9 : EC002622
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain, France
• Height : 3.15 in
• Width : 13.58 in
• Depth : 335 mm
