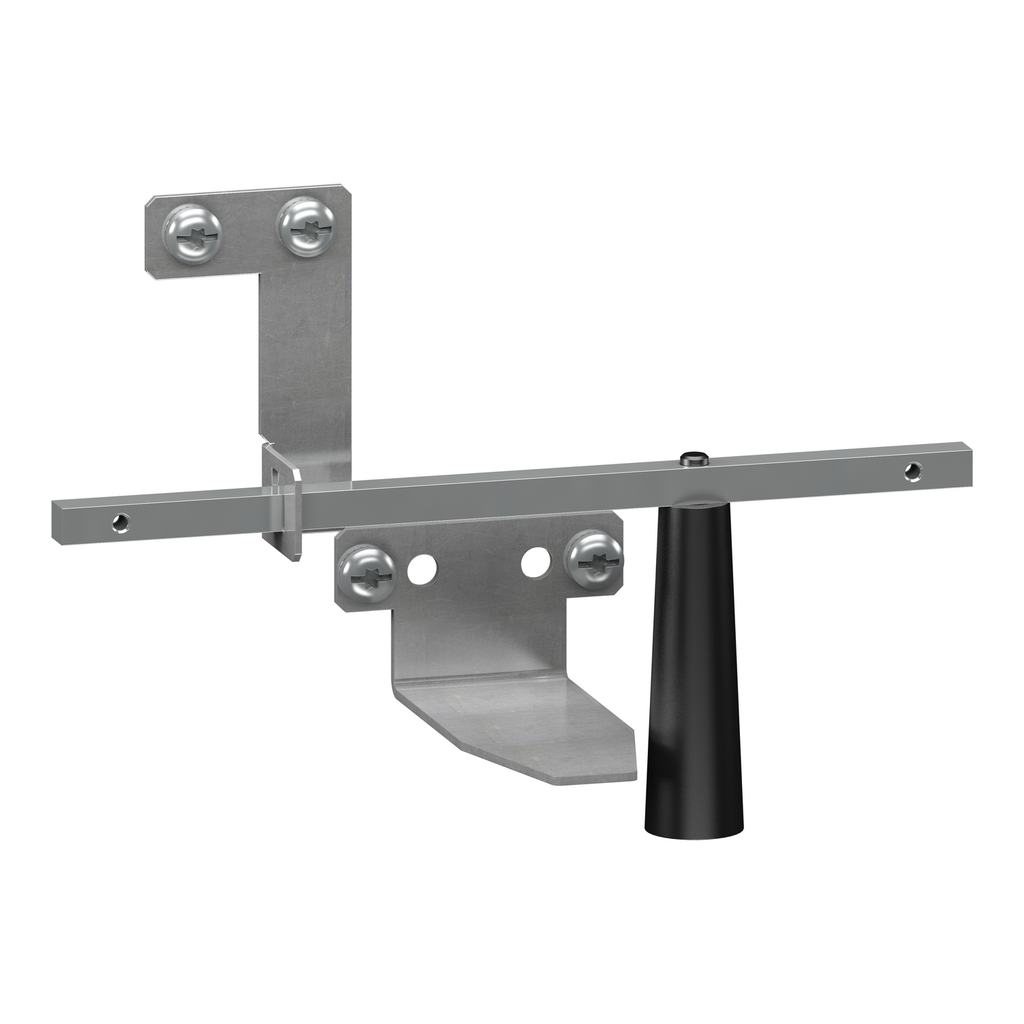

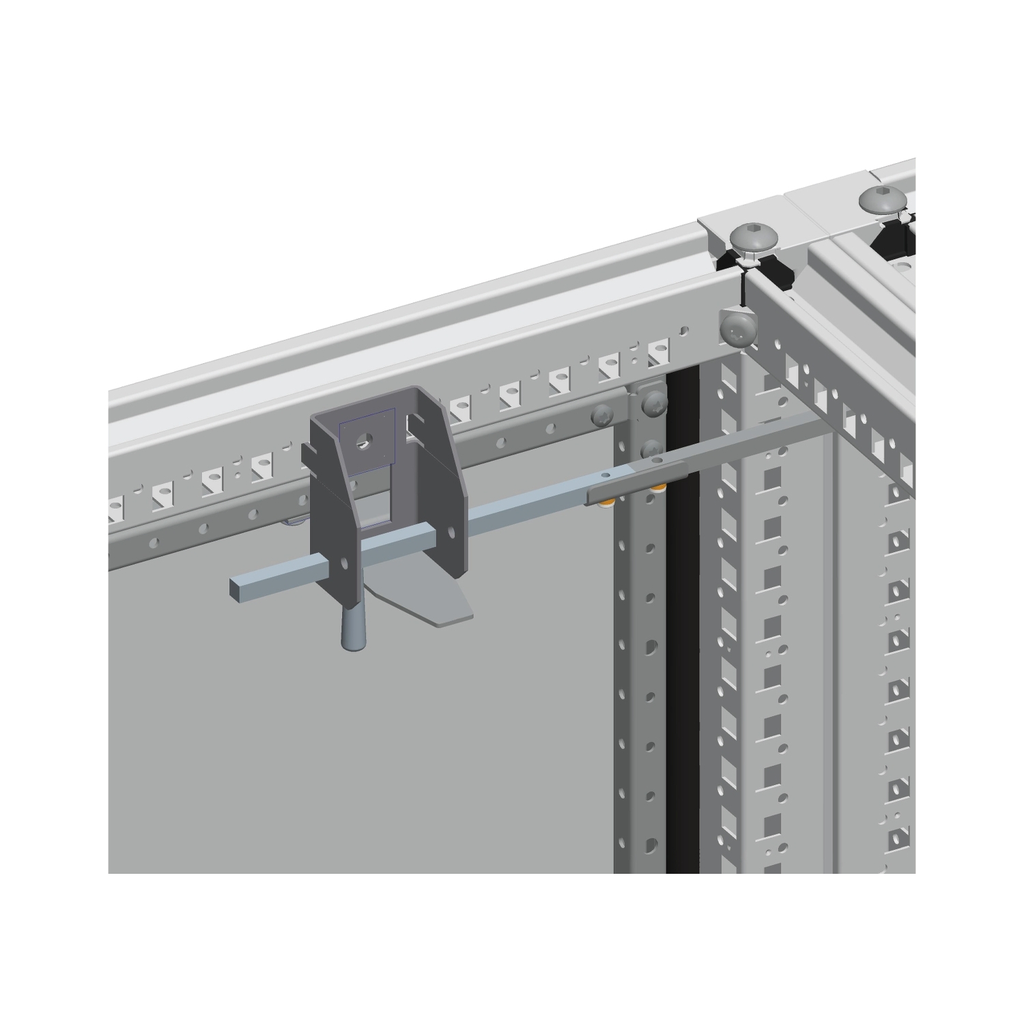

This is an activation system for secondary doors. It is designed to be installed in the main enclosure. Activated by manual operation, preventing the opening of the secondary enclosures connected to one another by runner rods. The safety function consists of a part that forces the system into the position in which the secondary enclosures are locked in order to lock the main door. The mechanism is made zinc-coated steel and the activation handle is made of black plastic. The set contains the elements for activating the main door as well as fixin elements.

• Physical Attributes
• Color : handle Black
• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 x handle, fixing elements, 1 x mechanism
• Enclosure Nominal Dimensions : -, -, -, -
• Material : activation handle plastic, mechanism steel
• Mounting Support : interlocking for secondary doors, interlocking for main door
• Carbon Footprint Of The Distribution Phase A4 : 0.078924297, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 1 kg CO2 eq., 0.963847518
• Carbon Footprint Of The Installation Phase A5 : 0.090910937, 0.1 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.781498571
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-02-11
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : N
• Function Option Id : STANDARD
• Function Option : Standard
• Device Application : automobile application
• Energy Efficiency Optimized : False
• Fixing Mode : by fixing element - on structure
• Mounting Location : on top structure of main enclosure
• Package Weight Lbs : 410.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : activation for secondary door
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Surface Finish : zinc coated
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 3 kg CO2 eq.
• Medium Desc : Activation system for secondary doors, PanelSeT SFN, PanelSeT SF, steel
• Stocking Flag : Y
• Product Kit Identifier : N
• Pep Code : ENVPEP1109023EN
• Database Version : 2022-01
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
• Functional Unit Unit : unit
• Energy Model Manufacturing A1 A3 2 : Electricity Mix; Production mix; Low voltage; FR
• Global Commercial Status : Commercialised
• Environment Attributes Main
• Take Back : No, Nej
• EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Exemption Information : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 2.915181323
• Environmental Disclosure : ENVPEP1109023EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109023EN
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : activation for secondary door
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : United States
