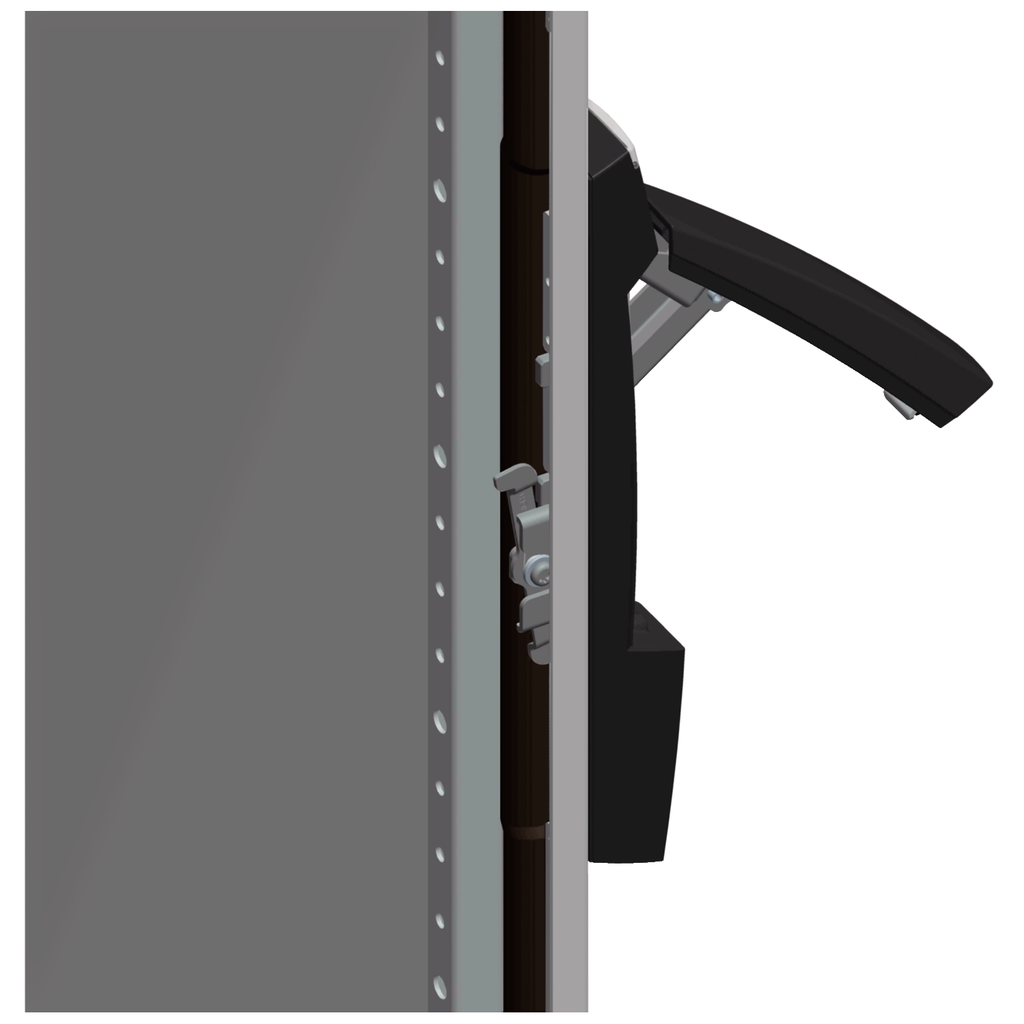

This is a locking system to be installed on the central locking bar of the door. This product is suitable for PanelSeT SFN, PanelSeT SF and PanelSeT SM electrical enclosures. It works as a locking bar immobiliser, helping prevent the handle from closing while the door is still open. It is compatible with all handle lock versions, except the flat lock and the small flat lock. The product contains one mechanism and fixing elements.

• Prop 65
• No CA Prop 65 warning needed

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 1 mechanism, 1 triangular insert, fixing elements, key
• Carbon Footprint Of The Distribution Phase A4 : 0.007314935, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.089332209
• Carbon Footprint Of The Installation Phase A5 : 0.008425892, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.165114502
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2026-04-14
• Return Indicator : N
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Conformity Date : 1912
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• China Rohs Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : multi-purpose
• Energy Efficiency Optimized : False
• Lock Type : locking accessory
• Mounting Support : direct mounting on handle
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : locking system
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : No
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
• Database Version : 2022-01
• Data Source : extrapolated product
• Accessory / Separate Part Category : locking accessory
• Accessory / Separate Part Type : lock
• Nbr. Of Units In Pkg. : 1
• Customs Code : 8301300090
• Silicone Free : No
• Warranty In Months : 18
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Recyclability Potential In % : 98
• Environment Attributes Main
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 0.270187537
• Environmental Disclosure : ENVPEP1109023EN
• Eu Rohs Directive : Compliant By Exemption
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109023EN
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : locking system
• ETIM
• ETIM 8 : EC000327
• ETIM 9 : EC000327
• ETIM 10 : EC000327
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Germany
• Weight : 38 g
