SQUARE D

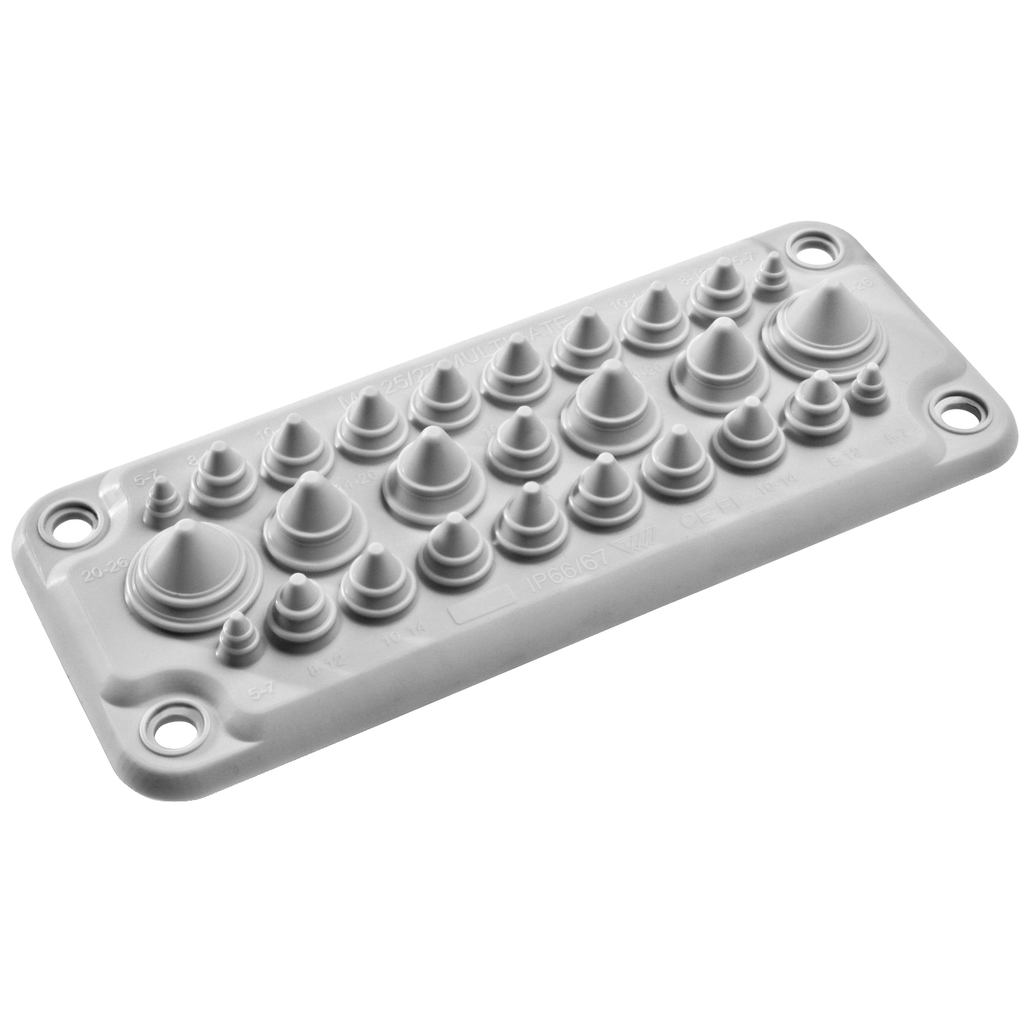

Cable entry membrane, PanelSeT, PanelSeT, type FL21 with 25 entrances IP66

membrane for cable entr.FL 21

SQDNSYAECPFLT25 NSYAECPFLT25 3606480169052
25.58 / EA
http://schema.org/OutOfStock
Mayer-DDS-Cable entry membrane, PanelSeT, PanelSeT, type FL21 with 25 entrances IP66-1
  • Material: Thermoplastic Elastomer
  • Warranty Length: 18 mth
  • Width: 7.64 in
Cable entry membrane type FL21 for Spatial S3D, Spatial CRN and Spatial SF enclosures. The 27 entrances allow multi-purpose use with cables ranging from 5 mm to 26 mm in diameter. The 27 entry diameter are the following: 4 entry ranging from 5 mm to 7 mm, 4 entry ranging from 8 mm to 12 mm, 13 entry ranging from 10 mm to 14 mm, 4 entry ranging from 14 mm to 20 mm and 2 entry ranging from 20 mm to 26 mm. IP66 protection against water and dust is maintained according to IEC 60529. The product can be used in a temperature range from -40 ºC to +100 ºC and have a flame resistance of 650 ºC according to UL 94 V0. The cut-out dimensions are 214 mm x 90 mm, and the external dimensions are 214 mm x 88 mm. The cable entry can be installed on cable gland plate adapter or directly on enclosure. Fixing elements are delivered with the product.
QTY
  • Product Description
  • Features
  • Specifications
Cable entry membrane type FL21 for Spatial S3D, Spatial CRN and Spatial SF enclosures. The 27 entrances allow multi-purpose use with cables ranging from 5 mm to 26 mm in diameter. The 27 entry diameter are the following: 4 entry ranging from 5 mm to 7 mm, 4 entry ranging from 8 mm to 12 mm, 13 entry ranging from 10 mm to 14 mm, 4 entry ranging from 14 mm to 20 mm and 2 entry ranging from 20 mm to 26 mm. IP66 protection against water and dust is maintained according to IEC 60529. The product can be used in a temperature range from -40 ºC to +100 ºC and have a flame resistance of 650 ºC according to UL 94 V0. The cut-out dimensions are 214 mm x 90 mm, and the external dimensions are 214 mm x 88 mm. The cable entry can be installed on cable gland plate adapter or directly on enclosure. Fixing elements are delivered with the product.
  • Features
    • Can be installed on a gland plate adapter or directly on the enclosure
    • Fast and easy cable installation
    • Compatibility with a wide range of cable diameters
    • Protection against dust and water (IP66)
    • High fire resistance: up to 1200 F
    • Wide usage temperature range: -40 ºC to +100 ºC
  • Physical Attributes
    • Color : Gray RAL 7035)
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB, SI
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Device Composition : 1 membrane, 1 fixing elements
    • Environmental Characteristic : oil resistant UL 157 FIMKO, UV resistant, weatherproof, fire resistance UL 94 V0
    • Cable Entry Number : 4 x 5-7 mm, 4 x 8-12 mm, 4 x 14-20 mm, 12 x 10-14 mm, 1 x 20-26 mm, 25
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-07-09
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : No
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Application : multi-purpose
    • Energy Efficiency Optimized : False
    • Fixing Mode : by fixing element
    • Flame Retardance : V0 conforming to UL 94
    • Material : TPE (thermoplastic elastomer)
    • Mounting Support : cable gland plate
    • Package Weight Lbs : 302.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : cable entry membrane
    • Quantity Per Set : set of 1
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Accessory Separate Part Category2 : cable management accessory
    • Medium Desc : Cable entry membrane, PanelSeT, PanelSeT, type FL21 with 25 entrances IP66
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Pep Code : ENVPEP1001004EN
    • Global Commercial Status : Commercialised
  • Environment Attributes Main
    • Take Back : No, Nej
    • China ROHS Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    • EU ROHS Directive : Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Reach Free SHVC : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Ambient Air Temperature For Operation : -40-100 °C
    • Environmental Disclosure : ENVPEP1001004EN
    • IP Degree Of Protection : IP66
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP1001004EN
  • General Attributes
    • Product Or Component Type : cable entry membrane
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Width : 7.64 in
