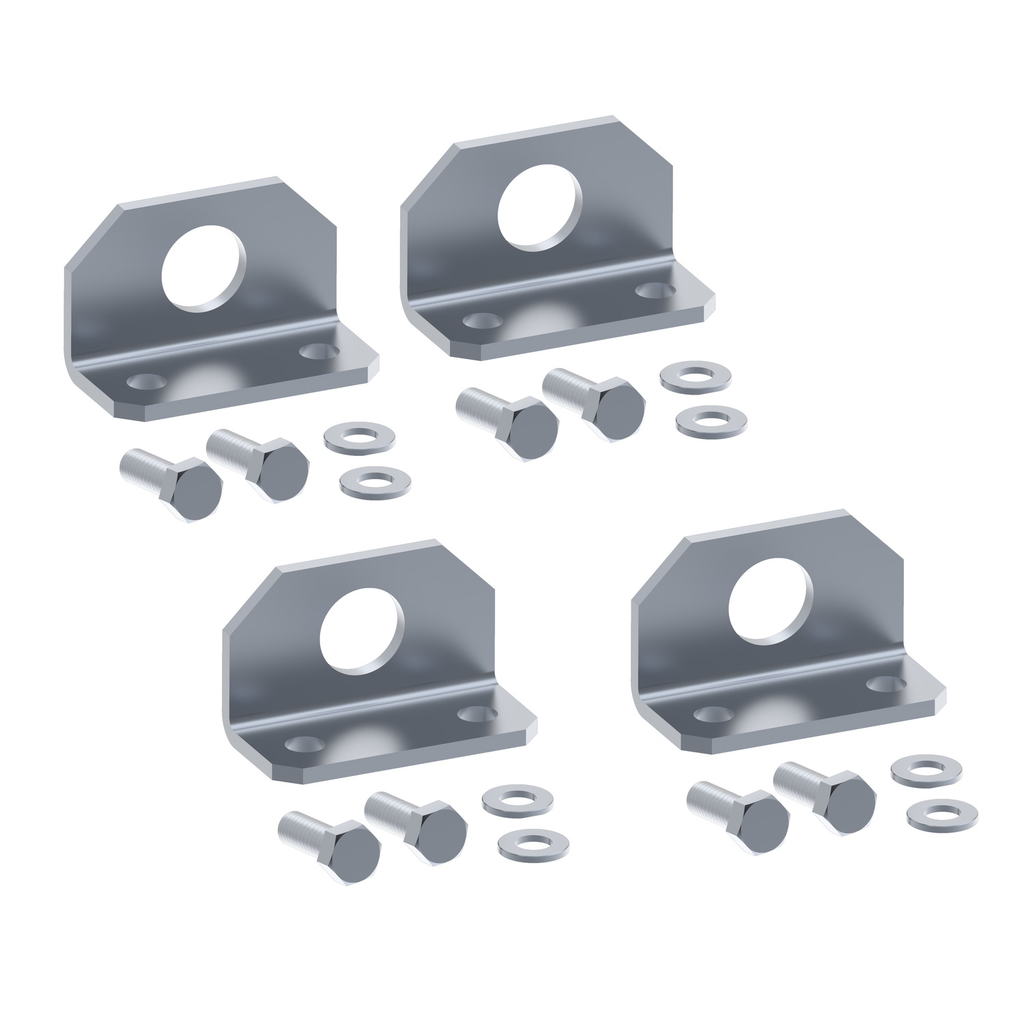

Set of 4 lifting brackets for Spacial SF/SFHD/SFM, Prisma PH. H is60 x W is100 x D is49 mm. Mounting on enclosure top. Support directly in the axis of the uprights. Permanent permissible load 500 kg. Fixing by screws type M12. Steel made, zinc coated surface finish.

• Prop 65
• No CA Prop 65 warning needed

• Important Information Attributes
• Persona Type Ids : LC, OM, OM8, PB, SI
• Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Device Composition : 4 bracket, fixing elements
• Carbon Footprint Of The Distribution Phase A4 : 0.37152169, 0.4 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 5 kg CO2 eq., 4.537135876
• Carbon Footprint Of The Installation Phase A5 : 0.427946607, 0.4 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 8 kg CO2 eq., 8.386078638
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• Return Indicator : Y
• Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1916
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Product Kit Identifier : N
• Device Application : multi-purpose
• Diameter : 32 mm
• Energy Efficiency Optimized : False
• Fixing Mode : by screws M12
• Material : steel
• Mounting Location : enclosure top
• Mounting Support : directly in the axis of the uprights
• Permanent Permissible Load : 500 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : lifting bracket
• Quantity Per Set : set of 1
• Range : PanelSeT
• Returnability : Yes
• Software Version : v5.9.4
• Surface Finish : zinc coated
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 14 kg CO2 eq.
• Pop Directive : No POPs
• Database Version : 2022-01
• Data Source : extrapolated product
• Height Nominal : 60 mm
• Height Useful : 60 mm
• Width Nominal : 100 mm
• Width Real : 100 mm
• Accessory / Separate Part Category : lifting accessory
• Nbr. Of Units In Pkg. : 1
• Customs Code : 7326908688
• Silicone Free : No
• Warranty In Months : 18
• Functional Unit Description : Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 20
• Recyclability Potential In % : 98
• Environment Attributes Main
• China Rohs Regulation : Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Silicon Free : No
• Carbon Footprint : 13.72268281
• Environmental Disclosure : ENVPEP1109023EN
• Eu Rohs Directive : Compliant
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP1109023EN
• Pep Verification Date : 2023-03-30
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : lifting bracket
• ETIM
• ETIM 8 : EC002621
• ETIM 9 : EC002621
• ETIM 10 : EC002621
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Spain, United States
• Height : 2.36 in
• Width : 3.94 in
• Weight : 1930 g
• Depth : 49 mm
