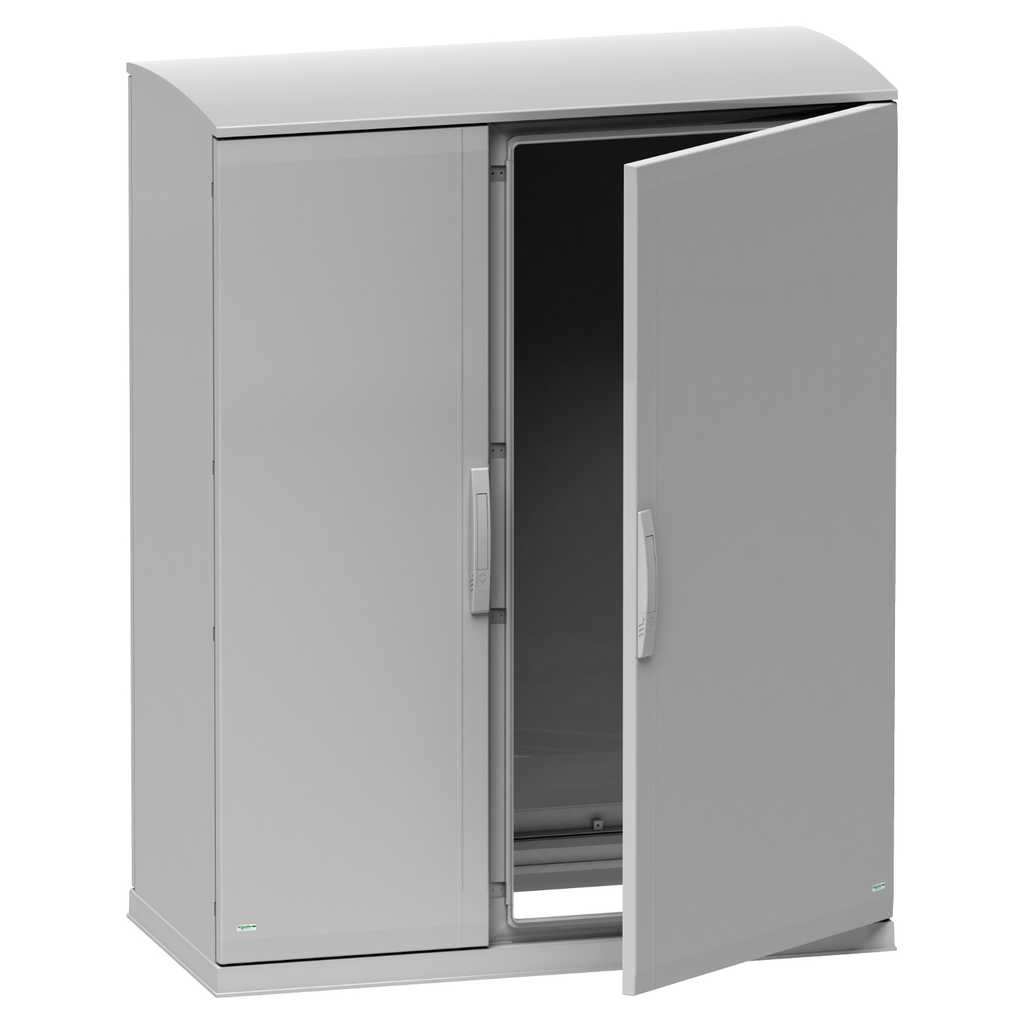

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1000x320mm, IP44, IK10

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1000x320mm, IP44, IK10

SQDNSYPLAZT10103G NSYPLAZT10103G 3606480775956
1347.38 / EA
http://schema.org/OutOfStock
  • Body Type: Open Top And Bottom Part Assembled With Side Parts
  • Door Type: Solid Front, Solid
  • Enclosure Height: 1000 mm
  • Enclosure Width: 1000 mm
  • Lock Type: 5 mm
  • Material: Fiberglass, Polyester
  • Warranty Length: 18 mth
This PLAZT version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications. It measures 1000mm in height, 1000mm in width, and 320mm in depth, and is made of polyester reinforced with fiberglass for durability and resistance to harsh environments, both indoor and outdoor. The enclosure is available in grey (RAL 7035) and consists of two side parts, two plain front doors, two rear panels, one canopy, and one plinth. The doors open up to 180° from either the right or left side, providing easy access to the equipment inside. The doors are fitted with a four-point lock and a handle with a 5mm double-bar insert. The doors, rear panels, and canopy can be removed for maintenance purposes. The enclosure offers robust protection against various hazards, including fire, impact, dust, and water. It can withstand fire up to 960°C in accordance with the IEC 62208 standard. It can withstand fire up to 960°C in accordance with the IEC 62208 standard. Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions. It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance.
