Body Type:
Sealed Top And Bottom Part Assembled With Side Parts
-
Door Type:
Transparent Front, Transparent
-
Enclosure Height:
2000 mm
-
Enclosure Width:
750 mm
-
Lock Type:
5 mm
-
Material:
Fiberglass, Polyester
-
Warranty Length:
18 mth

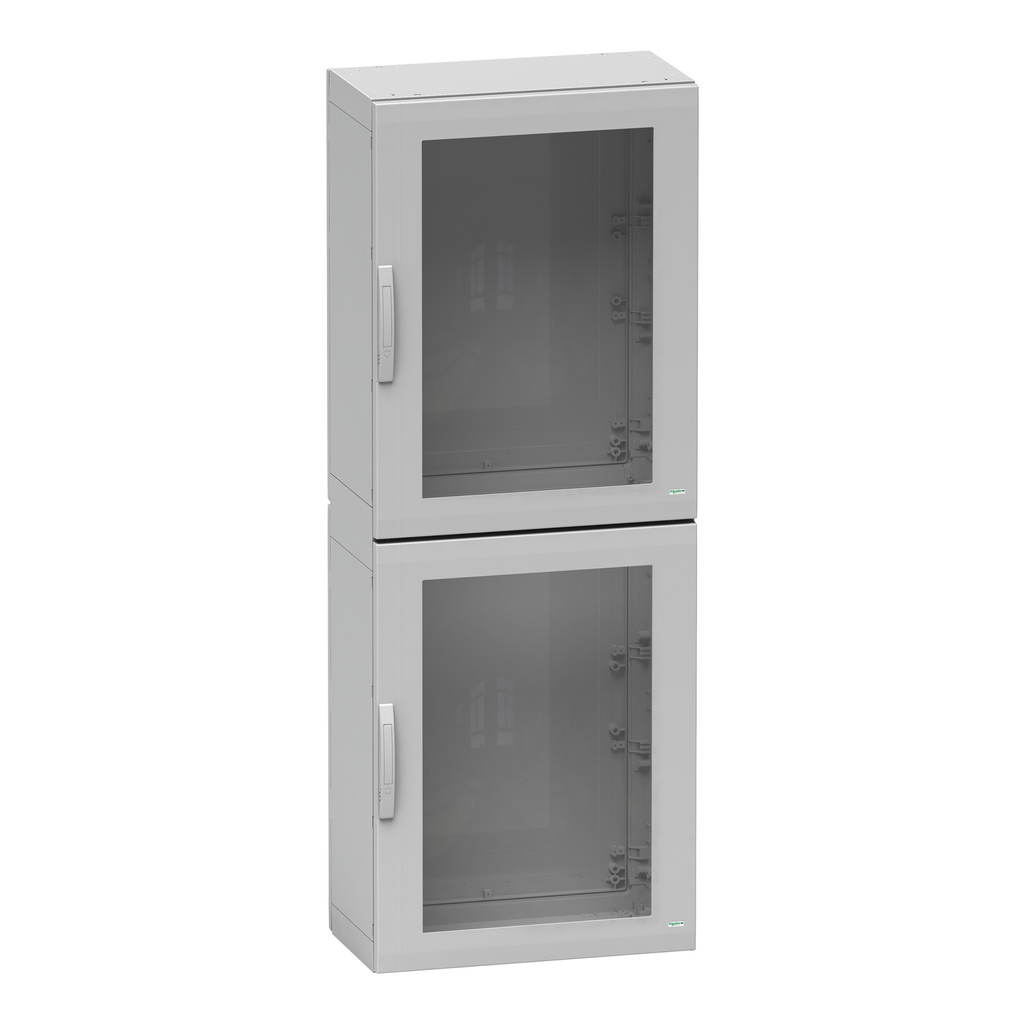

This PLA is a multi-purpose, floor-standing unit that is suitable for various applications. The enclosure has nominal dimensions of 2000mm in height, 750mm in width, and 620mm in depth and is made of polyester reinforced with fiberglass, providing durability and resistance to harsh environments. It is available in grey (RAL 7035) and comes with two side parts, two transparent front doors, and two rear panels. The doors can open up to 120° from both the right and left sides, and feature a four-point lock with a 5mm double-bar insert. The doors and rear panels are removable for maintenance purposes. The enclosure offers robust protection against a wide variety of hazards, including fire, impacts, dust, and water. It can withstand fire up to 960°C in accordance with the IEC 62208 standard. It is certified by DNV Marine, UL/cUL listed, and Veritas, and has an IK08 rating (IEC 62262) for its glazed door, indicating high resistance to impacts. It is certified by DNV Marine, UL/cUL listed, and Veritas, and has an IK08 rating (IEC 62262) for its glazed door, indicating high resistance to impacts. Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions. It is UL 508A certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance.
